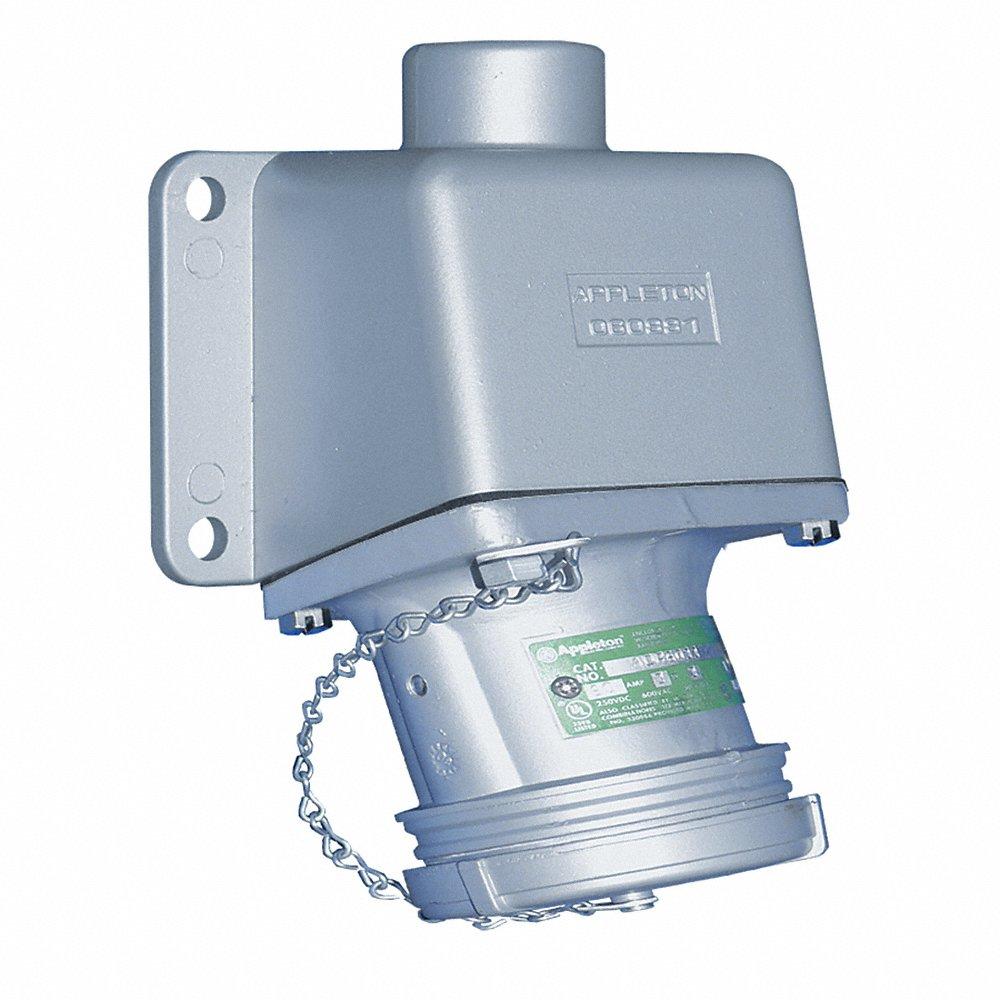

APPLETON ELECTRIC ADRE3044-75 Receptacle, 30A, 120/240/480/600V AC, 20hp, Style 1 Grounding, Gray
Item: AA4DKQModel: ADRE3044-75Cross Ref: 12G142
7 In Stock
Ships within 2 days via
10.00% off
€708.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hazardous Area Receptacle |
| Cap Type | Screw On Cap |
| Connection Orientation | 15° Elbow |
| Contact Material | Copper |
| Current Rating | 30A |
| Face Diameter | 3.38" |
| Features | Locking Collar To Secure 60A Or 100A Plug/Connector Connections, Plugs May Be Withdrawn In An Emergency Under Full Rated Loads Without Separate Disconnect Switch |
| Flange Height | 3.38" |
| Flange Type | Flanged |
| Flange Width | 3.38" |
| For Maximum Cable Diameter | 1.125" |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Horsepower Rating | 20 hp |
| Housing Color | Gray |
| Housing Material | Copper Free Aluminum |
| Includes Mounting Hardware | Yes |
| Insulation Material | Fiberglass Reinforced Polyester |
| Ip Rating | Not Rated |
| Market | Industrial |
| Material | Copper Free Aluminum |
| Maximum Operating Temperature | 104°F |
| Maximum Wire Size | 6 AWG |
| Minimum Operating Temperature | -13°F |
| Minimum Wire Size | 10 AWG |
| Mounting Box Entry | Dead End, Feed Through |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Nema Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Gangs | 1 |
| Number Of Poles | 4 |
| Number Of Wires | 4 |
| Phase | Single |
| Power Indicating Light | No |
| Product Datasheet | appleton-electric-adr3023rs.pdf |
| Resistance Properties | Corrosion Resistant |
| Reverse Service | Yes |
| Shrouded | Yes |
| Ul 94 Flammability Rating | Not Rated |
| Voltage | 600V AC |
| Voltage Rating | 120/240/480/600V AC |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.8 |
| Ship height (cm) | 10.67 |
| Ship length (cm) | 13.72 |
| Ship width (cm) | 12.7 |
| HS code | 8536908085 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Number Of Wires | Number Of Poles | Voltage | Amps | Current Rating | Phase | Hp | Hub Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| DBR3034HFB50 | 3 | 4 | 600V AC | - | 30A | Three | - | - | €11,602.17 | |
| DBR6023EH100 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.47 | |
| DBR6023EH50 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €9,494.66 | |
| DBR6023EH70 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.47 | |
| DBR6023EH90 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.45 | |
| DBR6023FB100 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,491.74 | |
| DBR6023FB50 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €9,823.21 |
