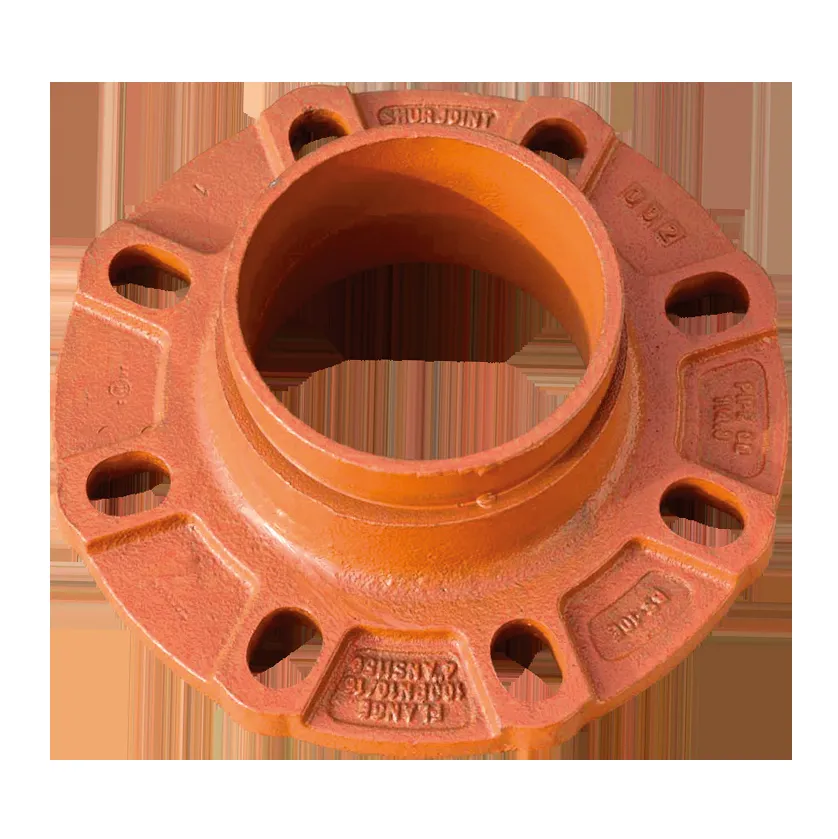

APOLLO VALVES SJT71806P VSH Shurjoint universal flange nipple M-FL 6 Inch orange
Get it by Friday, Dec 19
€380.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Capped | No |
| Color | Orange |
| Connection Type | Flange |
| D-2 | 285 |
| D1 | 6.63 |
| D2 | 10.71 |
| D2-2 | 22 |
| Dimensions | 2.95" x 10.71" x 10.71" |
| Eccentric | No |
| Finish | Varnished |
| Fitting Connection Type | Groove |
| Flange Compression Class | 16 Bar |
| High Tensile Strength | Yes |
| Housing Construction | 1-Part |
| K2 | 240 |
| Length | 75 mm |
| Length Of Connection 1 | 2.32" |
| Length Of Connection 2 | 0.63" |
| Material | Cast Iron |
| Max. Operating Pressure | 232 psi |
| N2 | 8 |
| Outer Pipe Dia. Connection 1 | 6.63" |
| Outer Pipe Dia. Connection 2 | 10.71" |
| Pressure Rating | 16 Bar |
| Reducing | No |
| Series | SHURJOINT Series |
| Shape | Straight |
| Size | 6" |
| Surface Protection | Lacquered |
| System Specific | No |
| With Buffer Stud | No |
| With Connection Indicator | No |
| With De-aerator | No |
| With Drain Valve | No |
| With Sealing Rings/gaskets | No |
Shipping Info:
| Ship weight (kg) | 5.67 |
| Ship height (cm) | 27.2 |
| Ship length (cm) | 7.49 |
| Ship width (cm) | 27.2 |
| Country of Origin | TW |
Product Variants
| Model | Color | Size | Finish | Material | Connection Type | Max. Operating Pressure | Shape | Pressure Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SJT71802P | Orange | 2" | Varnished | Cast Iron | Flange | 232 psi | Straight | 16 Bar | €150.56 | |
| SJT718025P | Orange | 2 1/2" | Varnished | Cast Iron | Flange | 232 psi | Straight | 16 Bar | €199.31 | |
| SJT71803P | Orange | 3" | Varnished | Cast Iron | Flange | 232 psi | Straight | 16 Bar | €192.86 | |

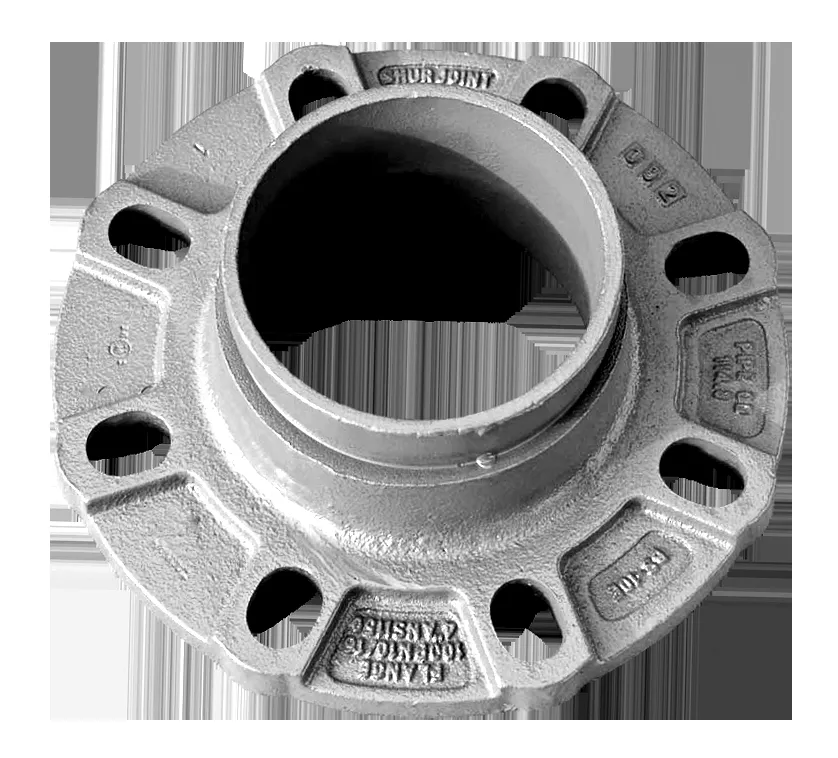

| SJT71806G | Silver | 6" | Galvanized | Cast Iron | Flange | 232 psi | Straight | 16 Bar | €456.24 | |
| SJT71804G | Silver | 4" | Galvanized | Cast Iron | Flange | 232 psi | Straight | 16 Bar | €297.91 | |
| SJT71805P | Orange | 5" | Varnished | Cast Iron | Flange | 232 psi | Straight | 16 Bar | €306.45 | |
| SJT71808P | Orange | 8" | Varnished | Cast Iron | Flange | 232 psi | Straight | 16 Bar | €502.88 |
