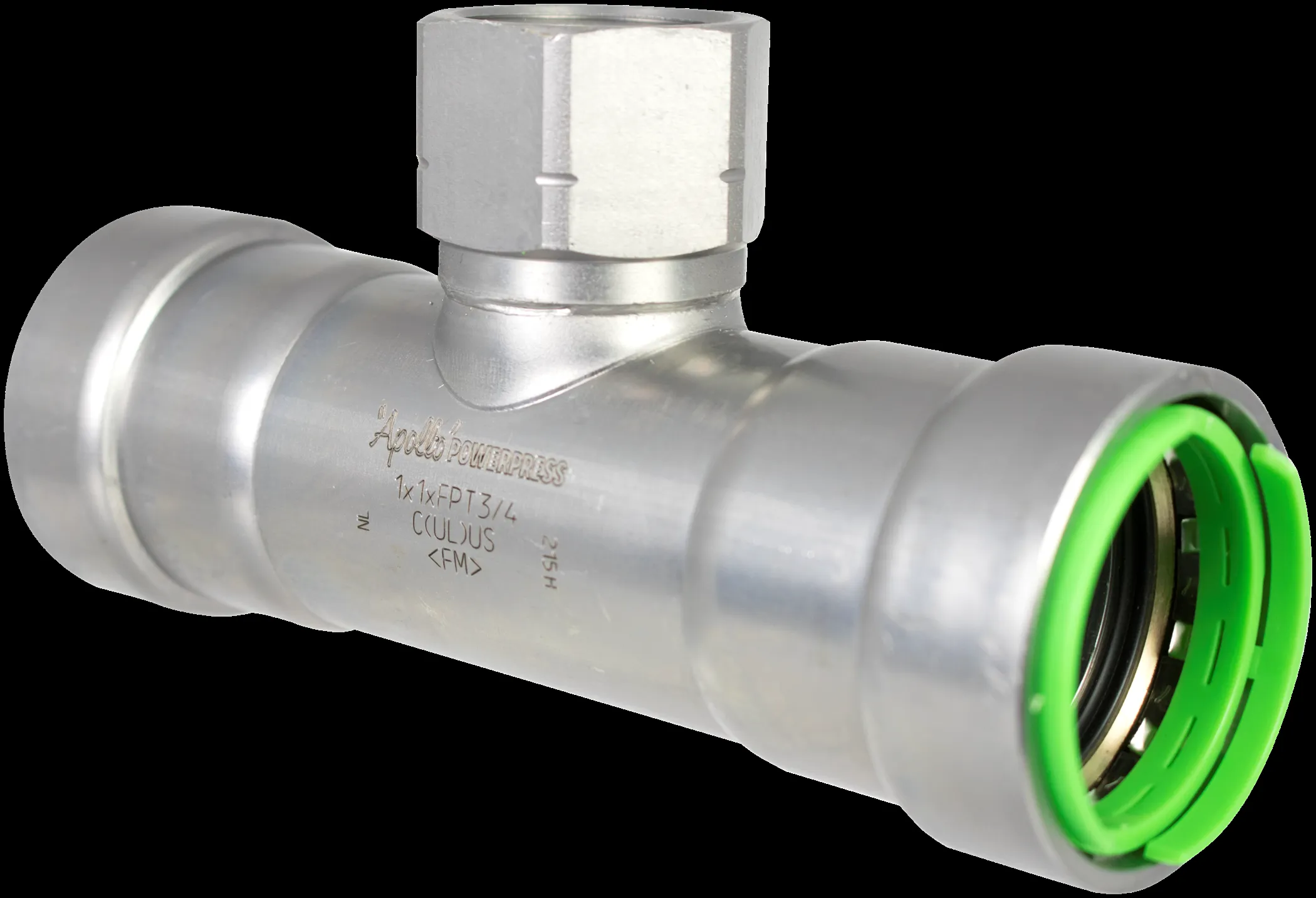

APOLLO VALVES PWR7480583 PowerPress threaded T Pcs FFF 1 Inch Size, x1 Inch Size, xFPT3/4 Inch Size
Get it by Thursday, Dec 18
€100.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tee Handle |
| Bend Angle | 90° |
| Capped | Yes |
| Color | Gray |
| Connection Type | Press x FNPT x Press |
| Contour Code | DW |
| D1 | 1.32 |
| D2 | 1.05 |
| D3 | 1.32 |
| Dimensions | 2.63" x 5 1/5" x 1.81" |
| Finish | Zinc Nickel Plated |
| Flange Compression Class | 16 Bar |
| Grade | Grade St 35 |
| High Tensile Strength | Yes |
| Length Of Connection 1 | 2.6" |
| Length Of Connection 2 | 1.87" |
| Length Of Connection 3 | 2.6" |
| Material | Steel |
| Max. Medium Temp. | 302°F |
| Max. Operating Pressure | 232 psi |
| Medium Temp. (continuous) | -40°F to +302°F |
| Min. Medium Temp. | -40°F |
| Model | T-Piece |
| Multi-part | No |
| Outer Pipe Dia. Connection 1 | 1.31" |
| Outer Pipe Dia. Connection 2 | 1.05" |
| Outer Pipe Dia. Connection 3 | 1.31" |
| Peak Medium Temp. | 320°F |
| Product Datasheet | apollo-valves-pwr7480583.pdf |
| Reducing | Yes |
| Seal Material | EPDM |
| Series | POWERPRESS Series |
| Shape | 90° T-Piece Reducer |
| Size | 1" x 1" x 3/4" |
| Slw2 | 1.26 |
| Surface Protection | Zinc Nickel Plated |
| System Specific | Yes |
| Wall Thickness, Connection 1 | 2.9 mm |
| Wall Thickness, Connection 3 | 2.9 mm |
| With Buffer Stud | Yes |
| With Connection Indicator | Yes |
| With De-aerator | No |
| With Drain Valve | No |
| With Sealing Rings/gaskets | No |
| With Thermal Insulation | No |
| Working Length Connection 1 | 1.18" |
| Working Length Connection 2 | 1.22" |
| Working Length Connection 3 | 1.18" |
| Z1 | 1.18 |
| Z2 | 1.22 |
| Z3 | 1.18 |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 4.6 |
| Ship length (cm) | 6.68 |
| Ship width (cm) | 13.21 |
| Country of Origin | NL |
Documentation:
Product Variants
| Model | Size | Connection Type | Shape | Seal Material | Material | Color | Finish | Bend Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PWR7480396 | 1 1/4" | Press | 90° T-Piece | EPDM | Steel | Gray | Zinc Nickel Plated | 90° | €153.65 | |
| PWR7480374 | 3/4" | Press | 90° T-Piece | EPDM | Steel | Gray | Zinc Nickel Plated | 90° | €76.18 | |
| PWR7480385 | 1" | Press | 90° T-Piece | EPDM | Steel | Gray | Zinc Nickel Plated | 90° | €90.30 | |
| PWR7480407 | 1 1/2" | Press | 90° T-Piece | EPDM | Steel | Gray | Zinc Nickel Plated | 90° | €176.74 | |
| PWR7480418 | 2" | Press | 90° T-Piece | EPDM | Steel | Gray | Zinc Nickel Plated | 90° | €291.35 | |
| PWR7480429 | 3/4" x 3/4" x 1/2" | Press | 90° T-Piece Reducer | EPDM | Steel | Gray | Zinc Nickel Plated | 90° | €83.23 | |
| PWR7480431 | 1" x 1" x 1/2" | Press | 90° T-Piece Reducer | EPDM | Steel | Gray | Zinc Nickel Plated | 90° | €101.96 |
