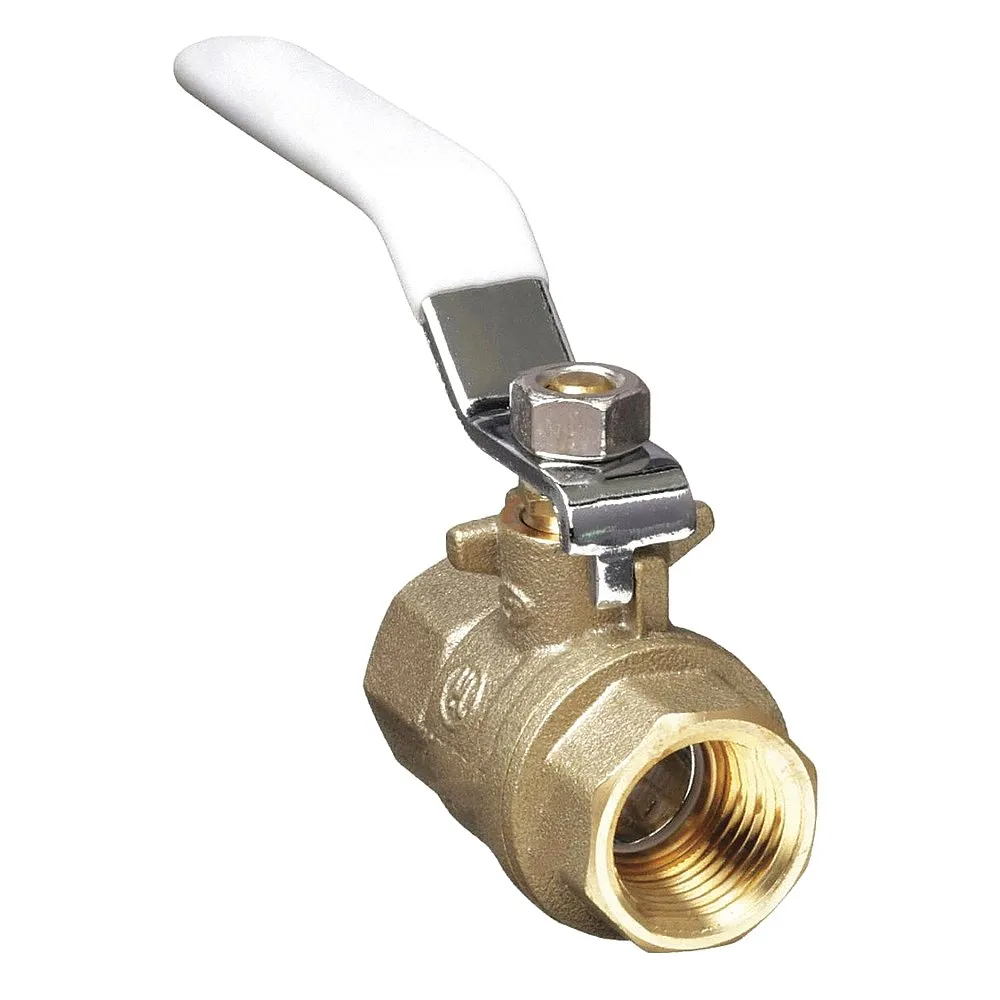

APOLLO VALVES 70LF10410 Ball Valve Bronze Inline 3/4 Inch Pipe
Item: AG2BNTModel: 70LF10410Cross Ref: 31EE52
7 In Stock
Ships within 2 days via
5.00% off
€95.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Lead Free Bronze |
| Body Style | Inline |
| Bore Type | Reduced Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume(cv) | 0.01 |
| Color | Yellow, Bronze |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 3/4" |
| Connection Size-side 2 | 3/4" |
| Connection Type | FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| D1 | 1.05 , 1.56 |
| D2 | 1.05 |
| Dimensions | 6 1/2" x 1 1/2" x 2 3/4" |
| E | 0.83 |
| Finish | None |
| For Media | Steam, Water |
| Grease-free | No |
| Handgrip Length | 0.67" |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Length | 4.87" |
| Handle Material | Stainless Steel |
| Handle Type | Lever |
| Handle/hand Wheel Height | 0.68" |
| Housing Construction | 2-Part |
| Lead Free | Yes |
| Length Of Connection 1 | 1.47" |
| Length Of Connection 2 | 1.49" |
| M1 | 0.67 |
| M2 | 4.76 |
| Max. Operating Pressure | 600 psi |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Steam Pressure | 150 psi |
| Media Temp. | -20°F to +350°F |
| Medically Clean | No |
| Nominal Valve Size | 3/4" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Outside Pipe Dia. Connection 1 | 1.05" |
| Outside Pipe Dia. Connection 2 | 1.05" |
| Overall Length | 3" |
| Product Datasheet | apollo-valves-70lf10001.pdf |
| Seal Material | RPTFE |
| Seat Material | PTFE |
| Series | 70 Series Ball Valves |
| Shape | Straight |
| Size | 3/4" |
| Spindle Material | Brass |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. | -20°F to +450°F |
| U | 0.87 |
| V | 1.4 |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 70 Series |
| Valve Ways | 2-Way |
| With Filter | No |
| With Thermometer | No |
| Working Length Connection 1 | 0.92" |
| Working Length Connection 2 | 0.94" |
| Y | 0.68 |
| Z1 | 0.92 |
| Z2 | 0.94 |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 3.81 |
| HS code | 8481801085 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Size | Color | Spindle Material | Outside Pipe Dia. Connection 1 | Outside Pipe Dia. Connection 2 | Ball Material | Dimensions | D2 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
70LF10001 | 3" | Yellow, Bronze | Stainless steel | 3.5" | 3.5" | - | 11 1/4" x 4 3/4" x 6 1/4" | 3.5 | €1,251.18 | |
 |
70LF10901 | 2 1/2" | Yellow, Bronze | Brass | 2.88" | 2.88" | - | 11" x 4 1/4" x 5 3/4" | 2.88 | €1,060.59 | |
 |
70LF10A01 | 4" | Yellow, Bronze | Brass | 4.5" | 4.5" | - | 13 3/4" x 5 3/4" x 8 1/4" | 4.5 | €1,739.51 | |
 |
70LF10101 | 1/4" | Yellow, Bronze | Brass | 0.54" | 0.54" | - | 5" x 1" x 2 1/4" | 0.54 | €57.32 | |
|
70LF10201 | 3/8" | Yellow, Bronze | Brass | 0.68" | 0.68" | - | 5" x 1" x 2 1/4" | 0.68 | €55.99 | |
|
70LF10301 | 1/2" | Yellow, Bronze | Brass | 0.84" | 0.84" | - | 5" x 1 1/4" x 2 1/4" | 0.84 | €55.99 | |
|
70LF10401 | 3/4" | Yellow, Bronze | Brass | 1.05" | 1.05" | - | 6 1/4" x 1 1/2" x 2 3/4" | 1.05 | €93.29 |
