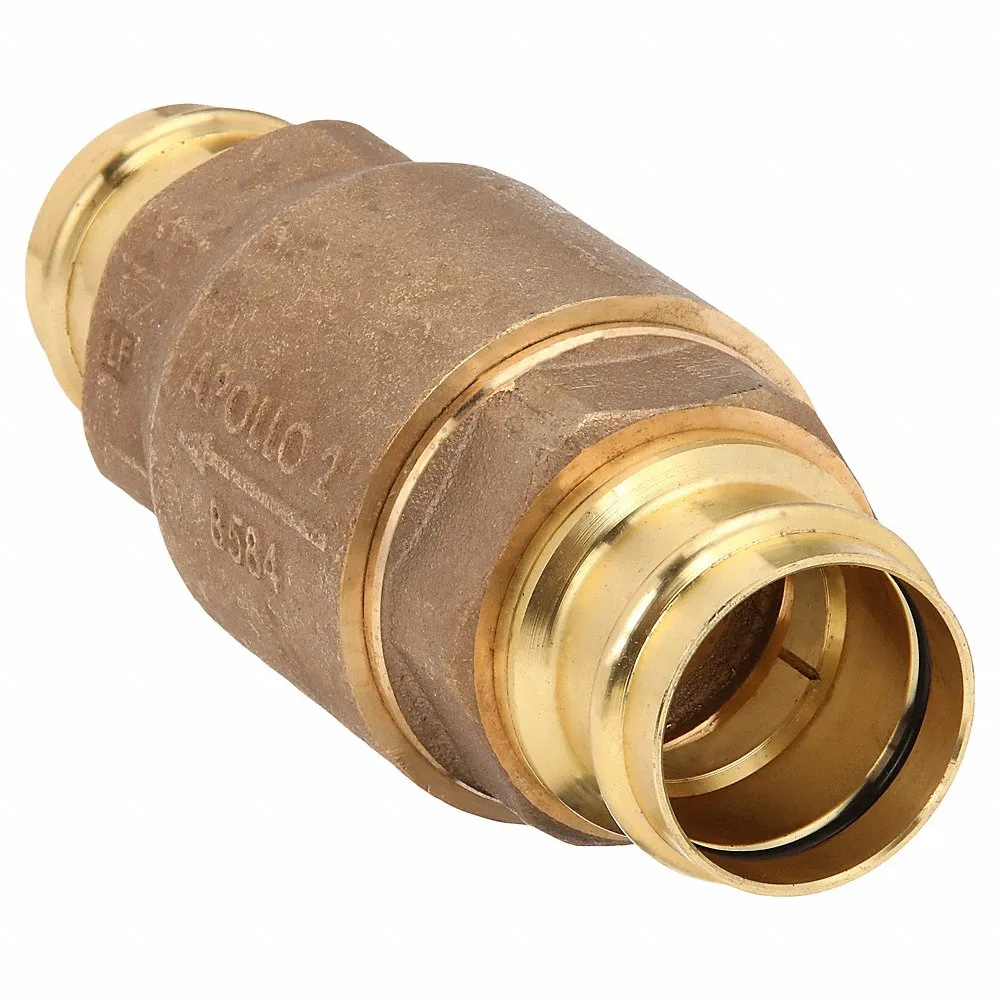

APOLLO VALVES 61LF10801PR Ball Cone Check Valve, Single Flow, Inline Ball Cone, Bronze, 2 in Pipe/Tube Size, EPDM
Item: AC6WNPModel: 61LF10801PRCross Ref: 36N623
7 In Stock
Ships within 2 days via
10.00% off
€606.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Cone Check Valve |
| 3-a Compliance | Not Rated |
| Ball Material | RPTFE |
| Body Material | Bronze |
| Check Mechanism | Ball |
| Color | Bronze |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | Press |
| Connection Type - Side 1 | Press |
| Connection Type - Side 2 | Press |
| Contour Code | V |
| Cracking Pressure | 0.5 psi |
| D1 | 2.13 |
| D2 | 2.13 |
| Dimensions | 9 1/4" x 3 3/4" x 3 3/4" |
| Finish | None |
| Flow Coefficient | 81 |
| Flow Rate | 81 GPM |
| For Media | Steam, Water |
| Grade | Grade 316 |
| Height | 95.25 mm |
| Includes Counterweight | No Counterweight |
| Lead Free | Yes |
| Length | 9.703" |
| Length Of Connection 1 | 4.82" |
| Length Of Connection 2 | 4.82" |
| Material | Lead Free Bronze |
| Max. Pressure (cwp) | 300 psi |
| Max. Steam Pressure | 15 psi |
| Max. Temp. | 250°F |
| Max. Water Pressure | 250 psi |
| Media Temp. Range | 0°F to 250°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Temperature - Maximum | 250°F |
| Operating Temperature - Minimum | 0°F |
| Outer Pipe Dia. All Connections | 2.13" |
| Overall Length | 9.7031" |
| Product Datasheet | apollo-valves-61lf10301pr.pdf |
| Seal Material | EPDM |
| Seat Material | RPTFE |
| Series | 61 Series Check Valves |
| Silent Check | Standard |
| Size | 2" |
| Spring Material | Stainless Steel |
| Suitable For Central Heating Water | No |
| Surface Protection | None |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | 61 |
| Width | 9.688" |
| Working Length Connection 1 | 3.26" |
| Working Length Connection 2 | 3.26" |
| Z1 | 3.26 |
| Z2 | 3.26 |
Shipping Info:
| Ship weight (kg) | 3.39 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 23.5 |
| Ship width (cm) | 9.53 |
| HS code | 8481301090 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Flow Rate | Height | Body Material | Connection Type | Max. Temp. | Cracking Pressure | Max. Water Pressure | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
61LF10301PR | 1.4 GPM | 31.75 mm | Bronze | Press | 250°F | 0.5 psi | 250 psi | EPDM | €114.64 | |
 |

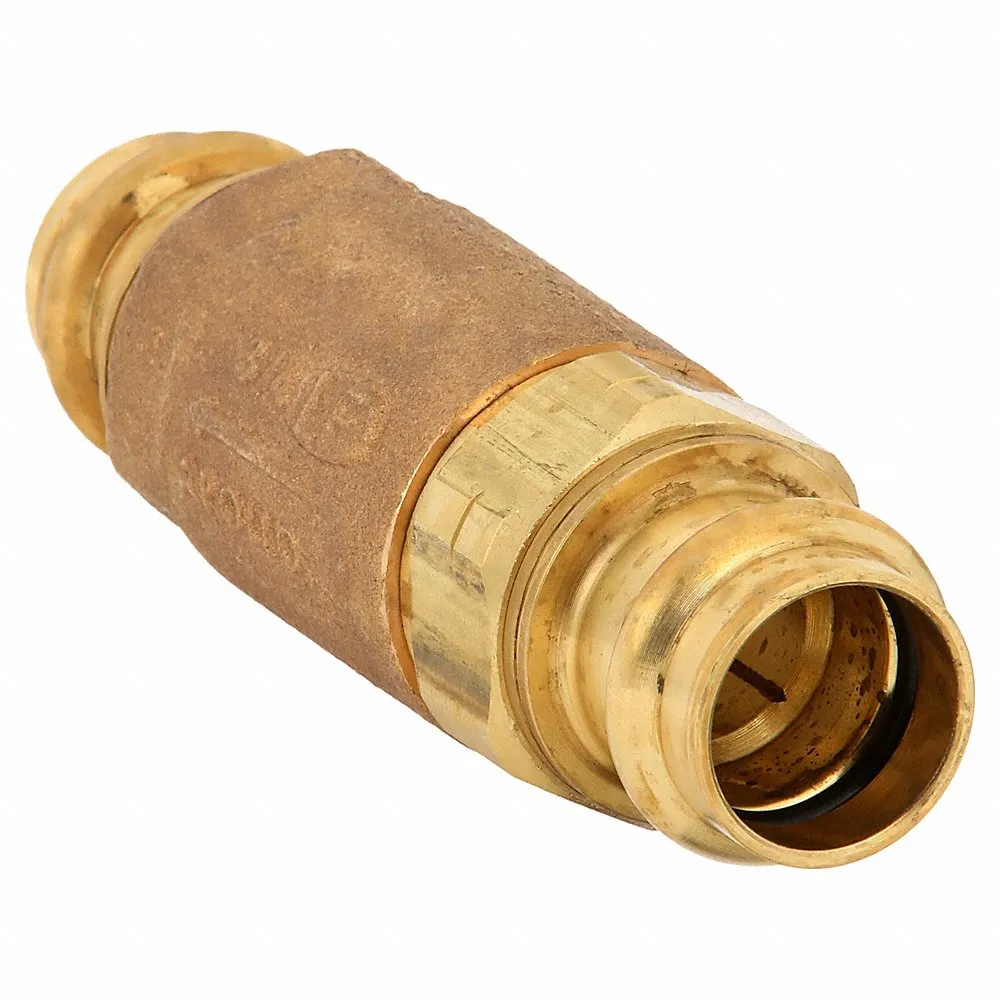

61LF10401PR | 3.5 GPM | 38.1 mm | Bronze | Press | 250°F | 0.5 psi | 250 psi | EPDM | €150.82 | |
 |

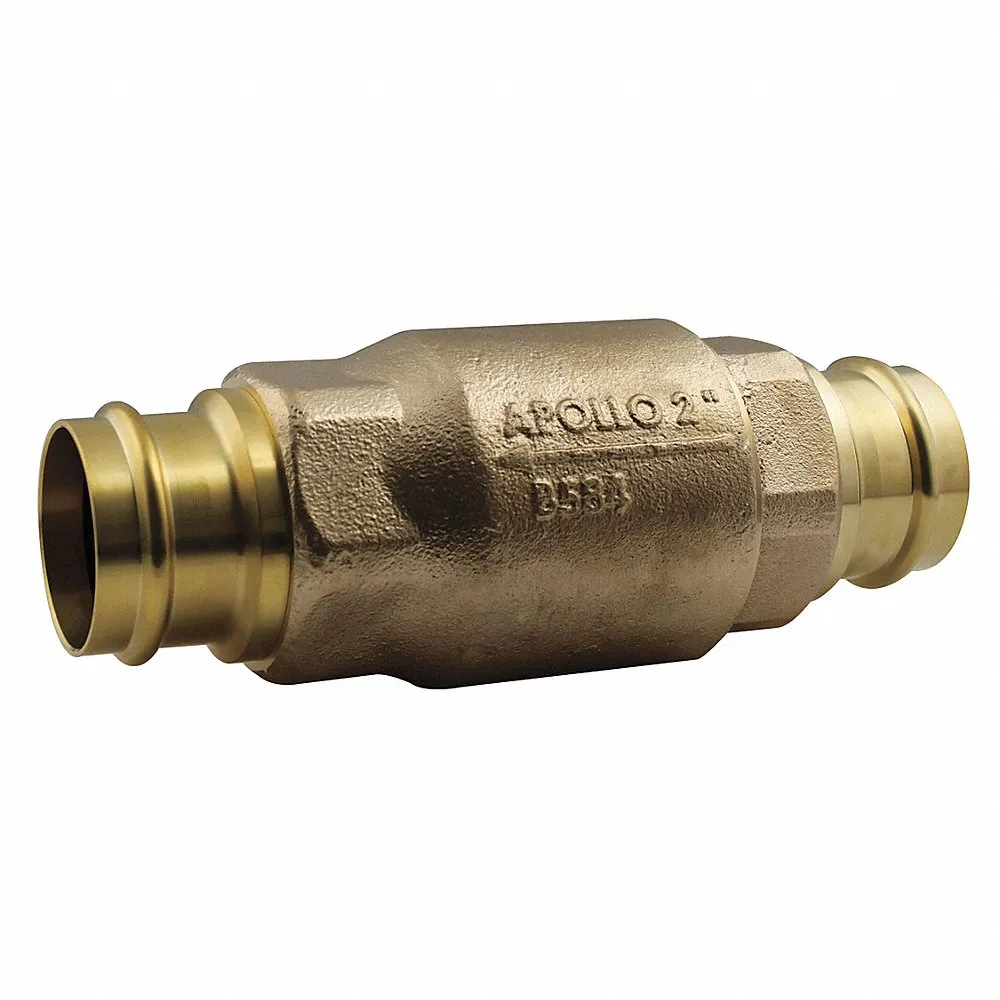

61LF10501PR | 6 GPM | 50.8 mm | Bronze | Press | 250°F | 0.5 psi | 250 psi | EPDM | €203.47 | |
|
61LF10601PR | 44 GPM | 63.5 mm | Bronze | Press | 250°F | 0.5 psi | 250 psi | EPDM | €309.80 | |
|
61LF10701PR | 65 GPM | 76.2 mm | Bronze | Press | 250°F | 0.5 psi | 250 psi | EPDM | €456.28 |
