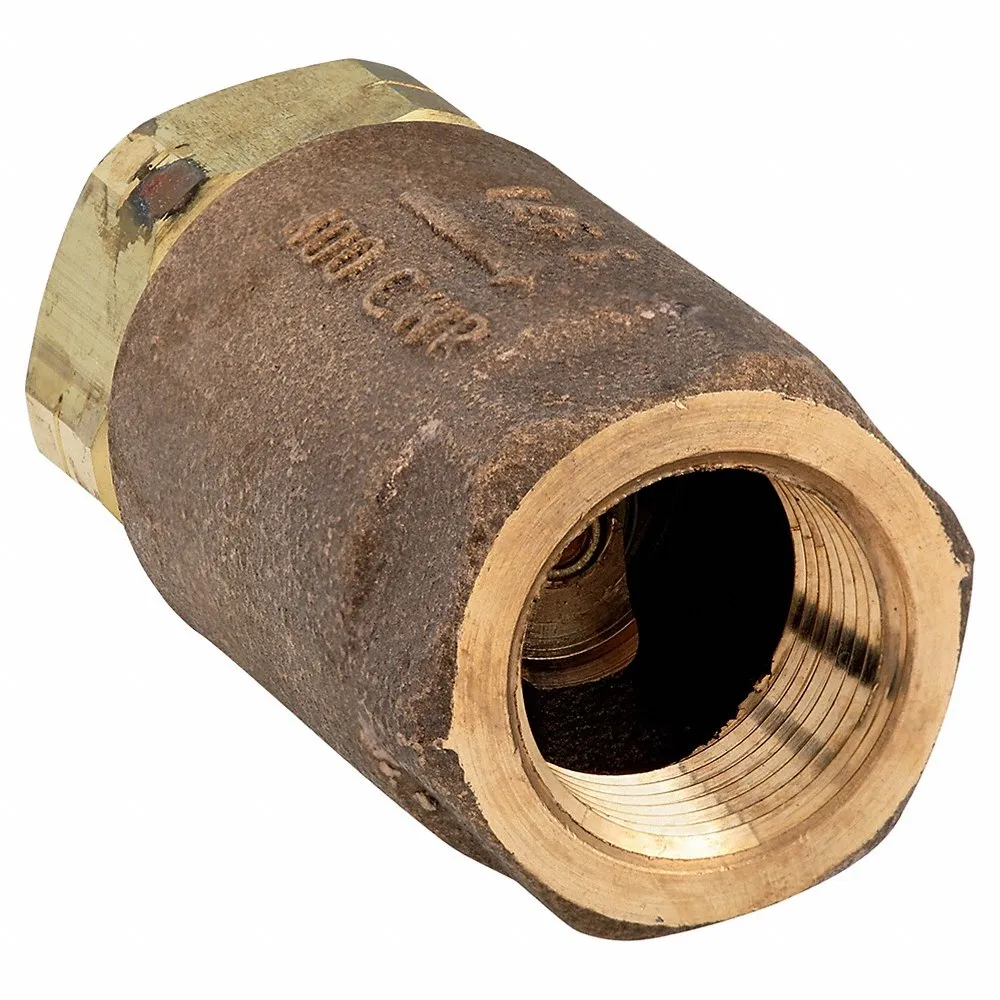

APOLLO VALVES 61LF10401 Bronze Ball-Cone In-Line Check Valve with Standard Configuration 3/4 Inch Size, 2 x FNPT, 3.00 x 1.50 x 1.50 Inch Size
Item: AD3MARModel: 61LF10401Cross Ref: 40D881
7 In Stock
Ships within 2 days via
5.00% off
€137.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Check Valve |
| 3-a Certified | Not Rated |
| Ball Material | RPTFE |
| Body Material | Bronze |
| Check Mechanism | Ball |
| Color | Bronze |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 3/4" |
| Connection Size-side 2 | 3/4" |
| Connection Type | FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| Cracking Pressure | 0.5 psi |
| Dimensions | 3" x 1 1/2" x 1 1/2" |
| Flow Coefficient Cv | 3.53 |
| Flow Rate | 3.53 GPM |
| For Media | Steam, Water |
| Height | 38.1 mm |
| Hex Size | 1 1/2" |
| Included Counterweight | No Counterweight |
| Length | 2 7/8" |
| Max. Operating Temp. | 350°F |
| Max. Pressure (cwp) | 400 psi |
| Max. Steam Pressure | 125 psi |
| Max. Temp. | 350°F |
| Max. Water Pressure | 400 psi |
| Media Temp. | 33°F to 350°F |
| Min. Operating Temp. | 33°F |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal, Vertical |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Height | 1 1/2" |
| Overall Length | 2.875" |
| Product Datasheet | apollo-valves-61lf10401.pdf |
| Seal Material | EPDM |
| Seat Material | Glass Filled Polypropylene |
| Series | 61 Series Check Valves |
| Silent Check | Standard |
| Size | 3/4" |
| Spring Material | Stainless Steel |
| Suitable For Central Heating Water | No |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Inline |
| Valve Series | 61 |
| Valve Ways | 2-Way |
| Width | 1 1/2" |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 3.81 |
| HS code | 8481301010 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Overall Height | Flow Rate | Hex Size | Height | Min. Operating Temp. | Body Material | Connection Type | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
61LF10101 | 1 3/25" | 0.85 GPM | 1 1/8" | 31.75 mm | 33°F | Bronze | FNPT | 350°F | €100.30 | |
 |

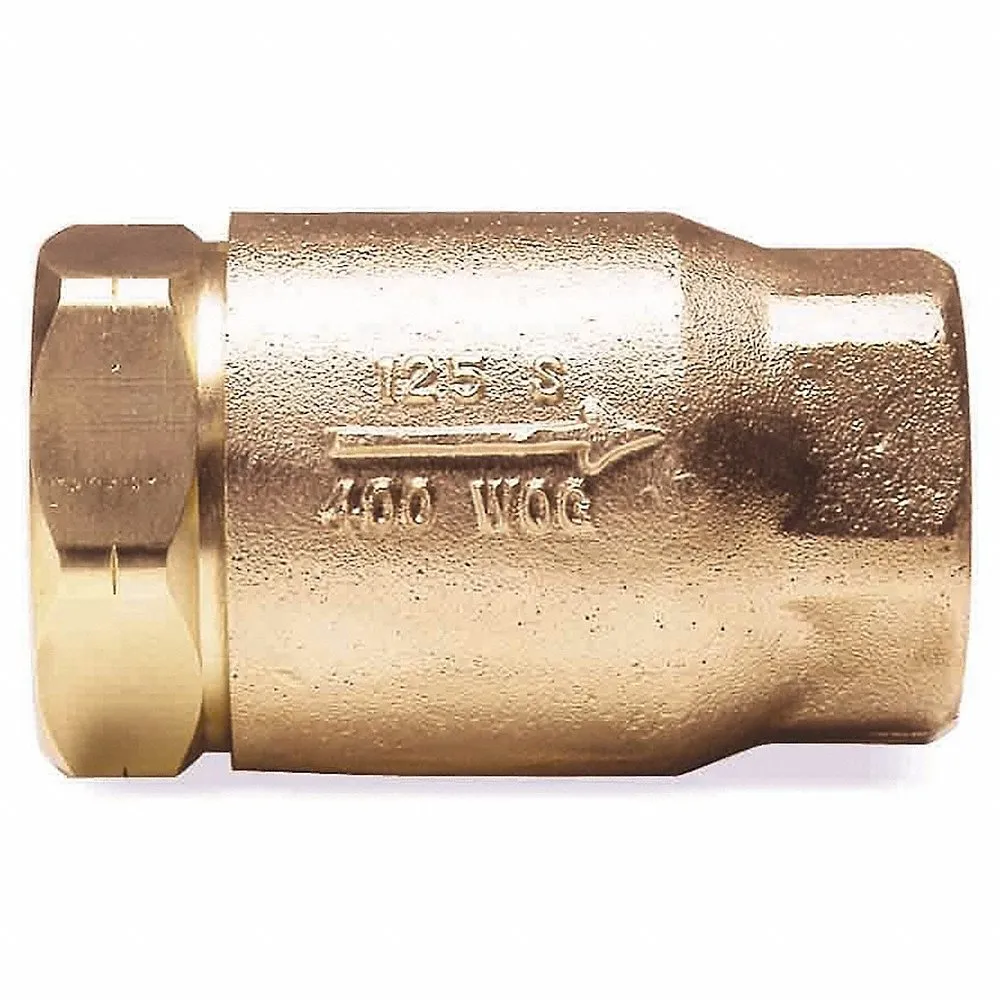

61LF10201 | 1 3/25" | 1.21 GPM | 1 1/8" | 31.75 mm | 33°F | Bronze | FNPT | 350°F | €100.40 | |
 |
61LF10301 | 1 3/25" | 1.4 GPM | 1 1/8" | 31.75 mm | 20°F | Bronze | FNPT | 350°F | €103.96 | |
|
61LF10501 | 1.93" | 6 GPM | 1 15/16" | 50.8 mm | 33°F | Bronze | FNPT | 350°F | €194.21 | |
|
61LF10601 | 2.37" | 44 GPM | 2 3/8" | 63.5 mm | 33°F | Bronze | FNPT | 350°F | €346.06 | |
|
61LF10701 | 2.81" | 65 GPM | 2 13/16" | 69.85 mm | 33°F | Bronze | FNPT | 350°F | €445.70 | |
 |

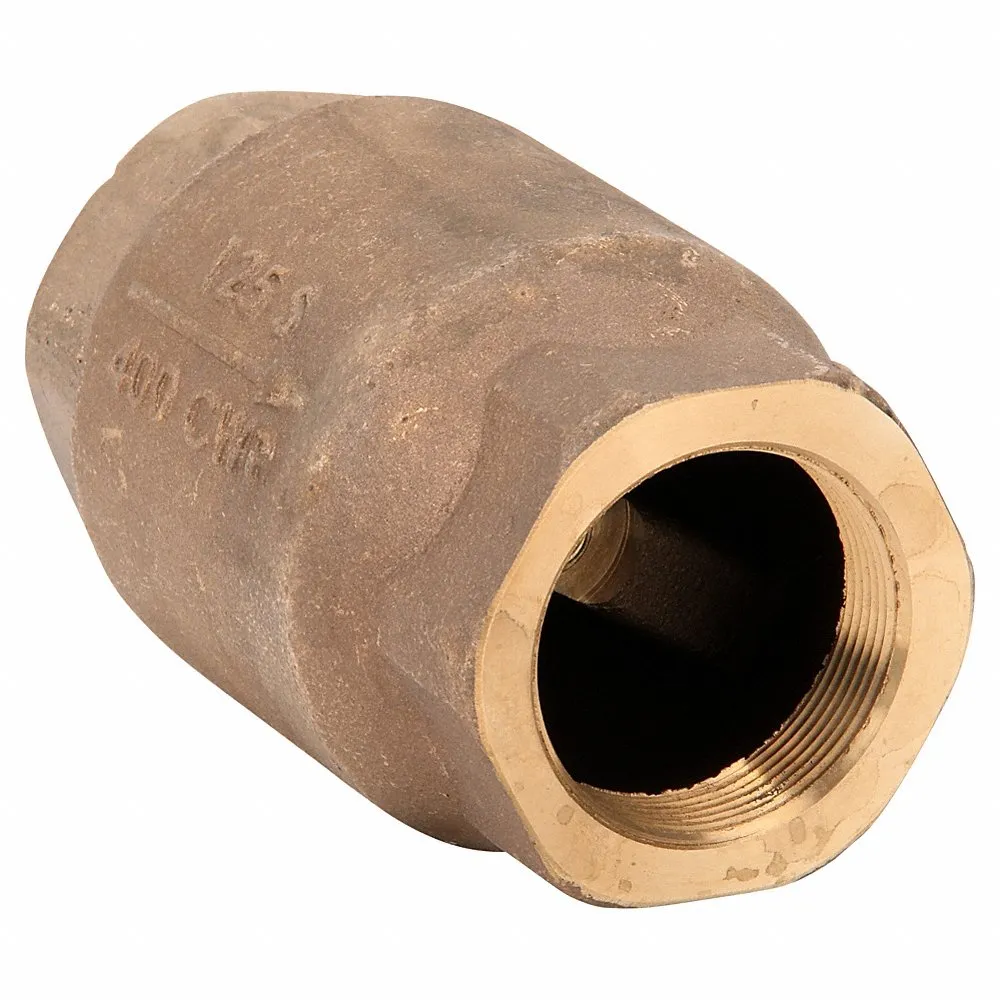

61LF10801 | 3 17/25" | 81 GPM | 3 11/16" | 95.25 mm | 33°F | Bronze | FNPT | 350°F | €700.09 |
