APOLLO VALVES 36LF30801 Water Pressure Reducing Valve, 36LF, Lead Free Bronze, 2 in, Single Union Solder x FNPT
Get it by Monday, Aug 24
5.00% off
€689.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Water Pressure Reducing Valve |
| Application | Commercial Use, Institutional Use, Residential Use |
| Body Material | Bronze |
| Bonnet Material | Bronze |
| Coating/lining | NSF Listed Fusion Bonded Epoxy Lining And Coating |
| Color | Yellow, Bronze |
| Connection Type | Single Union Solder x FNPT |
| Connections | Npt x Solder |
| Dimensions | 8.88" x 5 3/4" x 11 1/2" |
| Disc Material | EPDM |
| Factory Set Pressure | 50 psi |
| Finish | None |
| For Media | Water |
| Height | 292.1 mm |
| Included Strainer | Strainer Included |
| Inlet Connection Size | 2" |
| Lead Free | Yes |
| Length | 8.891" |
| Low-lead Compliance | Low Lead Compliant |
| Max. Continuous Flow Rate | 127 GPM |
| Max. Medium Temp. | 180°F |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 180°F |
| Min. Medium Temp. | 33°F |
| Nsf Certifications For Food And Drinking Water | Nsf 372 |
| Operating Pressure | 25 psi to 300 psi |
| Outlet Connection Size | 2" |
| Outside Pipe Dia. Connection 1 | 2.13" |
| Outside Pipe Dia. Connection 2 | 2.38" |
| Overall Height | 5 5/8" |
| Overall Width | 8 13/16" |
| Peak Medium Temp. | 180°F |
| Preset Pressure Settings | 50 psi |
| Pressure Adjustment Range | 25 psig to 75 psig |
| Pressure Rating | 25 psi to 75 psi, 5 psig to 75 psig |
| Product Datasheet | apollo-valves-36lf30801.pdf |
| Seat Material | EPDM |
| Series | 36 Series Pressure Reducing Valves |
| Shape | Straight |
| Size | 2" |
| Strainer | No |
| Suitable For Gases | No |
| Suitable For Liquids | No |
| Suitable For Steam | No |
| Surface Protection | None |
| Type | Standard |
| With Pressure Gauge | No |
Shipping Info:
| Ship weight (kg) | 10.13 |
| Ship height (cm) | 29.21 |
| Ship length (cm) | 22.56 |
| Ship width (cm) | 14.61 |
| HS code | 8481100090 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Height | Size | With Pressure Gauge | Outside Pipe Dia. Connection 2 | Outside Pipe Dia. Connection 1 | Dimensions | Inlet Connection Size | Outlet Connection Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 36LF10301 | 149.23 mm | 1/2" | No | 0.84" | 0.84" | 4.88" x 2 3/4" x 5.88" | 1/2" | 1/2" | €224.72 | |

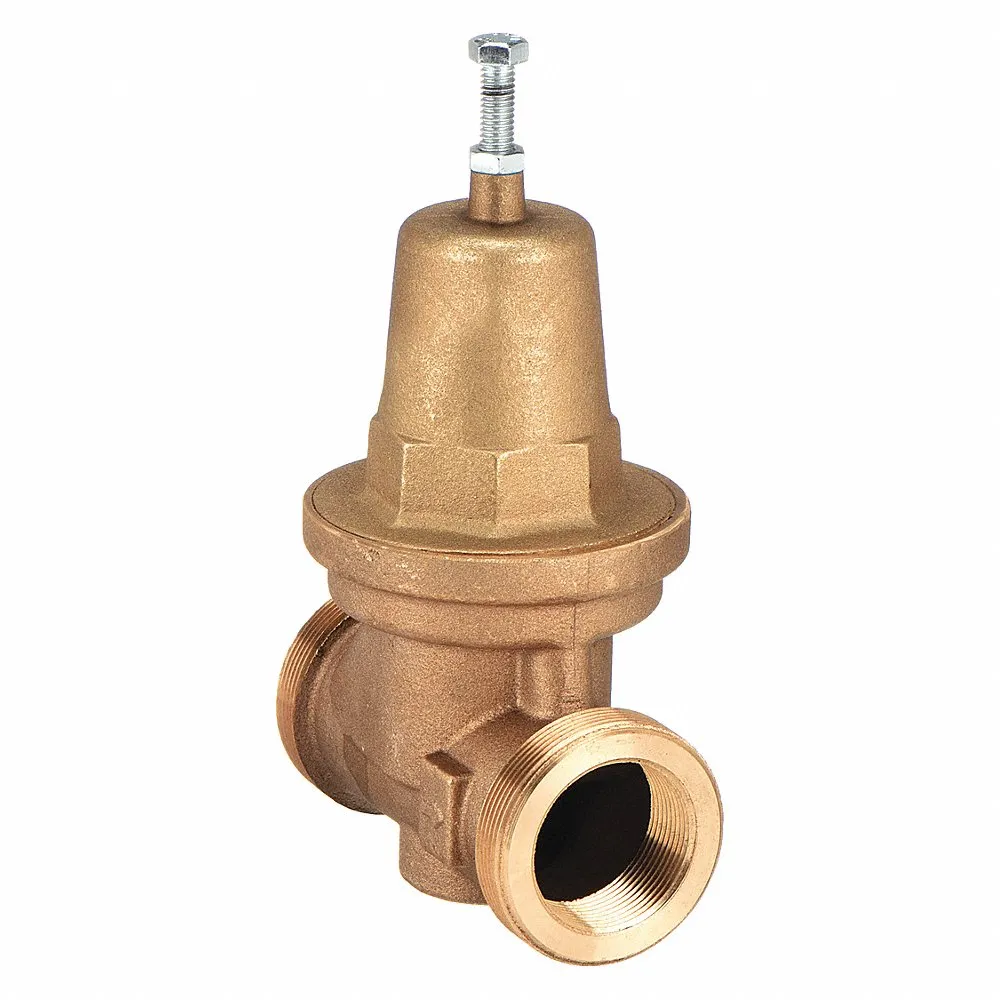

| 36LF10401 | 149.23 mm | 3/4" | No | 1.05" | 1.05" | 4.88" x 2 3/4" x 5.88" | 3/4" | 3/4" | €238.89 | |
| 36LF10501 | 174.63 mm | 1" | No | 1.31" | 1.31" | 5 1/2" x 3 1/4" x 6.88" | 1" | 1" | €317.55 | |
| 36LF10601 | 225.43 mm | 1 1/4" | No | 1.66" | 1.66" | 6 1/2" x 4" x 8.88" | 1 1/4" | 1 1/4" | €477.74 | |
| 36LF10701 | 225.43 mm | 1 1/2" | No | 1.9" | 1.9" | 6.63" x 4" x 8.88" | 1 1/2" | 1 1/2" | €445.64 | |
| 36LF10801 | 292.1 mm | 2" | No | 2.38" | 2.38" | 8 1/2" x 5 3/4" x 11 1/2" | 2" | 2" | €809.20 | |
| 36LF20301 | 149.23 mm | 1/2" | No | 0.84" | 0.84" | 4" x 2 3/4" x 5.88" | 1/2" | 1/2" | €205.88 |
