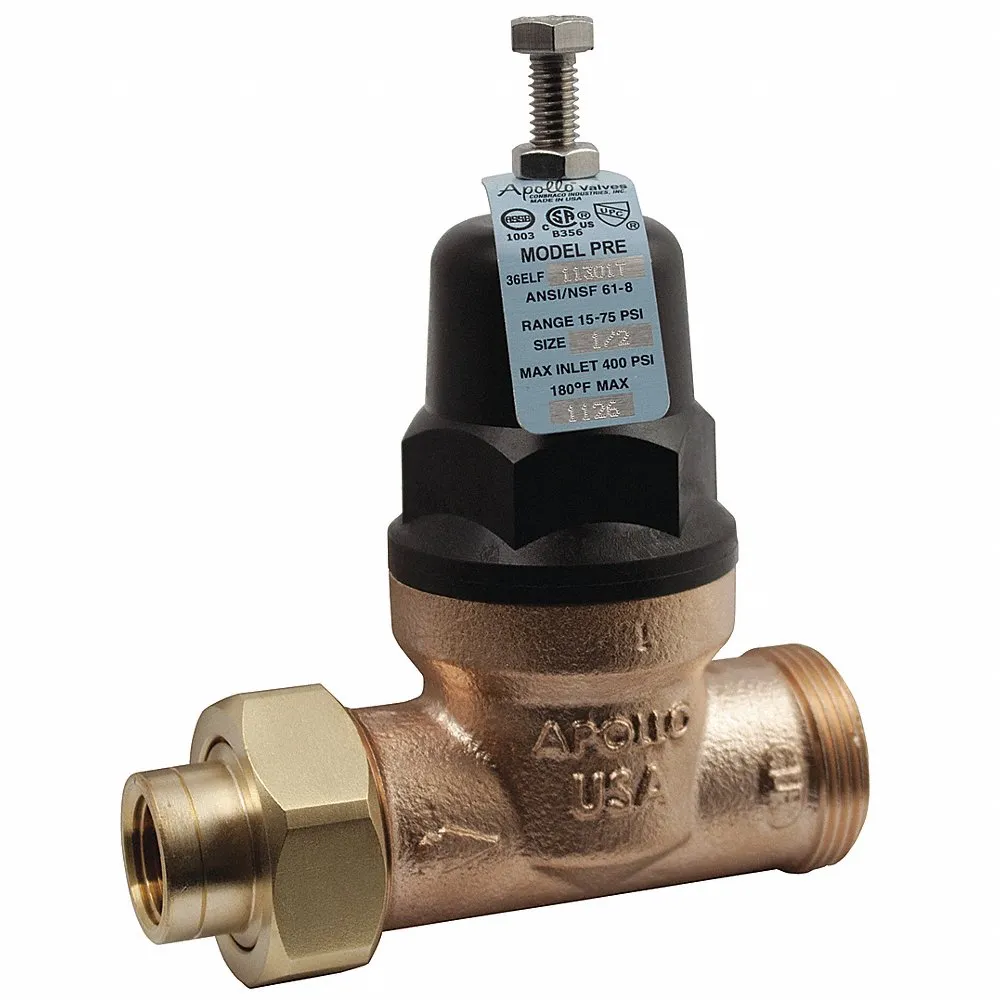

APOLLO VALVES 36ELF11301S Water Pressure Reducing Valve, 36ELF, Lead Free Bronze, 1/2 in, Single Union Solder x FNPT
Item: AD3LWVModel: 36ELF11301SCross Ref: 40D781
7 In Stock
Ships within 2 days via
10.00% off
€135.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Water Pressure Reducing Valve |
| Application | Commercial Use, Institutional Use, Residential Use |
| Body Material | Bronze |
| Coating/lining | NSF Listed Fusion Bonded Epoxy Lining And Coating |
| Color | Yellow, Bronze |
| Connection Type | Solder x FNPT |
| Connections | Npt x Solder |
| Dimensions | 4 1/2" x 2 1/4" x 5 3/4" |
| Disc Material | EPDM |
| Factory Set Pressure | 60 psi |
| Finish | None |
| For Media | Water |
| Height | 146.05 mm |
| Includes Strainer | Strainer Included |
| Inlet Connection Size | 1/2" |
| Lead Free | Yes |
| Length | 4 1/2" |
| Low-lead Compliance | Low Lead Compliant |
| Max. Continuous Flow Rate | 36 GPM |
| Max. Medium Temp. | 180°F |
| Max. Operating Pressure | 400 psi |
| Max. Operating Temperature | 180°F |
| Min. Medium Temp. | 33°F |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Operating Pressure Range | 15 psi to 400 psi |
| Outer Pipe Dia. Connection 1 | 0.63" |
| Outer Pipe Dia. Connection 2 | 0.84" |
| Outlet Connection Size | 1/2" |
| Overall Height | 5 5/8" |
| Overall Width | 4 1/2" |
| Peak Medium Temp. | 180°F |
| Preset Pressure Settings | 50 psi |
| Pressure Adjustment Range | 15 psig to 75 psig |
| Pressure Rating | 15 psi to 75 psi, 15 psig to 75 psig |
| Product Datasheet | apollo-valves-36elf10301pr.pdf |
| Seat Material | EPDM |
| Series | 36 Series Pressure Reducing Valves |
| Shape | Straight |
| Size | 1/2" |
| Strainer | No |
| Suitable For Gases | No |
| Suitable For Liquids | No |
| Suitable For Steam | No |
| Surface Protection | None |
| Type | Standard |
| With Pressure Gauge | No |
Shipping Info:
| Ship weight (kg) | 1.08 |
| Ship height (cm) | 14.61 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 5.72 |
| HS code | 8481100090 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Connection Type | Height | Type | Size | Pressure Adjustment Range | Body Material | Preset Pressure Settings | Disc Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
36ELF10301PR | Press | 4 3/4" | High Capacity | 1/2" | - | - | 50 psi | - | €246.05 | |
|
36ELF10401PR | Press | 4 3/4" | High Capacity | 3/4" | 29.7 psi to 89.7 psi | Bronze | 50 psi | EPDM | €222.34 | |
|
36ELF10501PR | Press | 4 3/4" | High Capacity | 1" | 29.7 psi to 89.7 psi | Bronze | 50 psi | EPDM | €256.04 | |
 |
36ELF10301T | FNPT | 139.7 mm | Standard | 1/2" | 15 psig to 75 psig | Bronze | 50 psi | EPDM | €163.65 | |
|
36ELF10401T | FNPT | 139.7 mm | Standard | 3/4" | - | - | 50 psi | - | €163.05 | |
|
36ELF10501T | FNPT | 146.05 mm | Standard | 1" | 15 psig to 75 psig | Bronze | 50 psi | EPDM | €207.49 | |
 |
36ELF11301T | FNPT | 146.05 mm | Standard | 1/2" | 15 psi to 75 psi | Bronze | 50 psi | EPDM | €170.32 |
