APOLLO VALVES 18C5314150 Bronze Relief Valve with 4 Inch Element, 150 Psig, 1-1/4 x 1 Inch Size, MNPT x FNPT
Item: AC9LFZModel: 18C5314150Cross Ref: 3HFG5
7 In Stock
Ships within 2 days via
10.00% off
€278.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Temperature & Pressure Relief Valve |
| Application | Water Heaters |
| Asme Section Code | Section Iv |
| Auto Re-seating | Yes |
| Body Height | 5 5/8" |
| Body Width | 6 1/2" |
| Color | Bronze |
| Connection Type | MNPT x FNPT |
| D1 | 1.66 |
| D2 | 1.32 |
| Discharge Capacity | 750000 btuH |
| Factory Set Pressure | 150 psi |
| Finish | None |
| For Media | Hot Water |
| H1 | 3 |
| Inlet Connection Size | 1 1/4" |
| Length Of Connection 1 | 1.97" |
| Length Of Connection 2 | 1.75" |
| Material | Bronze |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temperature | 210°F |
| Max. Temp. | 210°F |
| Min. Operating Temperature | 32°F |
| Outer Pipe Dia. Connection 1 | 1.66" |
| Outer Pipe Dia. Connection 2 | 1.32" |
| Outlet Connection Size | 1" |
| Preset Temperature | 210°F |
| Product Datasheet | apollo-valves-18c5314150.pdf |
| Series | 18C Series Safety Relief Valves |
| Shank Length | Standard |
| Shape | Perpendicular |
| Size | 1 1/4" x 1" |
| Spring Material | Stainless Steel |
| Suitable For Cooling | No |
| Suitable For Heating | Yes |
| Suitable For Hot Tap Water | No |
| Suitable For Solar Heating | No |
| Surface Protection | None |
| Thermostat Length | 4" |
| V | 1.3 |
| Working Length Connection 2 | 1.3" |
| Z2 | 1.3 |
Shipping Info:
| Ship weight (kg) | 1.52 |
| Ship height (cm) | 27.43 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 7.62 |
| HS code | 8481400000 |
| Country of Origin | US |
Product Details:
- Auto Re-Seating (Yes)
Documentation:
Product Variants
| Product | Model | Connection Type | Factory Set Pressure | Body Height | Thermostat Length | Discharge Capacity | Body Width | Max. Temp. | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

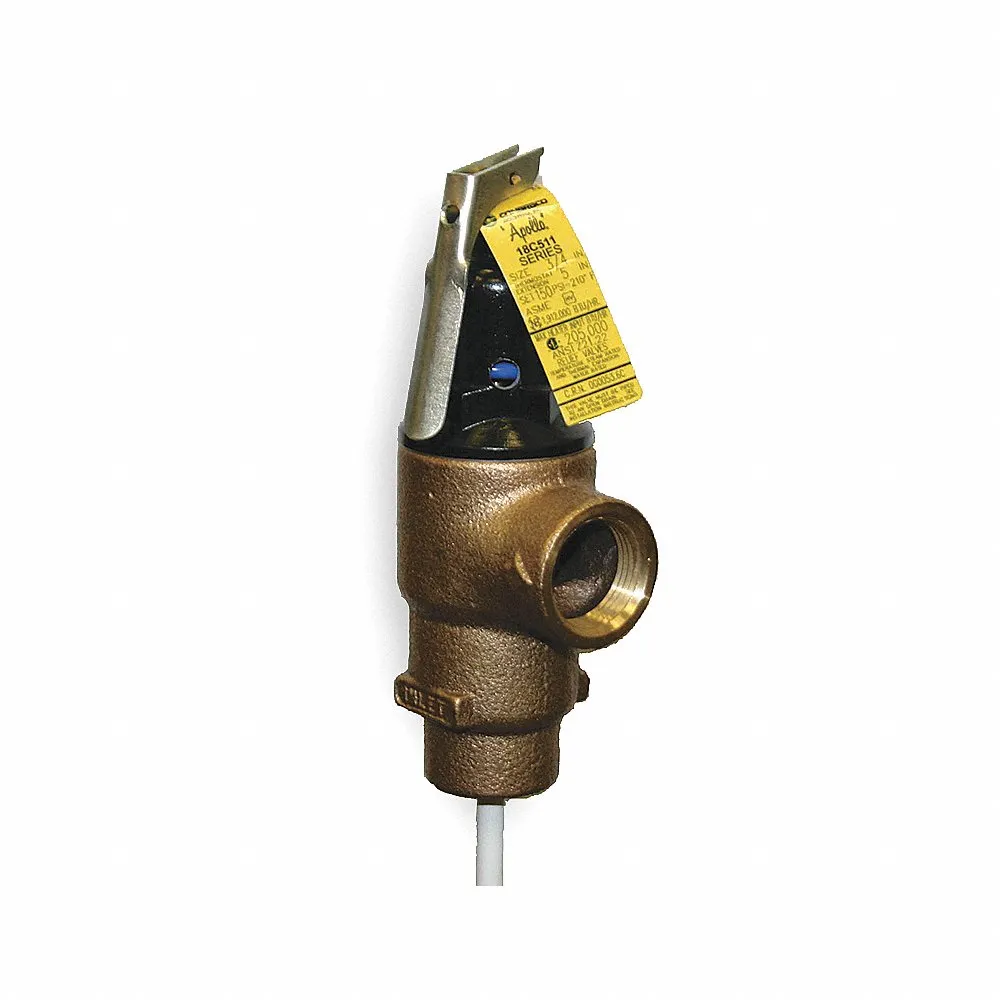

18C5513125 | MNPT x FNPT | 125 psi | 5 5/8" | 3" | 1200000 btuH | 6 1/2" | 210°F | Standard | €693.88 | |
|
18C5513150 | MNPT x FNPT | 150 psi | 5 5/8" | 3" | 1200000 btuH | 6 1/2" | 210°F | Standard | €840.39 | |
|
18C5115125 | MNPT x FNPT | 125 psi | 5 5/8" | 5" | 205000 btuH | 6 1/2" | 210°F | Standard | €167.41 | |
 |

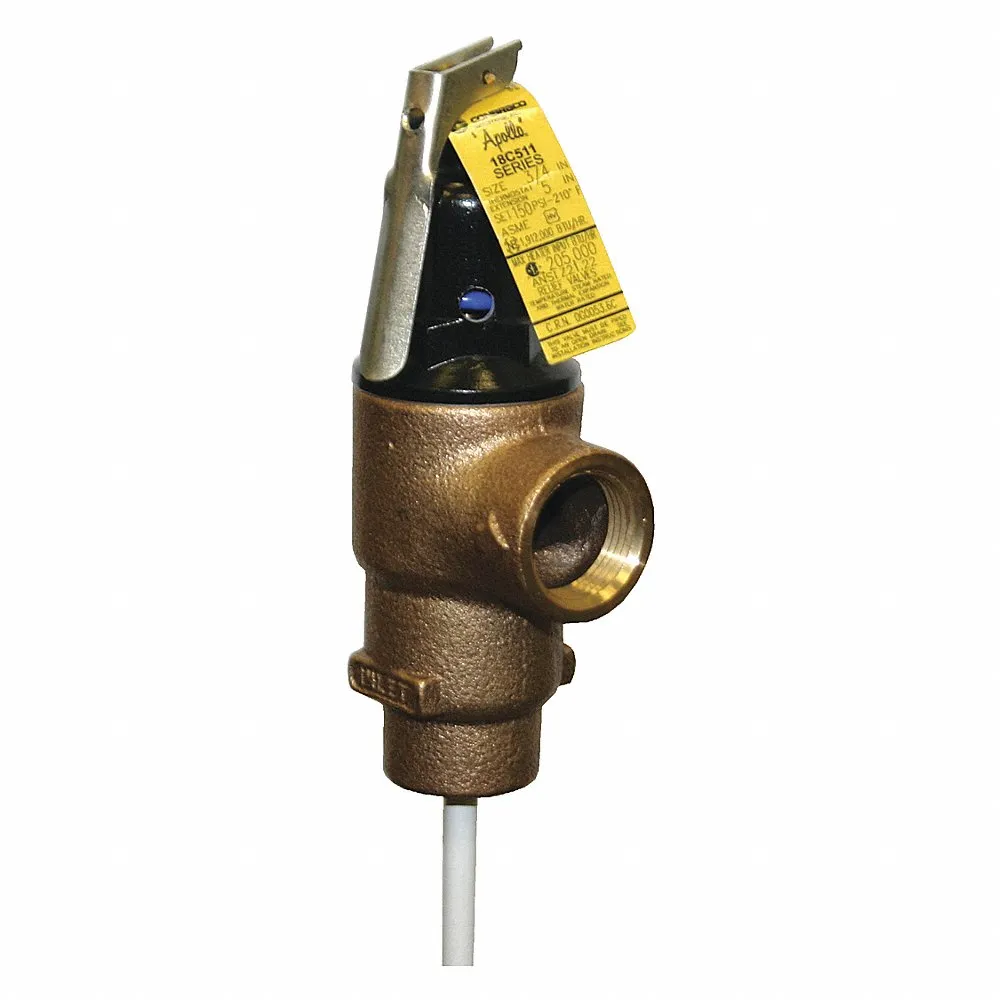

18C5125125 | FNPT x FNPT | 125 psi | 5 5/8" | 5" | 205000 btuH | 6 1/2" | 210°F | Standard | €141.41 | |
 |

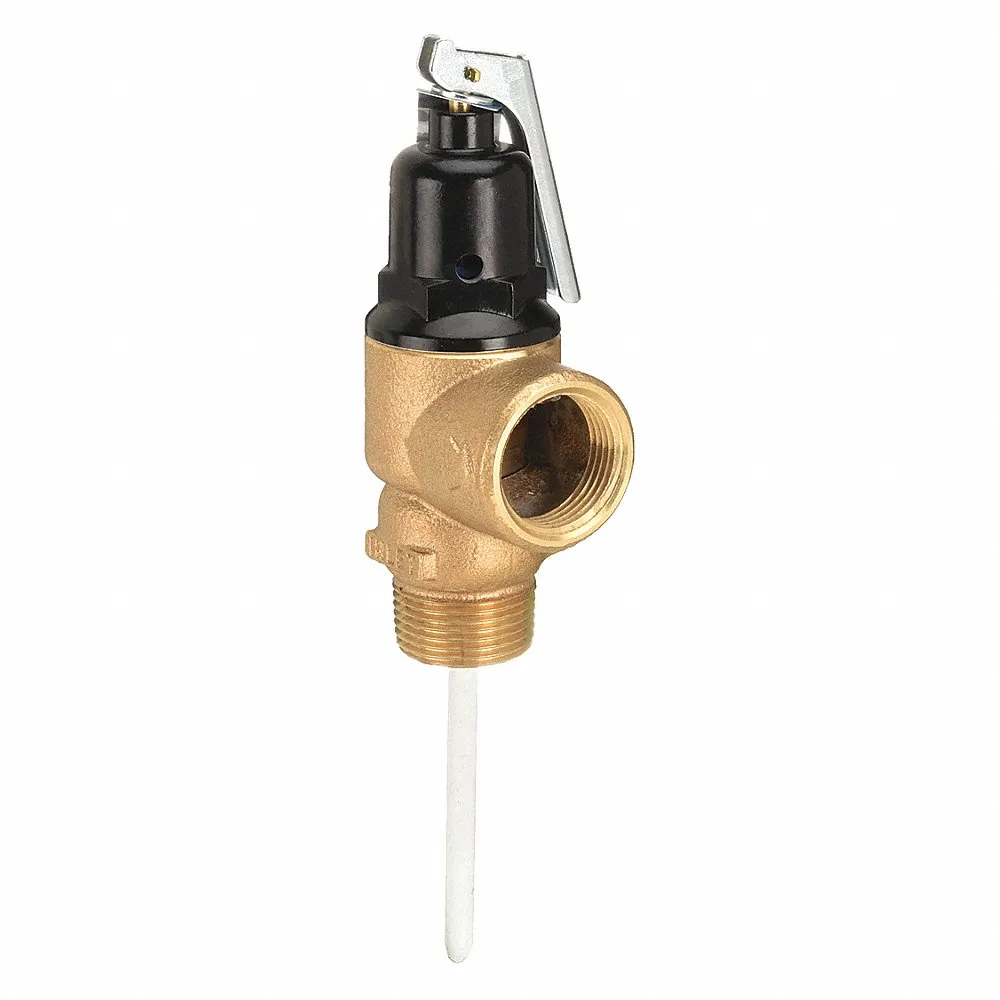

18C5213125 | MNPT x FNPT | 125 psi | 5 5/8" | 3" | 500000 btuH | 6 1/2" | 210°F | Standard | €244.04 | |
|
18C5314125 | MNPT x FNPT | 125 psi | 5 5/8" | 4" | 750000 btuH | 6 1/2" | 210°F | Standard | €381.59 | |
 |

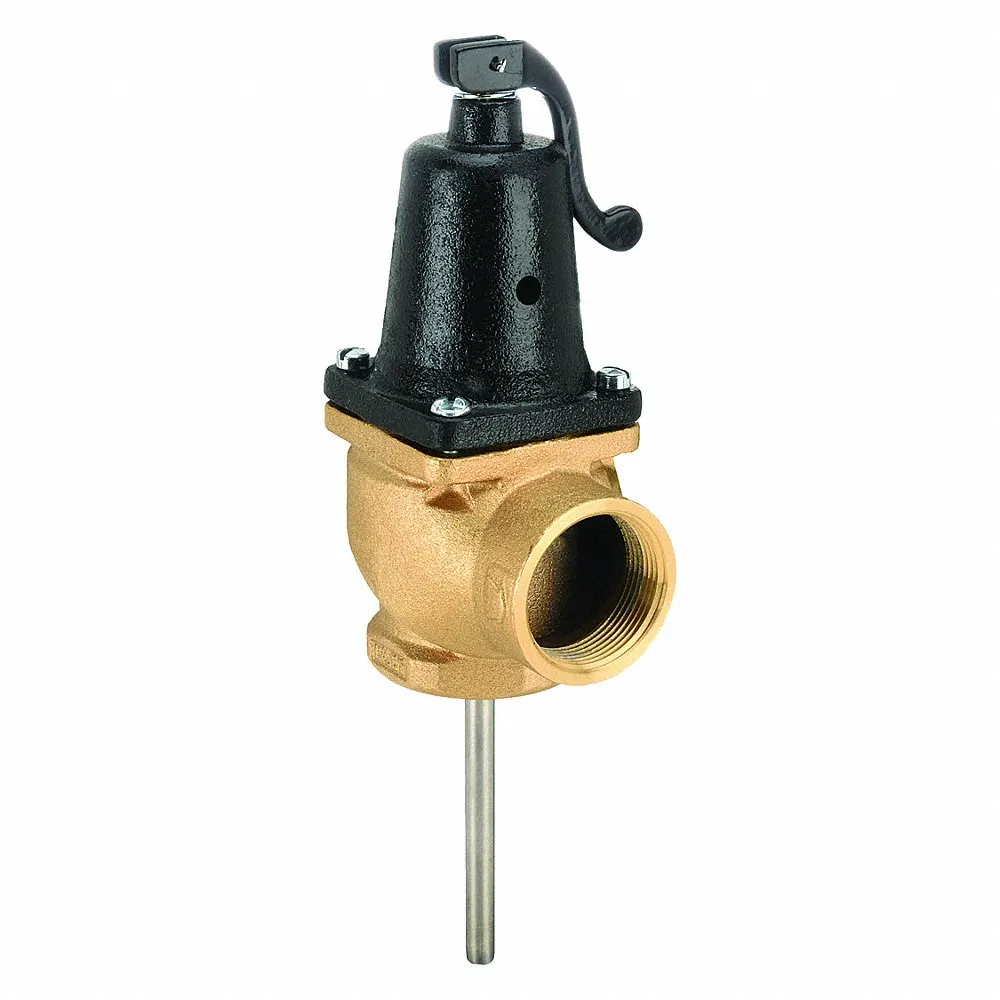

18C5424125 | FNPT x FNPT | 125 psi | 5 5/8" | 4" | 1200000 btuH | 6 1/2" | 210°F | Standard | €802.57 |
