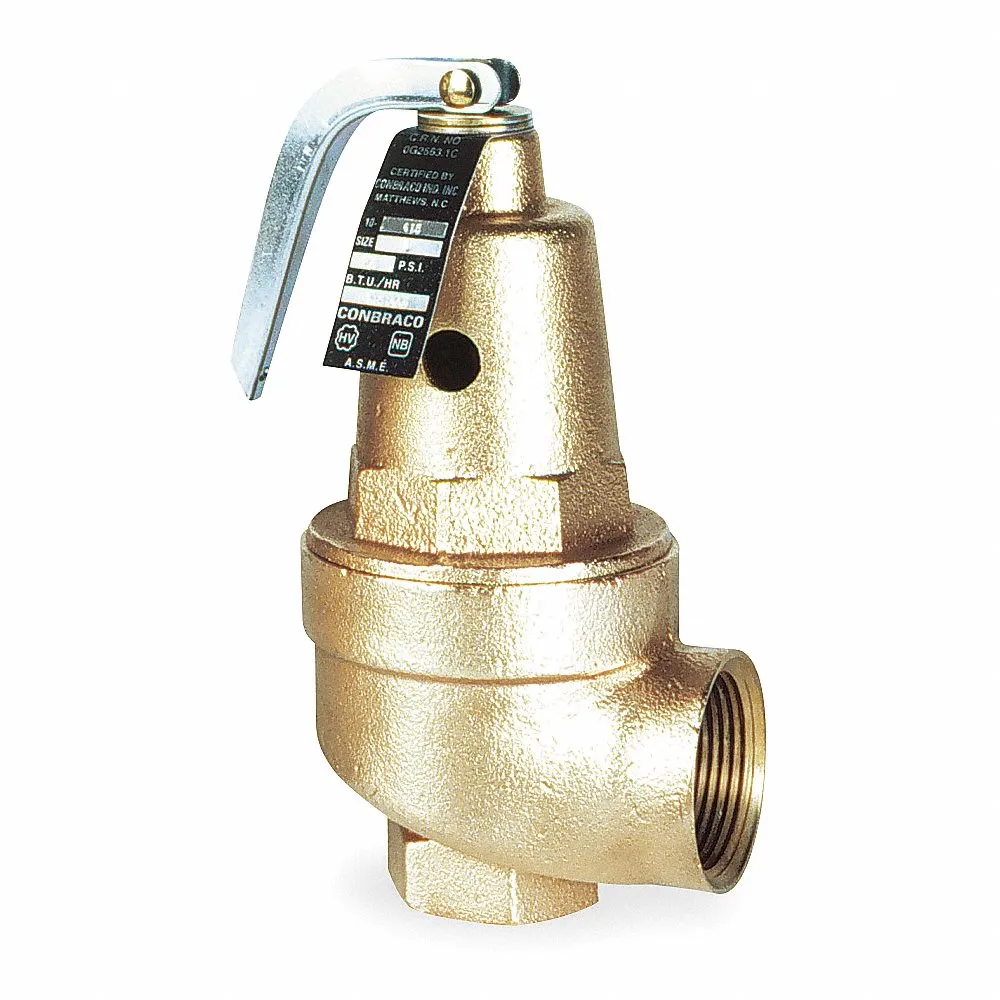

APOLLO VALVES 1060805 Safety Relief Valve 2 Inch 30 Psi Bronze
Get it by Thursday, Dec 18
10.00% off
€735.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Safety Relief Valve |
| Application | Heating |
| Asme Section Code | Section Iv |
| Color | Bronze |
| Connection Type | FNPT x FNPT |
| Dimensions | 6 1/4" x 5 1/2" x 14" |
| Disc Material | Brass |
| Discharge Capacity | 5193000 btuH |
| Factory Set Pressure | 30 psig |
| Finish | None |
| For Media | Water |
| Grade | Grade B16 |
| Height | 355.6 mm |
| Inlet Connection Size | 2" |
| Length Of Connection 1 | 2.19" |
| Length Of Connection 2 | 3.65" |
| Material | Bronze |
| Max. Medium Temp. | 250°F |
| Max. Operating Pressure | 160 psi |
| Medium Temp. (continuous) | 32°F to 249.8°F |
| Min. Medium Temp. | 32°F |
| Operating Pressure Range | 30 psi to 174 psi |
| Operating Temperature Range | 32°F to 249.8°F |
| Outer Pipe Dia. Connection 1 | 2.38" |
| Outer Pipe Dia. Connection 2 | 2.38" |
| Outlet Connection Size | 2" |
| Overall Height | 5 5/8" |
| Overall Length | 7.187" |
| Overall Width | 9 1/2" |
| Peak Medium Temp. | 250°F |
| Pressure Rating | 15 psi to 160 psi |
| Product Type | Safety Relief Valve |
| Seal Material | Silicone |
| Seat Material | Silicone |
| Series | 10 Series Safety Relief Valves |
| Set Pressure | 30 psi |
| Shape | Straight |
| Size | 2" |
| Spring Material | Alloy Steel |
| Suitable For Cooling | No |
| Suitable For Heating | Yes |
| Suitable For Hot Tap Water | No |
| Suitable For Solar Heating | No |
| Surface Protection | None |
| Temp. Range | 0°F to 250°F |
| Test Lever | Test Lever Included |
| Working Length Connection 1 | 1.5" |
| Working Length Connection 2 | 2.91" |
Shipping Info:
| Ship weight (kg) | 10.69 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 15.88 |
| Ship width (cm) | 13.97 |
| HS code | 8481400000 |
| Country of Origin | US |
Product Variants
| Model | Overall Length | Overall Height | Factory Set Pressure | Size | Height | Connection Type | Test Lever | Spring Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1060405 | 3.187" | 5 5/8" | 30 psig | 3/4" | 133.35 mm | FNPT x FNPT | Test Lever Included | Alloy Steel | €261.37 | |
| 1060410 | 3.187" | 5 5/8" | 50 psig | 3/4" | 133.35 mm | FNPT x FNPT | Test Lever Included | Alloy Steel | €261.37 | |
| 1060415 | 3.187" | 5 5/8" | 75 psig | 3/4" | 133.35 mm | FNPT x FNPT | Test Lever Included | Alloy Steel | €261.37 | |
| 1060420 | 3.187" | 5 5/8" | 100 psig | 3/4" | 133.35 mm | FNPT x FNPT | Test Lever Included | Alloy Steel | €261.37 | |
| 1060425 | 3.187" | 5 5/8" | 125 psig | 3/4" | 133.35 mm | FNPT x FNPT | Test Lever Included | Alloy Steel | €261.37 | |
| 1060434 | 3.187" | 5 1/4" | - | 3/4" | 133.35 mm | FNPT | Yes | Bronze | €261.37 | |
| 1060505 | 4" | 5 5/8" | 30 psig | 1" | 171.45 mm | FNPT x FNPT | Test Lever Included | Alloy Steel | €311.94 |
