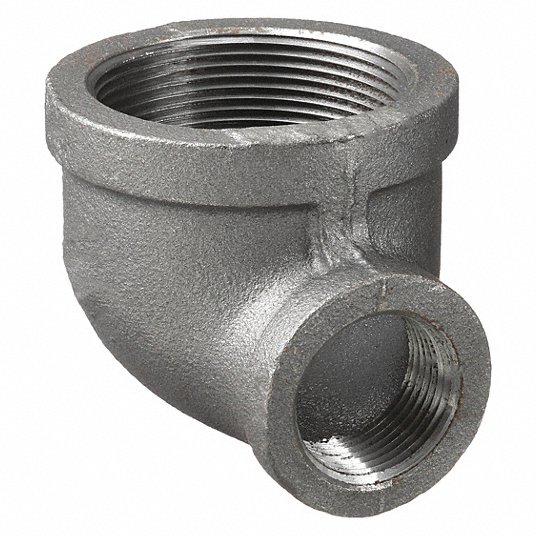

ANVIL 0310011002 Reducing Elbow, 90 Degree, Standard, Class 150, Black, 2 1/2 Inch Nominal Pipe Size (a), 2 Inch Nominal Pipe Size (b)
Item: AE2BUAModel: 0310011002Cross Ref: 4WGU5
7 In Stock
Ships within 2 days via
10.00% off
€122.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reducing Elbow, 90 Degrees |
| Application | Air, Natural Gas, Non-Potable Water, Oil, Steam |
| Basic Fitting Shape | Elbow |
| Body Material | Malleable Iron |
| Class | Class 150 |
| Color | Black |
| Connection Type | FNPT |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 2 1/2" |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 2" |
| Fitting Side B Type | NPT |
| For Pipe Schedule | 40 |
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Max. Pressure | 300 psi @ 150°F |
| Maximum Operating Pressure | 300 psi @ 150°F |
| Pipe Fitting Material | Malleable Iron |
| Pipe Size | 2 1/2" x 2" |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Reducing Elbow |
| Standards | Asme B16.3, Astm A197, Fm Approved, Ul Listed |
| Temp. Range | -20°F to +150°F |
Shipping Info:
| Ship weight (kg) | 1.34 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 12.45 |
| Ship width (cm) | 9.4 |
| HS code | 7307199080 |
| Country of Origin | US |
Product Variants
| Model | Pipe Size | Fitting Side A Nominal Pipe Size | Fitting Side B Nominal Pipe Size | Connection Type | Basic Fitting Shape | Class | Temp. Range | Fitting Side A Gender | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0310006804 | 1/4" x 1/8" | 1/4" | 1/8" | FNPT | Elbow | Class 150 | -20°F to +150°F | Female | €16.10 | |
| 0310007000 | 3/8" x 1/4" | 3/8" | 1/4" | FNPT | Elbow | Class 150 | -20°F to +150°F | Female | €11.59 | |
| 0310007208 | 3/8" x 1/8" | 3/8" | 1/8" | FNPT | Elbow | Class 150 | -20°F to +150°F | Female | €23.30 | |
| 0310007406 | 1/2" x 3/8" | 1/2" | 3/8" | FNPT | Elbow | Class 150 | -20°F to +150°F | Female | €10.00 | |
| 0310007604 | 1/2" x 1/4" | 1/2" | 1/4" | FNPT | Elbow | Class 150 | -20°F to +150°F | Female | €11.03 | |
| 0310007802 | 3/4" x 1/2" | 3/4" | 1/2" | FNPT | Elbow | Class 150 | -20°F to +150°F | Female | €11.20 | |
| 0310008008 | 3/4" x 3/8" | 3/4" | 3/8" | FNPT | Elbow | Class 150 | -20°F to +150°F | Female | €15.57 |
