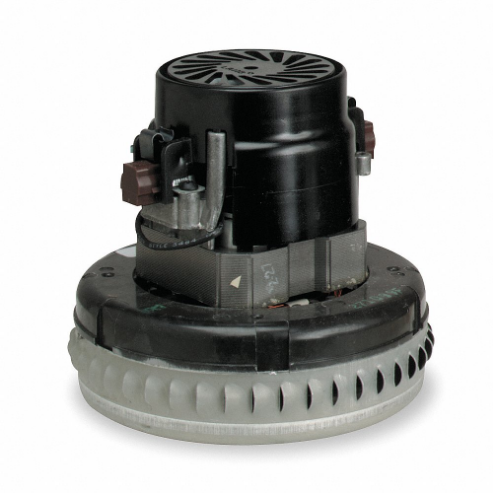

AMETEK LAMB 116196-00 AC Vacuum Motor, Peripheral, 725 W, 5.7 Frame Size, 1 Stage, 120 V
Item: AD8TKQModel: 116196-00Cross Ref: 4M960
7 In Stock
Ships within 2 days via
10.00% off
€173.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vacuum Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Average Life | 500 hrs. |
| Bearing Type | Ball, Sleeve |
| Blower Stages | 1 |
| Body Dia. | 5.7" |
| Cfm @ 2-in. Orifice | 133 CFM |
| Discharge | Peripheral |
| Duty Cycle | Intermittent |
| Flow Class | Standard Flow |
| Frame | Non-Standard |
| Frame Size | 5.7" |
| Frequency | 50/60 Hz |
| Full Load Amps | 7A |
| Insulation Class | Class A |
| Max. Air Watts | 291 W |
| Max. Ambient Temp. | 40°C |
| Max. Amps | 4.9A |
| Motor Application | Universal Ac, Dc Motor |
| Motor Bearings | Ball, Sleeve |
| Motor Design | Universal AC/DC |
| Motor Enclosure Design | Open |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Lug |
| Motor Type | Traditional Lamb |
| Motor/blower Type | Bypass |
| Mounting Bracket Material | Aluminum |
| Mounting Brackets | Thermoset |
| Nameplate Rpm | 23125 RPM |
| No. Of Speeds | 1 |
| Overall Height | 5 3/16" |
| Overall Length | 5 1/4" |
| Phase | 1 |
| Power Level | 725 W |
| Replacement Brush Kit | 833384-51 |
| Replacement Brushes | 152F62 |
| Speed Control | Not Applicable |
| Standards | Csa Certified (Lr31393), Ul Recognized (E47185) |
| Thermal Protection | Not Applicable |
| Vacuum (h2o Sealed) | 49.5 |
| Vacuum Rating | 49.5 |
| Voltage | 120V AC |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 13.18 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 14.48 |
| HS code | 8414596095 |
| Country of Origin | MX |
Product Details:
- Motor/Blower Type (Bypass)
Product Variants
| Product | Model | Cfm @ 2-in. Orifice | Max. Air Watts | Overall Height | Full Load Amps | Nameplate Rpm | Overall Length | Voltage | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
116325-00 | 95 CFM | 188 W | 5 1/16" | 5.7A | 23292 RPM | 5" | 120V AC | Open | €155.54 |
