AMETEK LAMB 115982 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AD8TKR 4M982

AMETEK LAMB 115982 AC Vacuum Motor, Thru-Flow, 1025 W, 5.7 Frame Size, 2 Stage, 120 V

Item: AD8TKRModel: 115982Cross Ref: 4M982
7 In Stock

Ships within 2 days via

€207.46
5.00% off
€197.09 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Vacuum Motor
Ac/dc AC
Ambient Temp. 40°C
Average Life 500 hrs.
Bearing Type Ball
Blower Stages 2
Body Dia. 5.7"
Cfm @ 2-in Orifice 115 CFM
Cfm @ 2-in. Orifice 115 CFM
Discharge Thru Flow
Duty Cycle Intermittent
Efficiency Group High
Flow Class Standard Flow
Frame Non Standard
Frame Size 5.7"
Frequency 50/60 Hz , 60 Hz
Frequency 60 Hz
Full Load Amps 9.4A
Insulation Class Class A
Max. Air Watts 356 W
Max. Ambient Temp. 40°C
Max. Amps 9.4A
Motor Application Universal Ac, Dc Motor
Motor Bearings Ball
Motor Design Universal AC/DC
Motor Enclosure Design Open
Motor Mounting Position All Angle
Motor Mounting Type Lug
Motor Thermal Protection None
Motor Type Traditional Lamb
Motor/blower Type Thru Flow
Mounting Bracket Material Metal
Mounting Brackets Metal
Nameplate Speed 25500 RPM
No. Of Speeds 1
Overall Height 5 3/4"
Overall Length 6 1/16"
Phase 1
Power Level 1025 W
Replacement Brush Kit 833384-50
Replacement Brushes 152F62
Speed Control Not Applicable
Thermal Protection Not Applicable
Vacuum 90.4
Vacuum (h2o Sealed) 96.4
Voltage 120V AC

Shipping Info:

Ship weight (kg) 2.43
Ship height (cm)14.61
Ship length (cm)15.4
Ship width (cm)14.48
HS code8501404040
Country of OriginMX

Product Details:

    • Motor/Blower Type (Thru-Flow)

Product Variants

ProductModelVoltageSpeed ControlCfm @ 2-in OrificeMax. Air WattsOverall HeightNo. Of SpeedsReplacement Brush KitMotor TypePrice

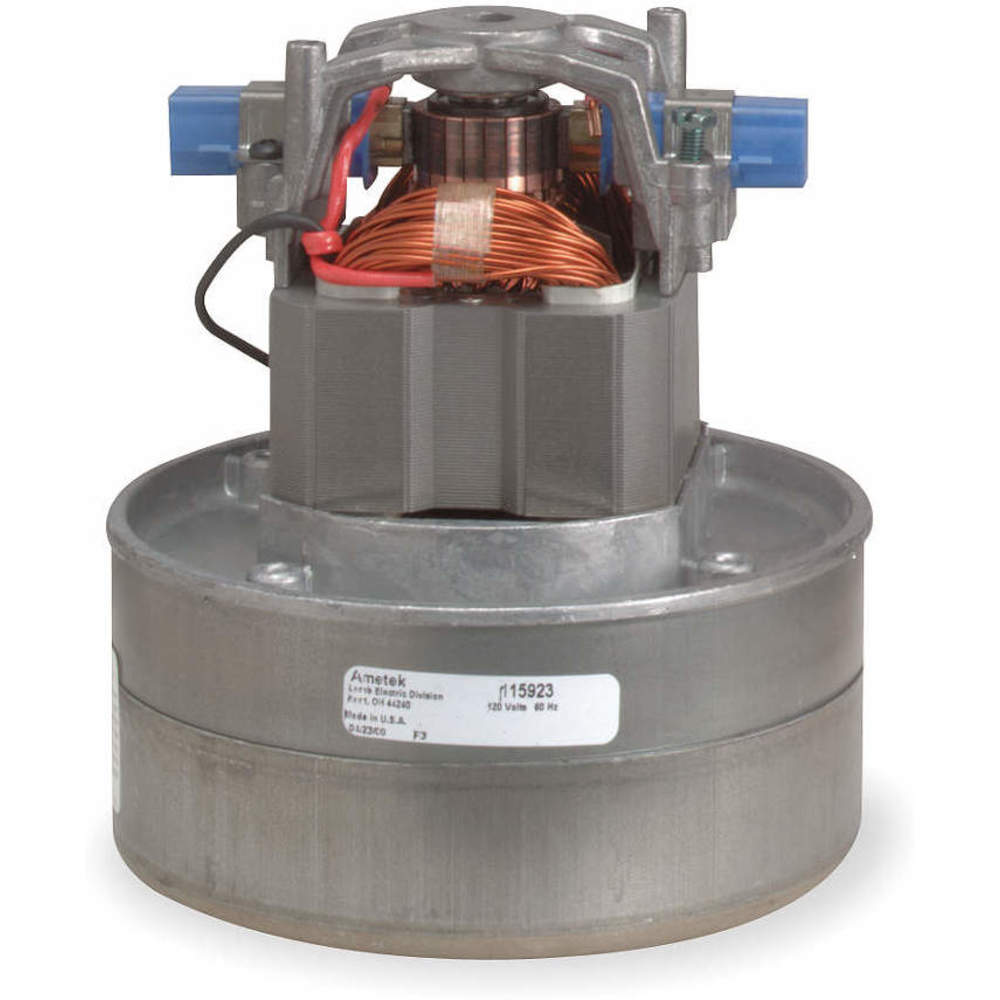

AMETEK LAMB 116146-00 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 220VAC | AC2QMD 2M186 116146-00120V ACNot Applicable120.7 CFM373 W5 25/32"1833326-51Traditional Lamb€229.92

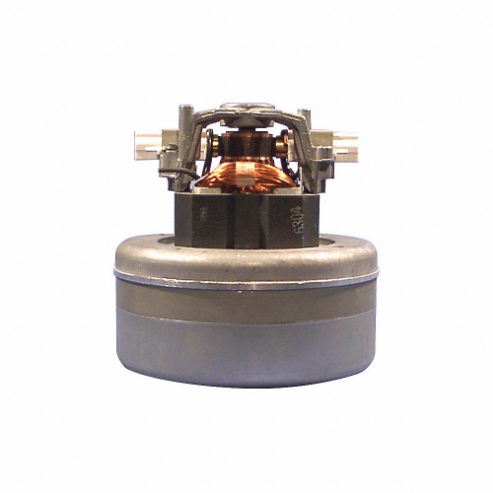

AMETEK LAMB 116311-01 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AC2QMK 2M192 116311-01120V ACNot Applicable95 CFM245 W5 25/32"1833384-51Traditional Lamb€208.29
AMETEK LAMB 115744 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AC2QMM 2M198 115744120V ACNot Applicable98 CFM257 W5 3/4"1833384-50Traditional Lamb€239.41
AMETEK LAMB 116227-00 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 2 Speed, 120VAC | AC2QMN 2M199 116227-00120V AC2 Speed107 CFM316 W5 15/16"2833384-51Traditional Lamb€254.96
AMETEK LAMB 115750 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AC2QMT 2M262 115750120V ACNot Applicable98.7 CFM257 W5 25/32"1833326-51Traditional Lamb€255.11
AMETEK LAMB 115737 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AC2QMU 2M263 115737120V ACNot Applicable99 CFM260 W5 3/4"1833326-51Traditional Lamb€221.04
AMETEK LAMB 116457-00 Vacuum Motor, Thru flow, 5.7 Inch Body Dia., 2 Stage, 1 Speed, 120VAC | AC2QNC 2M420 116457-00120V ACNot Applicable94 CFM241 W5 25/32"1833384-50Traditional Lamb€235.02
