AMERICAN DRILL BUSHING EN34614 Hoist Ring, 1900Kg Load Capacity, M16x2.0 Thread Size, 80 Nm Torque | CD6KNU

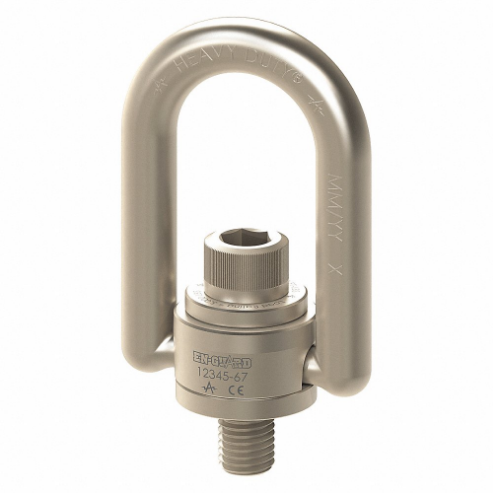

ADB HOIST RINGS MFG. EN34614 Hoist Ring, 1900Kg Load Capacity, M16x2.0 Thread Size, 80 Nm Torque

Item: CD6KNUModel: EN34614Cross Ref: 39RJ68
Check Availability
In Stock

Get it by Tuesday, Dec 23

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€209.25
10.00% off
€188.32 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Hoist Ring
Bail Inside Length 2 1/2"
Bail Inside Width 1 7/8"
Bail Thickness 3/4"
Color Silver
Finish Nickel
Grade Grade 4140
Hardware Included Removable Bolt
Hoist Ring Type Pivot, Swivel
Load Capacity 1900 Kg
Material Alloy Steel
Maximum Operating Temperature 400°F
Minimum Installation Torque 59 lbs.-ft.
Minimum Operating Temperature -20°F
Mount Type Screw On
Operation Lifting, Pulling
Overall Length 3 1/2"
Overall Width 3 1/2"
Pivot 180°
Pivot Angle 180°
Rotate Angle 360°
Standards Ansi/Asme B30.26
Swivel Angle 360°
System Of Measurement Metric
Thread Size M16 x 2
Torque 80 N-m
Usable Thread Length 1"
Working Load Limit 4185 lbs.

Shipping Info:

Ship weight (kg) 1.08
Ship height (cm)16
Ship length (cm)8.89
Ship width (cm)8.89
Country of OriginUS

Features:

  • Forged and Machined High Strength Alloy Steel Hoist Ring
  • Corrosion Resistant Plating ??Electroless Nickel (AMS-C-26074 Class 1 Grade B)
  • 200% Proof Load Tested
  • Individually Serialized
  • Other Standard and Metric Sizes Available
  • Select Sizes from 550-30,000 lbs
  • Swivels 360?, Pivots 180?
  • Easily disassembled & reassembled for inspection
  • Compiles with ASME-B30.26
  • 5:1 Design Factor
  • Unlike eye bolts, swivel hoist rings maintain full capacity at 0-90 degrees from the bolt axis.

Product Variants

ProductModelMaterialThread SizeSystem Of MeasurementPivotSwivel AngleFinishLoad CapacityPrice
AMERICAN DRILL BUSHING EN33112 Hoist Ring, 550 lbs. Load Capacity, 1/4-20 Thread Size, 5 ft. lbs. Torque | CD6KNB EN33112Alloy Steel1/4"-20Imperial180°360°Nickel Plated550 lbs.€156.73
AMERICAN DRILL BUSHING EN33212 Hoist Ring, 800 lbs. Load Capacity, 5/16-18 Thread Size, 7 ft. lbs. Torque | CD6KNC EN33212Alloy Steel5/16"-18Imperial180°360°Nickel Plated800 lbs.€156.72
AMERICAN DRILL BUSHING EN33312 Hoist Ring, 1000 lbs. Load Capacity, 3/8-16 Thread Size, 12 ft. lbs. Torque | CD6KND EN33312Alloy Steel3/8"-16Imperial180°360°Nickel Plated1000 lbs.€146.90
AMERICAN DRILL BUSHING EN33512 Hoist Ring, 2500 lbs. Load Capacity, 1/2-13 Thread Size, 28 ft. lbs. Torque | CD6KNE EN33512Alloy Steel1/2"-13Imperial180°360°Nickel Plated2500 lbs.€185.29
AMERICAN DRILL BUSHING EN33614 Hoist Ring, 4000 lbs. Load Capacity, 5/8-11 Thread Size, 60 ft. lbs. Torque | CD6KNF EN33614Alloy Steel5/8"-11Imperial180°360°Nickel Plated4000 lbs.€188.22
AMERICAN DRILL BUSHING EN33714 Hoist Ring, 5000 lbs. Load Capacity, 3/4-10 Thread Size, 100 ft. lbs. Torque | CD6KNG EN33714Alloy Steel3/4"-10Imperial180°360°Nickel Plated5000 lbs.€188.10
AMERICAN DRILL BUSHING EN33102 Hoist Ring, 7000 lbs. Load Capacity, 3/4-10 Thread Size, 100 ft. lbs. Torque | CD6KNH EN33102Alloy Steel3/4"-10Imperial180°360°Nickel Plated7000 lbs.€463.17
