ADB HOIST RINGS MFG.
See our 856 reviews on
AMERICAN DRILL BUSHING EN33102 Hoist Ring, 7000 lbs. Load Capacity, 3/4-10 Thread Size, 100 ft. lbs. Torque | CD6KNH

ADB HOIST RINGS MFG. EN33102 Hoist Ring, 7000 lbs. Load Capacity, 3/4-10 Thread Size, 100 ft. lbs. Torque

Item: CD6KNHModel: EN33102Cross Ref: 39RJ05
Check Availability
In Stock

Get it by Tuesday, Dec 23

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€463.17
10.00% off
€416.86 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Hoist Ring
Bail Inside Length 3 5/8"
Bail Inside Width 2 3/4"
Bail Thickness 1"
Color Silver
Finish Nickel Plated
Grade Grade 4140
Hardware Included Removable Bolt
Hoist Ring Type Pivot, Swivel
Load Capacity 7000 lbs.
Material Alloy Steel
Maximum Operating Temperature 400°F
Minimum Installation Torque 100 lbs.-ft.
Minimum Operating Temperature -20°F
Mount Type Screw On
Operation Lifting, Pulling
Overall Length 5 1/8"
Overall Width 5 1/8"
Pivot 180°
Pivot Angle 180°
Rotate Angle 360°
Standards Ansi/Asme B30.26
Swivel Angle 360°
System Of Measurement Imperial
Thread Projection 1 1/5"
Thread Size 3/4"-10
Torque 100 lbs.-ft.
Usable Thread Length 1 1/4"
Working Load Limit 7000 lbs.

Shipping Info:

Ship weight (kg) 3.31
Ship height (cm)24.31
Ship length (cm)13.02
Ship width (cm)13.02
Country of OriginUS

Features:

  • Forged and Machined High Strength Alloy Steel Hoist Ring
  • Corrosion Resistant Plating ??Electroless Nickel (AMS-C-26074 Class 1 Grade B)
  • 200% Proof Load Tested
  • Individually Serialized
  • Other Standard and Metric Sizes Available
  • Select Sizes from 550-30,000 lbs
  • Swivels 360?, Pivots 180?
  • Easily disassembled & reassembled for inspection
  • Compiles with ASME-B30.26
  • 5:1 Design Factor
  • Unlike eye bolts, swivel hoist rings maintain full capacity at 0-90 degrees from the bolt axis.

Product Variants

ProductModelMaterialThread SizeSystem Of MeasurementPivotSwivel AngleFinishLoad CapacityPrice

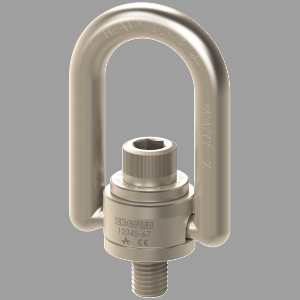

AMERICAN DRILL BUSHING EN33112 Hoist Ring, 550 lbs. Load Capacity, 1/4-20 Thread Size, 5 ft. lbs. Torque | CD6KNB EN33112Alloy Steel1/4"-20Imperial180°360°Nickel Plated550 lbs.€156.73
AMERICAN DRILL BUSHING EN33212 Hoist Ring, 800 lbs. Load Capacity, 5/16-18 Thread Size, 7 ft. lbs. Torque | CD6KNC EN33212Alloy Steel5/16"-18Imperial180°360°Nickel Plated800 lbs.€156.72
AMERICAN DRILL BUSHING EN33312 Hoist Ring, 1000 lbs. Load Capacity, 3/8-16 Thread Size, 12 ft. lbs. Torque | CD6KND EN33312Alloy Steel3/8"-16Imperial180°360°Nickel Plated1000 lbs.€146.90
AMERICAN DRILL BUSHING EN33512 Hoist Ring, 2500 lbs. Load Capacity, 1/2-13 Thread Size, 28 ft. lbs. Torque | CD6KNE EN33512Alloy Steel1/2"-13Imperial180°360°Nickel Plated2500 lbs.€185.29
AMERICAN DRILL BUSHING EN33614 Hoist Ring, 4000 lbs. Load Capacity, 5/8-11 Thread Size, 60 ft. lbs. Torque | CD6KNF EN33614Alloy Steel5/8"-11Imperial180°360°Nickel Plated4000 lbs.€188.22
AMERICAN DRILL BUSHING EN33714 Hoist Ring, 5000 lbs. Load Capacity, 3/4-10 Thread Size, 100 ft. lbs. Torque | CD6KNG EN33714Alloy Steel3/4"-10Imperial180°360°Nickel Plated5000 lbs.€188.10
AMERICAN DRILL BUSHING EN33104 Hoist Ring, 8000 lbs. Load Capacity, 7/8-9 Thread Size, 160 ft. lbs. Torque | CD6KNJ EN33104Alloy Steel7/8"-9Imperial180°360°Nickel Plated8000 lbs.€463.17
