ALBION CASTERS MWT-SS6510L Plate Caster Kit 150 Lb 3 Inch Diameter
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€18.02 /pkg. of 4
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster Kit |
| Application | Tool Box |
| Bearing Type | Single Ball |
| Brake Type | Side Cam |
| Caster Brake Included | Yes |
| Caster Brake Type | Side Pedal Brake |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 0 lbs. to 299 lbs. |
| Caster Material | Polypropylene |
| Caster Product Group | Plate Caster Kit |
| Caster Sub-type | Rigid, Swivel |
| Caster Type | Rigid, Swivel |
| Caster Wheel Material | Polypropylene |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Polypropylene |
| Durometer | 65 Shore D |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | D |
| Includes | Swivel, Swivel With Brake, (2) Rigid, Hardware |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 15/16" x 2 1/8" |
| Load Rating | 150 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 1/4" |
| Mounting Height | 3 9/16" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 1 15/16" x 2 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 1 15/16" X 2 5/8" ( D ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 15/16" x 2 1/8" |
| Plate Size | 1 15/16" x 2 5/8" |
| Plate Thickness | 1/8" |
| Plate Type | D |
| Raceway Type | Single Ball |
| Standards | Ansi Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 2 35/64" |
| Tread Shape | Standard |
| Wheel Bearing Type | Plain |
| Wheel Bearings | Plain Bore |
| Wheel Color | Black |
| Wheel Core Material | Plastic |
| Wheel Diameter | 3" |
| Wheel Material | Polypropylene |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 65 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Polyolefin |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 8.89 |
| HS code | 8716900000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Load Rating | Mounting Height | Mounting Plate Size | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Caster Brake Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

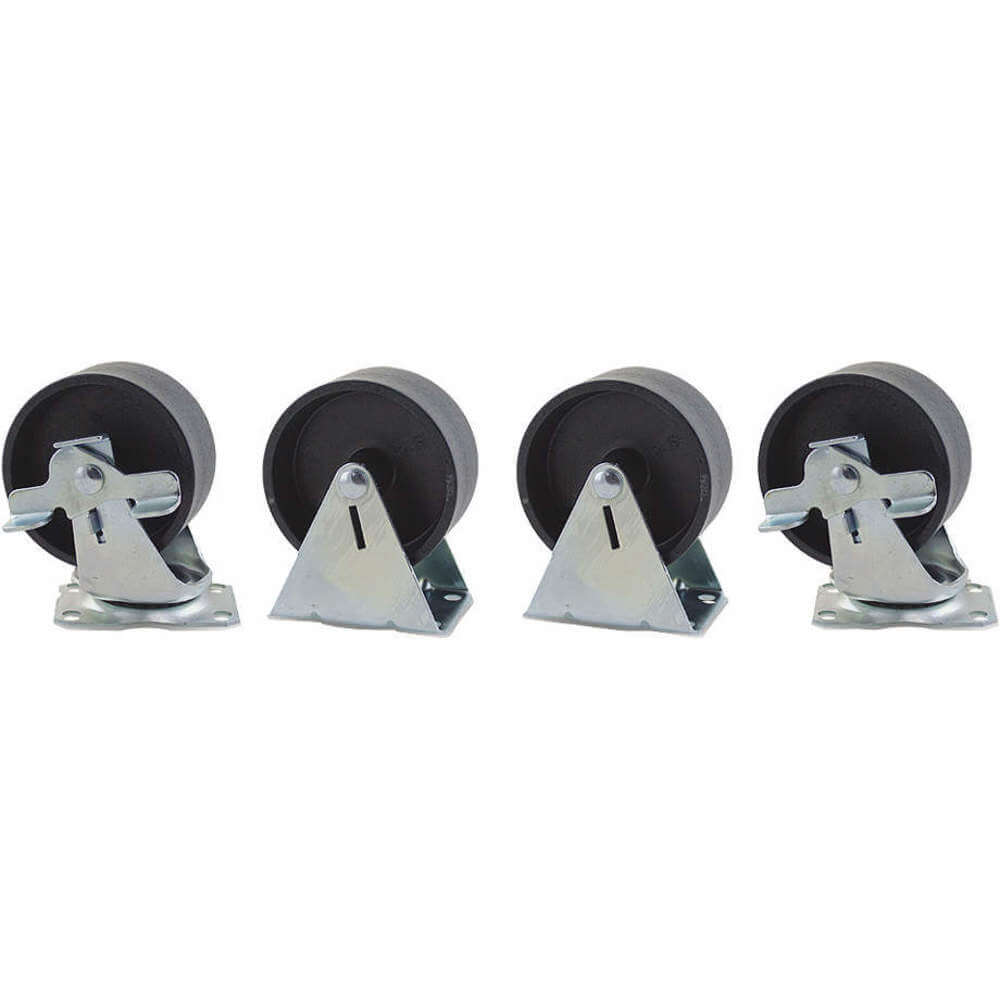

KITDCPB04241001G | 1 3/4" x 3" | 1 3/4" x 3" | 180 lbs. | 4 7/8" | 2 3/4" x 3 5/8", 2 3/4" x 4" | Rigid, Swivel | D | Side Pedal Brake | 4 | €36.22 |
