ALBION CASTERS 310FR08501SG Kingpinless Swivel Caster 4100 Lb 8 Inch Diameter
Get it by Wednesday, Dec 24
10.00% off
€278.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Application | Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies |
| Bearing Type | Single Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 3000 lbs. to 5999 lbs. |
| Caster Material | Ductile Cast Iron |
| Caster Product Group | Kingpinless Caster |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Kingpinless Swivel |
| Caster Wheel Material | Ductile Iron |
| Core Color | Black |
| Core Material | Ductile Cast Iron |
| Durometer | 65K psi |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | A |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Rating | 4100 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 10 1/8" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 4 1/2" x 6 1/4" |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" X 6 1/4" ( A ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | Up To 800°F |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 10 1/8" |
| Plate Size | 4 1/2" x 6 1/4" |
| Plate Thickness | 0.312" |
| Plate Type | A |
| Raceway Type | Single Ball |
| Standards | Icwm |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 6 1/8" |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Bearings | Roller |
| Wheel Color | Black |
| Wheel Core Material | Ductile Iron |
| Wheel Diameter | 8" |
| Wheel Material | Ductile Cast Iron |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | Rockwell 80 B |
| Wheel/tread Hardness Rating | Extra Hard |
| Wheel/tread Material | Ductile Iron |
Shipping Info:
| Ship weight (kg) | 14.18 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 25.4 |
| HS code | 8716903000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Caster Load Rating Range | Load Rating | Caster Brake Type | Mounting Height | Mounting Plate Bolt Hole Pattern | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
110FR05201SG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | 1000 lbs. to 2999 lbs. | 1500 lbs. | No Brake Included | 6 1/2" | B | €120.14 | |
|
110FR06201SG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | 1000 lbs. to 2999 lbs. | 1400 lbs. | No Brake Included | 7 1/2" | B | €217.48 | |
|
110FR08201SG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | 1000 lbs. to 2999 lbs. | 1400 lbs. | No Brake Included | 10 1/8" | B | €146.97 | |
 |

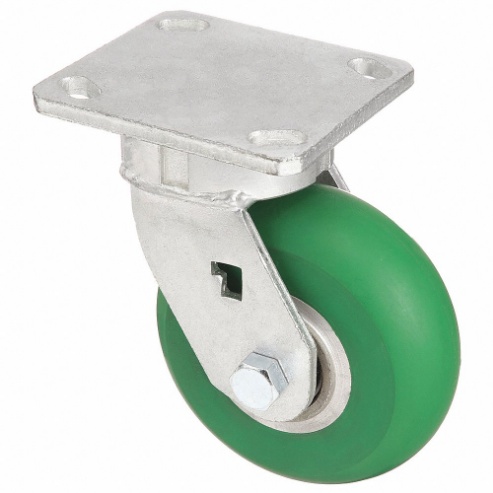

110pm05228s | 3" x 3" | 2 5/8" x 3 5/8" | Precision Ball | 1000 lbs. to 2999 lbs. | 1000 lbs. | No Brake Included | 6 1/2" | B | €213.39 | |
 |
110XA04201SG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | 300 lbs. to 999 lbs. | 600 lbs. | No Brake | 5 5/8" | - | €101.09 | |
|
110XA05201SG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | 300 lbs. to 999 lbs. | 750 lbs. | No Brake Included | 6 1/2" | B | €101.99 | |
|
110XA06201SG | 3" x 3" | 2 5/8" x 3 5/8" | Roller | 300 lbs. to 999 lbs. | 900 lbs. | No Brake Included | 7 1/2" | B | €314.24 |
