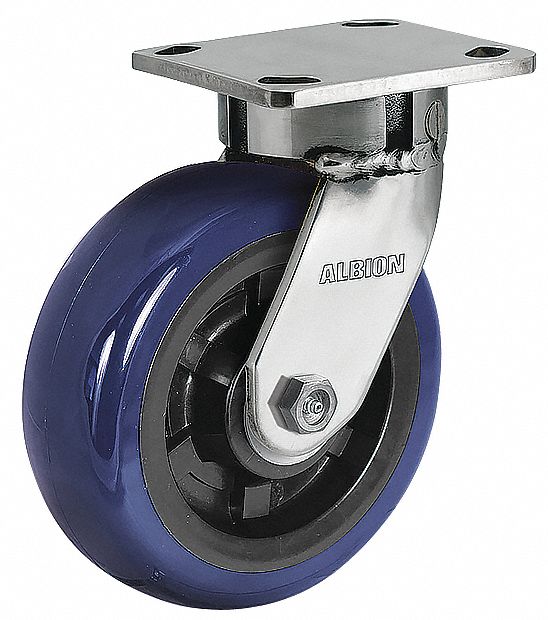

ALBION CASTERS 120EG04229S Corrosion-Resistant Kingpinless Plate Caster, Swivel, Polyurethane, 600 Lbs. Capacity, 4 Inch Wheel Dia.
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€342.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Conveyor-Drawn Tow-Trucks, Heavy Dty Battery Racks, Production Dollies, Heavy Duty Dough Troughs |
| Bearing Material | Stainless Steel |
| Bearing Type | Stainless Pedestal Precision Ball |
| Brake Type | Not Available |
| Capacity | 600 lbs. |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Stainless Steel |
| Caster Material | Stainless Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Caster Type | Swivel |
| Core Color | Black |
| Core Material | Polypropylene |
| Fastening Size | 4 1/2" x 4" |
| Fastening Type | Top Plate Swivel |
| Frame Color | Stainless Steel |
| Frame Material | Stainless Steel |
| Hardness | 95 Shore A |
| Hole Pattern | B |
| Hub Length | 2 3/16" |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Load Rating | 600 lbs. |
| Load Rating Range | 300 lbs. to 999 lbs. |
| Mount Height | 5.625" |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 5 5/8" |
| Mounting Plate | 4" x 4 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4.5" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Mounting Type | Plate |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +180°F |
| Outside Bolt Hole Spacing | 3" x 3 5/8" |
| Raceway Type | Precision Ball Bearing |
| Swivel Construction | Kingpin |
| Swivel Lead | 1.1875 |
| Swivel Lock Type | No Swivel Lock Included |
| Swivel Raceway Type | Precision Ball |
| Swivel Radius | 3.1875" |
| Tread Shape | Standard |
| Tread Width | 2" |
| Wheel Bearing Material | Stainless Steel |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Blue |
| Wheel Core Material | Polypropylene |
| Wheel Diameter | 4" |
| Wheel Face | Crowned Tread |
| Wheel Material | Polyurethane |
| Wheel Type | EG |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 2.34 |
| Country of Origin | China |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel/tread Material | Load Rating | Mounting Height | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

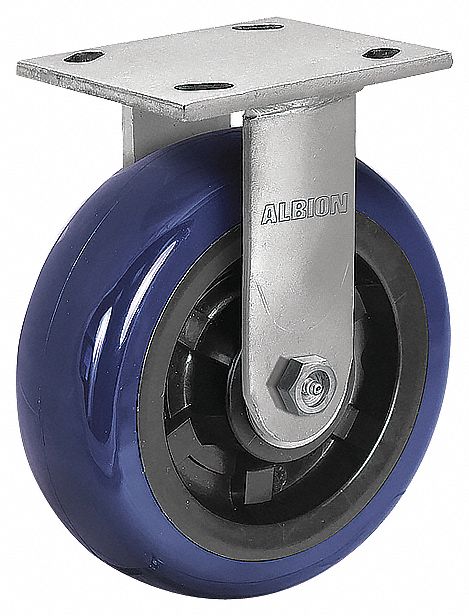

120EG04229R | Rigid | B | 2 5/8" x 3 5/8" | 3" x 3 5/8" | Polyurethane | 600 lbs. | 5 5/8" | 4" x 4.5" | €267.25 | |
|
120EG05229S | Swivel | B | 2 5/8" x 3 5/8" | 3" x 3 5/8" | Polyurethane | 900 lbs. | 6 1/2" | 4" x 4.5" | €350.06 | |
|
120EG06228R | Rigid | B | 2 5/8" x 3 5/8" | 3" x 3 5/8" | Polyurethane | 1100 lbs. | 7 1/2" | 4" x 4 1/2" | €424.50 | |
 |

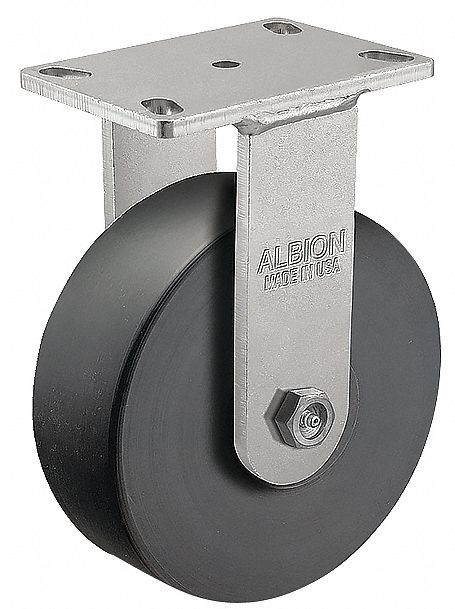

310NX08528R | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | Polymer | 4100 lbs. | 10 1/8" | 4 1/2" x 6 1/4" | €632.65 | |
|
310NX10528R | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | Polymer | 4100 lbs. | 11 1/2" | 4 1/2" x 6 1/4" | €815.77 | |
 |

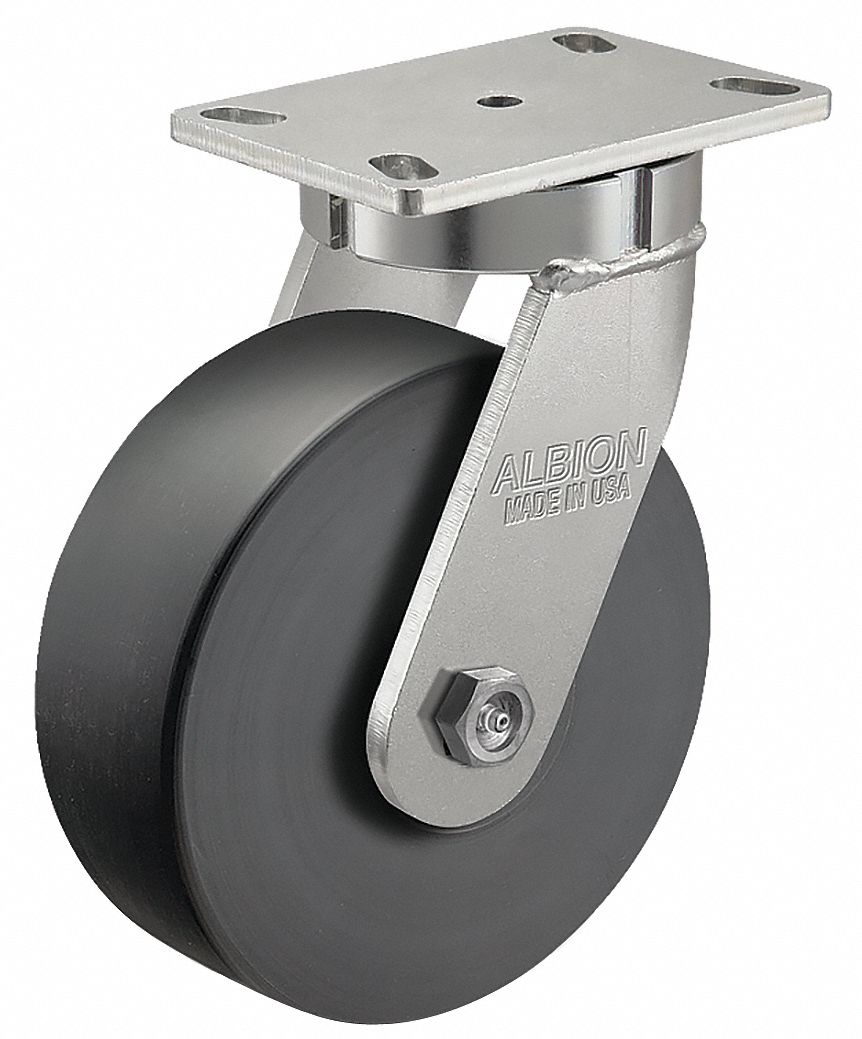

310NX10528S | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | Polymer | 4100 lbs. | 11 1/2" | 4 1/2" x 6 1/4" | €920.38 |
