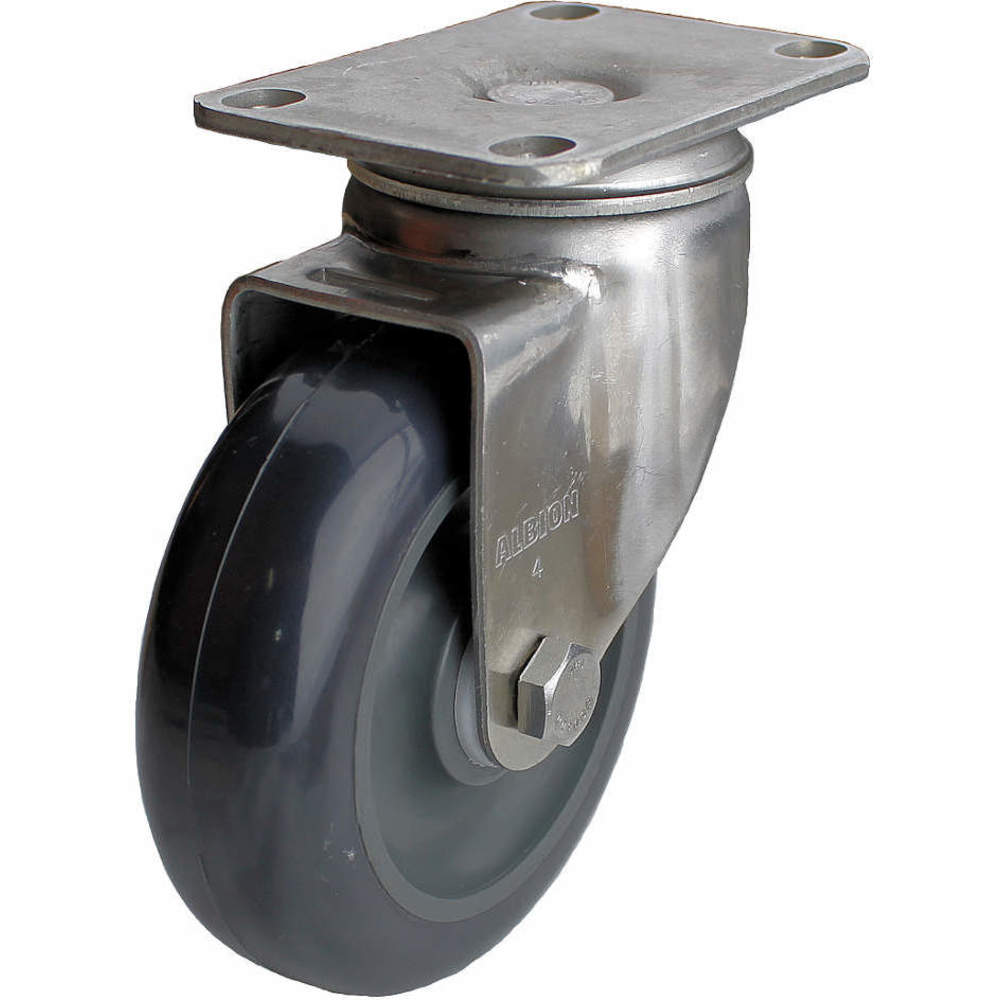

ALBION CASTERS 04XA03051SSS01GN Swivel Plate Caster 300 Lb 3 Inch Diameter
3" Dia
300 lbs.
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€48.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Plate Caster |
| Application | Food Service, Hospitals, Laboratories, Pharmaceuticals |
| Bearing Type | Double Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Stainless Steel |
| Caster Load Rating | 300 lbs. to 999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Beige |
| Core Material | Polyolefin |
| Durometer | 55 Shore D |
| Extended Lead | No |
| Frame Finish | Polished |
| Frame Material | Stainless Steel |
| Hole Pattern | C |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 1 3/4" x 2 13/16" |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 4 1/4" |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 2 1/2" x 3 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 1/2" X 3 5/8" ( C ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Operating Temp. | -40°F to +180°F |
| Outside Bolt Hole Spacing | 1 3/4" x 3 1/16" |
| Overall Height | 4 1/4" |
| Plate Size | 2 1/2" x 3 5/8" |
| Plate Thickness | 0.138" |
| Plate Type | C |
| Raceway Type | Double Ball |
| Replacement Wheel | P-UP-030X013/050D |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 0.0" |
| Tread Shape | Standard |
| Wheel Bearing Material | Delrin |
| Wheel Bearing Type | Delrin |
| Wheel Color | Gray |
| Wheel Core Material | Plastic |
| Wheel Dia. | 3" |
| Wheel Material | Polyurethane |
| Wheel Width | 1 1/4" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 55 Shore D , Hard |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 6.1 |
| HS code | 8716900000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Dia. | Wheel Bearing Type | Caster Brake Type | Wheel/tread Material | Mounting Height | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20PB03201SG | 2 3/8" x 3 3/8" | 2 3/8" x 3 3/8" | 3" | Roller | No Brake Included | Polypropylene | 4 1/16" | 3 1/8" x 4 1/8" | €19.76 | |
 |
04XA04051SPREVG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 4" | Delrin | No Brake Included | Polyurethane | 5 1/8" | 2 1/2" x 3 5/8" | €54.54 | |
|
04XA05051SPREVG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 5" | Delrin | No Brake Included | Polyurethane | 6 3/16" | 2 1/2" x 3 5/8" | €60.30 | |
 |
P2XR03028SG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 3" | Precision Ball | No Brake Included | Thermoplastic Rubber | 4 1/4" | 2 1/2" x 3 5/8" | €30.40 | |
|
P2XR03X28SG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 3 1/2" | - | No Brake Included | Thermoplastic Rubber | 4 11/16" | 2 1/2" x 3 5/8" | €46.83 | |
|
P2XR05028SG | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 5" | Precision Ball | No Brake Included | Thermoplastic Rubber | 6 3/16" | 2 1/2" x 3 5/8" | €36.56 | |
 |
05XS04251SPREVG | 3" x 3" | 2 5/8" x 3 5/8" | 4" | Delrin | No Brake Included | Thermoplastic Rubber | 5 5/8" | 4" x 4 1/2" | €219.01 |
