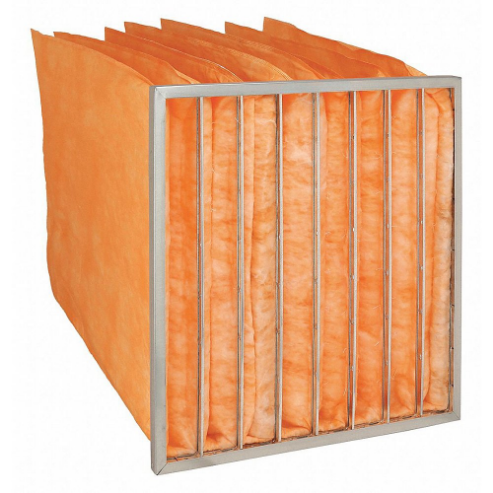

AIR HANDLER 5W441 Pocket Air Filter Fiberglass 24 x 24 x 29 Inch
Get it by Tuesday, Dec 23
10.00% off
€98.50 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pocket Air Filter |
| Actual Depth | 29" |
| Actual Filter Size | 23 3/8" x 23 3/8" x 29" |
| Actual Height | 23 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 2000 CFM |
| Air Flow Rate | 500 FPM |
| Capacity Cfm | 2000 CFM |
| Filter Efficiency | 65% |
| Filter Efficiency - Air Filters | 60% to 65% |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Final Resistance | 1 in. wc |
| Frame Finish | Galvanized |
| Frame Or Header Material | Galvanized Steel |
| Frame Size | 0.812" |
| Initial Resistance | 0.3 in. wc |
| Initial Resistance @ 300 Fpm | 0.18 in. wc |
| Initial Resistance @ 500 Fpm | 0.3 in. wc |
| Material | Fiberglass |
| Material Thickness | 24 ga. |
| Max. Temp. | 190°F |
| Max. Velocity | 500 FPM |
| Media Area | 90 sq. ft. |
| Media Color | Orange |
| Media Material | Fiberglass |
| Nominal Depth | 29" |
| Nominal Filter Size | 24" x 24" x 29" |
| Nominal Height | 24" |
| Number Of Pockets | 8 |
| Performance Rating | MERV 11 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 1 µm to 3 µm |
| Standards | Ul 900 |
| Style - Air Filters | Bag |
Shipping Info:
| Ship weight (kg) | 2.16 |
| Ship height (cm) | 61.72 |
| Ship length (cm) | 65.53 |
| Ship width (cm) | 26.16 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Nominal Filter Size | Media Material | Number Of Pockets | Max. Temp. | Nominal Depth | Capacity Cfm | Actual Depth | Actual Filter Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2DVU2 | 24" x 24" x 29" | Fiberglass | 10 | 150°F | 29" | 2000 CFM | 29" | 23 3/8" x 23 3/8" x 29" | €109.49 | |
 |
2DVU4 | 24" x 24" x 36" | Fiberglass | 6 | 150°F | 36" | 2000 CFM | 36" | 23 3/8" x 23 3/8" x 36" | €117.32 | |
 |
2JVJ5 | 24" x 24" x 15" | Synthetic | 8 | 150°F | 15" | 2000 CFM | 15" | 23 3/8" x 23 3/8" x 15" | €71.85 | |
 |
2JVK4 | 24" x 24" x 15" | Synthetic | 6 | 150°F | 15" | 2000 CFM | 15" | 23 3/8" x 23 3/8" x 15" | €64.93 | |
 |
2JVP3 | 24" x 24" x 36" | Synthetic | 6 | 150°F | - | 2000 CFM | 36" | 23 3/8" x 23 3/8" x 36" | €80.61 | |
 |

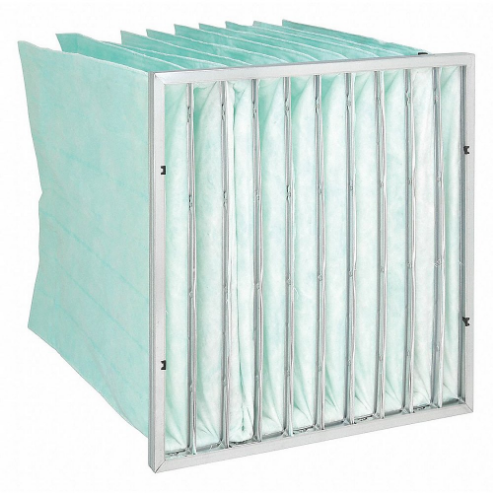

2JVZ9 | 24" x 24" x 22" | Synthetic | 10 | 150°F | 22" | 2000 CFM | 22" | 23 3/8" x 23 3/8" x 22" | €85.51 | |
 |
5E854 | 24" x 24" x 29" | Fiberglass | 6 | 190°F | 29" | 2000 CFM | 29" | 23 3/8" x 23 3/8" x 29" | €84.80 |
