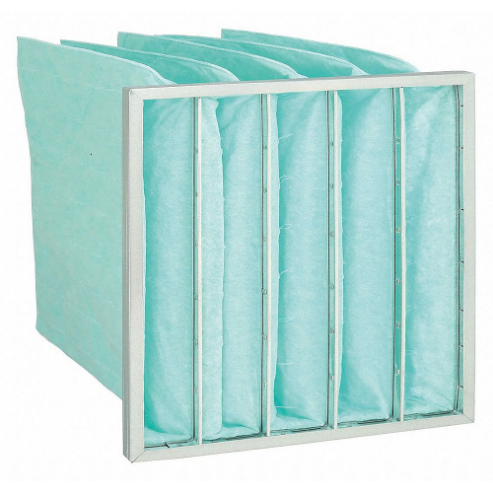

AIR HANDLER 5M387 Pocket Air Filter Synthetic 20 x 20 x 30 Inch
Get it by Monday, Dec 22
10.00% off
€64.64 /unit
This product can only be shipped in multiples of 4Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pocket Air Filter |
| Actual Depth | 30" |
| Actual Filter Size | 19 3/8" x 19 3/8" x 30" |
| Actual Height | 19 3/8" |
| Actual Width | 19 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 833 CFM |
| Air Flow @ 500 Fpm | 1389 CFM |
| Air Flow Rate | 500 FPM |
| Capacity Cfm | 1000 CFM |
| Filter Efficiency | 65% |
| Filter Efficiency - Air Filters | 60% to 65% |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Final Resistance | 1 in. wc |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Frame Or Header Material | Galvanized Steel |
| Frame Size | 0.812" |
| Initial Resistance | 0.35 in. wc |
| Initial Resistance @ 300 Fpm | 0.24 in. wc |
| Initial Resistance @ 500 Fpm | 0.4 in. wc |
| Material | Synthetic |
| Material Thickness | 24 ga. |
| Max. Temp. | 190°F |
| Max. Velocity | 500 FPM |
| Media Area | 41 sq. ft. |
| Media Color | Orange |
| Media Material | Synthetic |
| Nominal Depth | 30" |
| Nominal Filter Size | 20" x 20" x 30" |
| Number Of Pockets | 5 |
| Performance Rating | MERV 11 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 1 µm to 3 µm |
| Standards | Ul 900 |
| Style - Air Filters | Bag |
Shipping Info:
| Ship weight (kg) | 1.55 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 53.09 |
| Ship width (cm) | 26.42 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Media Color | Number Of Pockets | Max. Temp. | Nominal Filter Size | Performance Rating | Media Material | Nominal Height | Nominal Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2DVT9 | Orange | 12 | 150°F | 24" x 24" x 15" | MERV 11 | Fiberglass | 24" | 24" | €127.75 | |
 |
2GGA1 | Orange | 6 | 150°F | 24" x 20" x 22" | MERV 11 | Fiberglass | 24" | 20" | €78.48 | |
 |
2GGA5 | Green | 6 | 150°F | 20" x 20" x 22" | MERV 11 | Fiberglass | 20" | 20" | €69.91 | |
 |
2GGC5 | Orange | 8 | 150°F | - | - | - | 20" | 24" | €178.46 | |
|
2GGU4 | Orange | 5 | 150°F | 20" x 20" x 22" | MERV 11 | Fiberglass | 20" | 20" | €72.27 | |
|
2GHF2 | Orange | 4 | 150°F | 24" x 12" x 29" | MERV 11 | Fiberglass | 24" | 12" | €74.40 | |
|
2GHG1 | Orange | 3 | 150°F | 24" x 12" x 15" | MERV 11 | Fiberglass | 24" | 12" | €79.44 |
