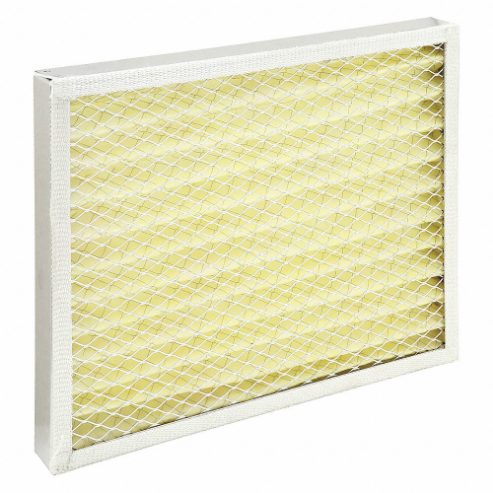

AIR HANDLER 5M319 Pleated Air Filter, 24 x 24 x 2 Inch Nominal Filter Size, MERV 7, High Capacity, Synthetic, Galvanized Steel
Get it by Friday, Aug 14
5.00% off
€75.97 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | High Capacity Pleated Filter |
| Actual Depth | 1 7/8" |
| Actual Filter Size | 23 3/8" x 23 3/8" x 1 7/8" |
| Actual Height | 23.375" |
| Actual Width | 23 3/8" |
| Air Filter Capacity | High Capacity |
| Air Flow @ 500 Fpm | 2000 CFM |
| Airflow @ 300 Fpm | 1200 CFM |
| Common Applications | High Temperature |
| Filter Efficiency (air Filters) | 35% |
| Filter Frame Color | White |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Final Recommended Resistance | 1 in. wc |
| Frame | Yes |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Frame Or Header Material | Galvanized Steel |
| Gasket Location | Downstream Face |
| Gasket Material | Fiberglass |
| High Initial Resistance | 0.3 in. wc |
| High Velocity | 500 FPM |
| Initial Resistance @ 300 Fpm | 0.22 in. wc |
| Initial Resistance @ 500 Fpm | 0.37 in. wc |
| Material Thickness | 24 ga. |
| Max. Temp. | 400°F |
| Max. Velocity | 500 FPM |
| Media Area | 12.7 sq. ft. |
| Media Color | White |
| Media Material | Synthetic |
| Nominal Depth | 2" |
| Nominal Filter Size | 24" x 24" x 2" |
| Nominal Height | 24" |
| Nominal Width | 24" |
| Performance Rating (meets Or Exceeds) | MERV 7 |
| Pleats Per Linear Feet | 10 |
| Pleats Per Linear Foot | 19 |
| Style-air Filters | Panel |
Shipping Info:
| Ship weight (kg) | 1.89 |
| Ship height (cm) | 62.23 |
| Ship length (cm) | 60.45 |
| Ship width (cm) | 59.44 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Nominal Depth | Actual Height | Media Material | Airflow @ 300 Fpm | Media Color | Nominal Filter Size | Pleats Per Linear Feet | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15A722 | 2" | 23 7/8" | Synthetic | 1500 CFM | White | 24" x 30" x 2" | 10 | 180°F | €17.77 | |
 |
1TBE6 | 2" | 17 1/2" | Synthetic | 750 CFM | White | 18" x 20" x 2" | 15 | 180°F | €11.63 | |
 |
1TBE7 | 2" | 17 1/2" | Synthetic | 675 CFM | White | 18" x 18" x 2" | 15 | 180°F | €11.63 | |
|
1TBE9 | 1" | 15 3/4" | Synthetic | 1000 CFM | White | 16" x 30" x 1" | 15 | 180°F | €13.97 | |
 |
21C094 | 1" | 21" | - | - | - | 21" x 21" x 1" | 15 | 180°F | €12.43 | |
 |
21C095 | 1" | 19 1/2" | Synthetic | 917 CFM | White | 20" x 22" x 1" | 16 | 180°F | €12.03 | |
 |
21C096 | 1" | 10" | - | - | - | 10" x 36" x 1" | 15 | 180°F | €10.82 |
