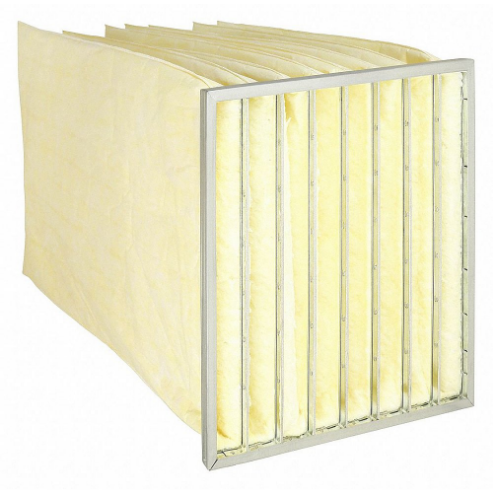

AIR HANDLER 5E836 Pocket Air Filter Fiberglass 24 x 24 x 36 Inch
Get it by Monday, Dec 22
10.00% off
€164.77 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pocket Air Filter |
| Actual Depth | 36" |
| Actual Filter Size | 23 3/8" x 23 3/8" x 36" |
| Actual Height | 23 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 2000 CFM |
| Air Flow Rate | 500 FPM |
| Capacity Cfm | 2000 CFM |
| Filter Efficiency | 95% |
| Filter Efficiency - Air Filters | 90% to 95% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Final Resistance | 1 in. wc |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Frame Or Header Material | Galvanized Steel |
| Frame Size | 0.812" |
| Initial Resistance | 0.4 in. wc |
| Initial Resistance @ 300 Fpm | 0.24 in. wc |
| Initial Resistance @ 500 Fpm | 0.4 in. wc |
| Material | Fiberglass |
| Material Thickness | 24 ga. |
| Max. Temp. | 190°F |
| Max. Velocity | 500 FPM |
| Media Color | Yellow |
| Media Material | Fiberglass |
| Nominal Filter Size | 24" x 24" x 36" |
| Nominal Height | 24" |
| Nominal Width | 24" |
| Number Of Pockets | 8 |
| Performance Rating | MERV 14 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 0.3 µm to 1 µm |
| Standards | Ul 900 |
| Style - Air Filters | Bag |
Shipping Info:
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 60.96 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Media Color | Number Of Pockets | Max. Temp. | Nominal Filter Size | Media Material | Nominal Depth | Nominal Height | Nominal Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2DVX1 | Yellow | 10 | 150°F | 24" x 24" x 22" | Fiberglass | 22" | - | 24" | €142.03 | |
 |
2DVX2 | Yellow | 10 | 150°F | 24" x 24" x 30" | Fiberglass | 30" | - | - | €178.93 | |
 |
2DYK3 | White | 8 | 150°F | 24" x 20" x 22" | Synthetic | 22" | 24" | 20" | €79.60 | |
|
2GFK7 | Yellow | 10 | 150°F | 24" x 24" x 15" | Fiberglass | 15" | - | - | €109.94 | |
 |
2GGG4 | Yellow | 6 | 150°F | - | - | 10" | 24" | 24" | €61.87 | |
 |
2GGV6 | Orange | 5 | 150°F | - | - | 22" | 20" | 24" | €83.85 | |
 |
2GGW6 | Orange | 4 | 150°F | 24" x 12" x 22" | Fiberglass | 22" | 24" | 12" | €85.26 |
