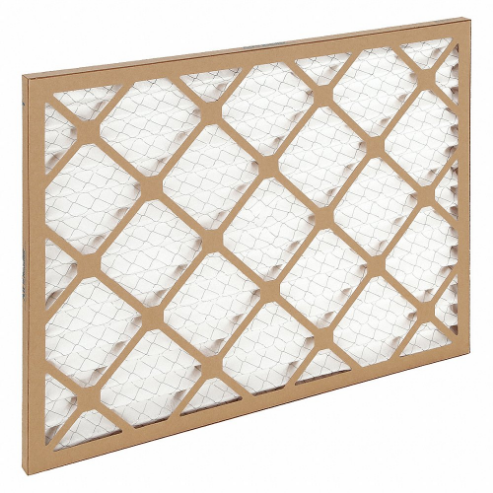

AIR HANDLER 4YUV2 High Capacity Pleated Filter 18 x 24 x 1 Merv10
Get it by Friday, Dec 19
10.00% off
€10.27 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | High Capacity Pleated Filter |
| Actual Depth | 3/4" |
| Actual Filter Size | 17 1/2" x 23 1/2" x 3/4" |
| Actual Height | 17 1/2" |
| Actual Width | 23 1/2" |
| Air Filter Capacity | High Capacity |
| Air Flow @ 300 Fpm | 900 CFM |
| Air Flow @ 500 Fpm | 1500 CFM |
| Common Applications | General Use |
| Filter Efficiency - Air Filters | 55% |
| Filter Frame Color | White |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Final Recommended Resistance | 1 in. wc |
| Frame | Yes |
| Frame Material | Chipboard |
| Frame Or Header Material | Beverage Board |
| Frame Type | Moisture Resistant Die Cut Chipboard |
| High Velocity | 500 FPM |
| Initial Resistance @ 300 Fpm | 0.2 in. wc |
| Initial Resistance @ 500 Fpm | 0.33 in. wc |
| Material Properties | Moisture Resistant Die Cut |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Color | White |
| Media Material | Synthetic |
| Nominal Depth | 1" |
| Nominal Filter Size | 18" x 24" x 1" |
| Nominal Height | 18" |
| Nominal Pleat | 40% |
| Performance Rating (meets Or Exceeds) | MERV 10 |
| Pleats Per Linear Feet | 13 |
| Pleats Per Linear Foot | 22 |
| Style - Air Filters | Panel |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 51.05 |
| Ship width (cm) | 29.72 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Nominal Depth | Nominal Filter Size | Nominal Height | Nominal Width | High Velocity | Actual Height | Actual Filter Size | Air Flow @ 300 Fpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
33E895 | 1" | 17" x 30" x 1" | 17" | - | 500 FPM | 16 1/2" | 16 1/2" x 29 1/2" x 3/4" | 1063 CFM | €24.29 | |
 |
3DVN4 | 2" | 12" x 20" x 2" | - | - | 500 FPM | 11 1/2" | 11 1/2" x 19 1/2" x 1 3/4" | 500 CFM | €15.89 | |
 |
3GRT2 | 2" | 12" x 24" x 2" | - | 24" | 500 FPM | 11.375" | 11 3/8" x 23 3/8" x 1 3/4" | 600 CFM | €23.81 | |
|
3GRT3 | 2" | 14" x 20" x 2" | - | 20" | 500 FPM | 13 1/2" | 13 1/2" x 19 1/2" x 1 3/4" | 583 CFM | €16.73 | |
|
3GRT4 | 2" | 14" x 25" x 2" | - | 25" | 500 FPM | 13 1/2" | 13 1/2" x 24 1/2" x 1 3/4" | 729 CFM | €21.04 | |
|
3GRT5 | 2" | 16" x 20" x 2" | 16" | 20" | 500 FPM | 15 1/2" | 15 1/2" x 19 1/2" x 1 3/4" | 667 CFM | €17.28 | |
|
3GRT6 | 2" | - | 16" | - | 500 FPM | 15.375" | 15 3/8" x 23 3/8" x 1 3/4" | 800 CFM | €19.22 |
