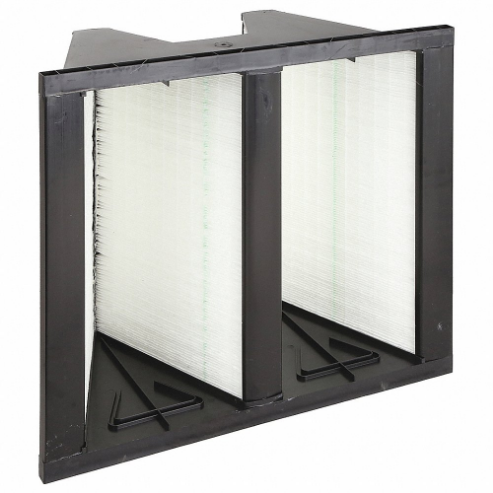

AIR HANDLER 4DKY4 V-bank Minipleat Filter 20x24x12 Merv 14
Get it by Tuesday, Dec 23
10.00% off
€160.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Bank Air Filter |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 19 3/8" x 23 3/8" x 11 1/2" |
| Actual Height | 19 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 1000 CFM |
| Air Flow @ 500 Fpm | 1667 CFM |
| Air Flow @ 625 Fpm | 2083 CFM |
| Air Flow @ 750 Fpm | 2500 CFM |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 95% |
| Filter Efficiency - Air Filters | 95% |
| Filter Pack Enclosure | Plastic Frame |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Final Resistance | 1.5 in. wc |
| Frame Or Header Material | Plastic |
| Initial Resistance | 0.35 in. wc, 0.52 in. wc, 0.70 in. wc |
| Initial Resistance @ 500 Fpm | 0.44 in. wc |
| Max. Air Flow | 1920 CFM |
| Max. Temp. | 160°F |
| Media Area | 85 sq. ft. |
| Media Color | White |
| Media Material | Fiberglass |
| Nominal Depth | 12" |
| Nominal Filter Size | 20" x 24" x 12" |
| Nominal Height | 20" |
| Nominal Width | 24" |
| Number Of Vs | 2 |
| Performance Rating | MERV 14 |
| Recommended Final Resistance | 1.5 in. wc |
| Removes Particles Down To | 0.3 µm to 1 µm |
| Standards | Ul 900 |
| Style - Air Filters | Box |
Shipping Info:
| Ship weight (kg) | 3.94 |
| Ship height (cm) | 53.34 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 33.02 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Details:
- With/Without Gasket (Without Gasket)
Product Variants
| Model | Nominal Filter Size | Performance Rating | Media Material | Nominal Height | Air Flow Rate | Max. Air Flow | Filter Pack Enclosure | Media Area | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11Z791 | 12" x 24" x 12" | MERV 11 | Fiberglass | - | 500/625/750 FPM | 1500 CFM | Plastic Frame | 98 sq. ft. | €183.76 | |
| 11Z793 | 20" x 20" x 12" | MERV 11 | Fiberglass | 20" | 500/625/750 FPM | 2190 CFM | Metal Frame | 135 sq. ft. | €237.80 | |
| 11Z794 | 20" x 24" x 12" | MERV 11 | Fiberglass | 20" | 500/625/750 FPM | 2872 CFM | Plastic Frame | 162 sq. ft. | €251.02 | |
| 11Z795 | 24" x 24" x 12" | MERV 11 | Fiberglass | - | 500/625/750 FPM | 3000 CFM | Plastic Frame | 196 sq. ft. | €311.05 | |
| 11Z796 | 12" x 24" x 12" | MERV 14 | Fiberglass | - | 500/625/750 FPM | 1500 CFM | Plastic Frame | 98 sq. ft. | €170.55 | |
| 11Z798 | 20" x 20" x 12" | MERV 14 | Fiberglass | 20" | 500/625/750 FPM | 2190 CFM | Metal Frame | 135 sq. ft. | €278.20 | |
| 11Z799 | 20" x 24" x 12" | MERV 14 | Fiberglass | - | 500/625/750 FPM | 2872 CFM | Plastic Frame | 162 sq. ft. | €275.32 |
