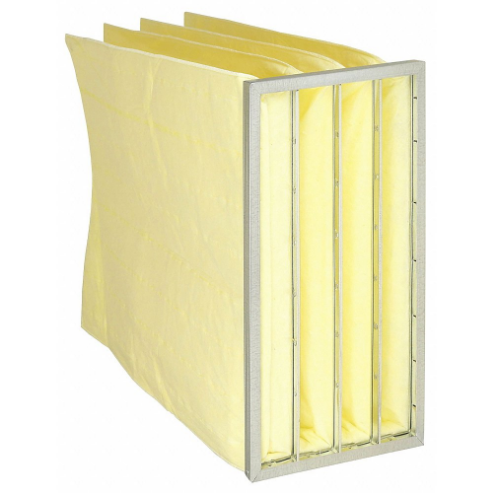

AIR HANDLER 3DVP5 Pocket Air Filter, 24 x 12 x 15 Inch Nominal Filter Size, Yellow, Fiberglass, 4 Pockets, 150 Deg. Max Temp
Get it by Friday, Jul 3
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€59.12 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pocket Air Filter |
| Actual Depth | 15" |
| Actual Filter Size | 23 3/8" x 11 3/8" x 15 |
| Actual Height | 23 3/8" |
| Actual Width | 11 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 500 Fpm | 1000 CFM |
| Airflow @ 300 Fpm | 600 CFM |
| Airflow Rate | 500 FPM |
| Capacity Cfm | 1000 CFM |
| Filter Efficiency | 90% to 95% |
| Filter Efficiency (air Filters) | 90% to 95% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Final Resistance | 1 in. wc |
| Frame Finish | Galvanized |
| Frame Or Header Material | Galvanized Steel |
| Frame Size | 0.812" |
| Initial Resistance @ 300 Fpm | 0.3 in. wc |
| Initial Resistance @ 500 Fpm | 0.5 in. wc |
| Material | Fiberglass |
| Material Thickness | 24 ga. |
| Max. Temp. | 150°F |
| Max. Velocity | 500 FPM |
| Media Area | 20 sq. ft. |
| Media Color | Yellow |
| Media Material | Fiberglass |
| No. Of Pockets | 4 |
| Nominal Depth | 15" |
| Nominal Filter Size | 24" x 12" x 15" |
| Nominal Height | 24" |
| Nominal Width | 12" |
| Performance Rating | MERV 14 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 0.3 µm to 1 µm |
| Standards | Ul 900 |
| Style-air Filters | Bag |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 61.72 |
| Ship length (cm) | 30.99 |
| Ship width (cm) | 26.92 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Nominal Filter Size | Capacity Cfm | Media Area | Actual Filter Size | Actual Width | Air Flow @ 500 Fpm | Performance Rating | Media Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3DVP7 | 24" x 24" x 15" | 2000 CFM | 40 sq. ft. | 23 3/8" x 23 3/8" x 15" | 23 3/8" | 2000 CFM | MERV 14 | Yellow | €96.69 |
