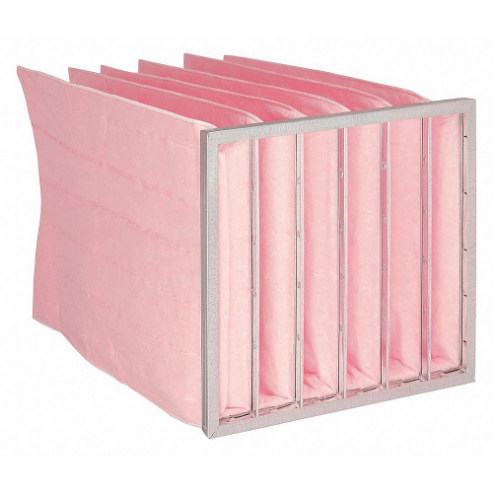

AIR HANDLER 2JVF6 Pocket Air Filter Synthetic 20 x 20 x 29 Inch
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€80.50 /unit
This product can only be shipped in multiples of 4Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pocket Air Filter |
| Actual Depth | 29" |
| Actual Filter Size | 19 3/8" x 19 3/8" x 29" |
| Actual Height | 19 3/8" |
| Actual Width | 19 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 833 CFM |
| Air Flow @ 500 Fpm | 1389 CFM |
| Air Flow Rate | 500 FPM |
| Capacity Cfm | 1200 CFM |
| Filter Efficiency | 85% |
| Filter Efficiency - Air Filters | 80% to 85% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Final Resistance | 1 in. wc |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Frame Or Header Material | Galvanized Steel |
| Frame Size | 0.812" |
| Initial Resistance | 0.34 in. wc |
| Initial Resistance @ 300 Fpm | 0.27 in. wc |
| Initial Resistance @ 500 Fpm | 0.45 in. wc |
| Material | Synthetic |
| Material Thickness | 24 ga. |
| Max. Temp. | 150°F |
| Max. Velocity | 500 FPM |
| Media Area | 54 sq. ft. |
| Media Color | Pink |
| Media Material | Synthetic |
| Nominal Depth | 29" |
| Nominal Filter Size | 20" x 20" x 29" |
| Nominal Height | 20" |
| Nominal Width | 20" |
| Number Of Pockets | 6 |
| Performance Rating | MERV 13 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 0.3 µm to 1 µm |
| Standards | Ul 900 |
| Style - Air Filters | Bag |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Media Color | Number Of Pockets | Max. Temp. | Nominal Filter Size | Media Material | Nominal Height | Nominal Depth | Nominal Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2ACC3 | Pink | 6 | 150°F | 24" x 24" x 12" | Fiberglass | 24" | 12" | 24" | €68.60 | |
 |
2DVU6 | Pink | 10 | 150°F | 24" x 24" x 22" | Fiberglass | 24" | 22" | 24" | €118.07 | |
 |
2DVU7 | Pink | 10 | 150°F | 24" x 24" x 30" | Fiberglass | - | 30" | - | €160.68 | |
|
2GFT7 | Pink | 10 | 150°F | 24" x 24" x 15" | Fiberglass | 24" | 15" | - | €77.54 | |
 |
2GFU2 | Pink | 8 | 150°F | 24" x 24" x 15" | Fiberglass | 24" | 15" | - | €71.67 | |
 |
2GFU6 | Pink | 6 | 150°F | 24" x 12" x 15" | Fiberglass | 24" | 15" | 12" | €73.73 | |
 |
2GGE7 | Pink | 8 | 150°F | 24" x 20" x 29" | Synthetic | 24" | 29" | 20" | €85.18 |
