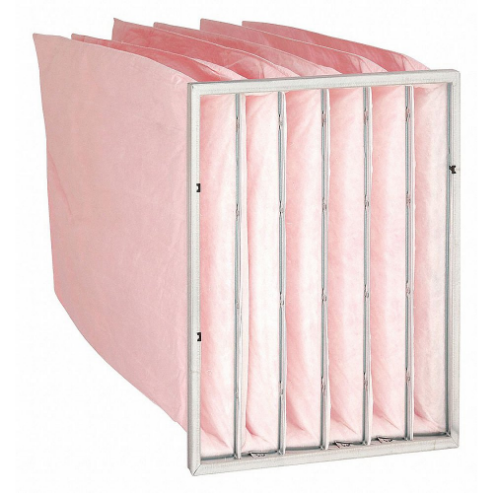

AIR HANDLER 2JVE7 Pocket Air Filter, 24 x 20 x 22 Inch Nominal Filter Size, Pink, Synthetic, 6 Pockets, 150 Deg. Max Temp
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€66.71 /unit
This product can only be shipped in multiples of 4Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pocket Air Filter |
| Actual Depth | 22" |
| Actual Filter Size | 23 3/8" x 11 3/8" x 22 |
| Actual Height | 23 3/8" |
| Actual Width | 19 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 500 Fpm | 1667 CFM |
| Airflow @ 300 Fpm | 1000 CFM |
| Airflow Rate | 500 FPM |
| Capacity Cfm | 1200 CFM |
| Filter Efficiency | 85% |
| Filter Efficiency (air Filters) | 80% to 85% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Final Resistance | 1 in. wc |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Frame Or Header Material | Galvanized Steel |
| Frame Size | 0.812" |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance | 0.35 in. wc |
| Initial Resistance @ 300 Fpm | 0.29 in. wc |
| Initial Resistance @ 500 Fpm | 0.48 in. wc |
| Material | Synthetic |
| Material Thickness | 24 ga. |
| Max. Temp. | 150°F |
| Max. Velocity | 500 FPM |
| Media Area | 46 sq. ft. |
| Media Color | Pink |
| Media Material | Synthetic |
| No. Of Pockets | 6 |
| Nominal Depth | 22" |
| Nominal Filter Size | 24" x 20" x 22" |
| Nominal Height | 24" |
| Nominal Width | 20" |
| Performance Rating | MERV 13 |
| Recommended Final Resistance | 1 in. wc |
| Removes Particles Down To | 0.3 µm to 1 µm |
| Style-air Filters | Bag |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Media Color | Capacity Cfm | Material | Nominal Filter Size | Media Material | No. Of Pockets | Max. Temp. | Actual Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2ACC3 | Pink | 2000 CFM | Fiberglass | 24" x 24" x 12" | Fiberglass | 6 | 150°F | 12" | €71.86 | |
 |
2DVU6 | Pink | 2000 CFM | Fiberglass | 24" x 24" x 22" | Fiberglass | 10 | 150°F | 22" | €130.00 | |
 |
2DVU7 | Pink | 2000 CFM | Fiberglass | 24" x 24" x 30" | Fiberglass | 10 | 150°F | 30" | €134.31 | |
|
2GFT7 | Pink | 2000 CFM | Fiberglass | 24" x 24" x 15" | Fiberglass | 10 | 150°F | 15" | €83.05 | |
 |
2GFU2 | Pink | 2000 CFM | Fiberglass | 24" x 24" x 15" | Fiberglass | 8 | 150°F | 15" | €72.62 | |
 |
2GFU6 | Pink | 1000 CFM | Fiberglass | 24" x 12" x 15" | Fiberglass | 6 | 150°F | 15" | €72.74 | |
 |
2GGE7 | Pink | 1200 CFM | Synthetic | 24" x 20" x 29" | Synthetic | 8 | 150°F | 29" | €76.96 |
