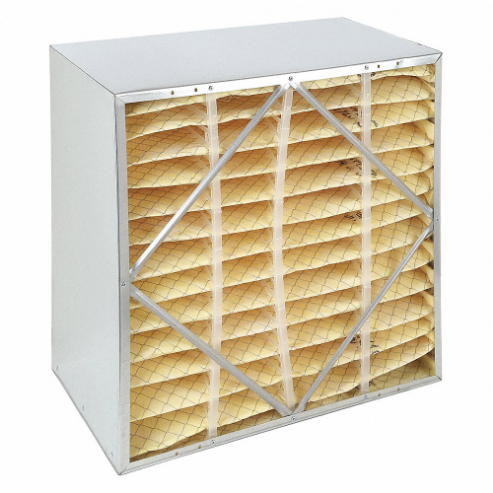

AIR HANDLER 2JUC5 Rigid Cell Filter 20 x 20 x 12 Inch
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€152.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Cell Filter |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 19 3/8" x 19 3/8" x 11 1/2" |
| Actual Height | 19 3/8" |
| Actual Width | 19 3/8" |
| Air Filter Header Type | No Header |
| Air Flow @ 300 Fpm | 833 CFM |
| Air Flow @ 500 Fpm | 1388 CFM |
| Air Flow @ 625 Fpm | 1736 CFM |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 85% |
| Filter Efficiency - Air Filters | 85% |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments |
| Final Recommended Resistance | 1.5 in. wc |
| Frame Or Header Material | Galvanized Steel |
| Frame/header Material | Corrosion Resisitant Steel |
| Header | None |
| Initial Resistance | 0.5 in. wc |
| Initial Resistance @ 300 Fpm | 0.21 in. wc |
| Initial Resistance @ 500 Fpm | 0.35 in. wc |
| Max. Air Flow | 500 FPM |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 33 sq. ft. |
| Media Color | Yellow |
| Media Material | Fiberglass |
| Media Separator Construction | Metal Pleat |
| Nominal Depth | 12" |
| Nominal Filter Size | 20" x 20" x 12" |
| Nominal Height | 20" |
| Nominal Width | 20" |
| Performance Rating | MERV 13 |
| Removes Particles Down To | 0.3 µm to 1 µm |
| Style - Air Filters | Box |
Shipping Info:
| Ship weight (kg) | 5.56 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Product | Model | Nominal Depth | Nominal Filter Size | Air Filter Header Type | Media Material | Air Flow @ 300 Fpm | Nominal Height | Nominal Width | Frame/header Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2GGL9 | 12" | 20" x 24" x 12" | Single Header | Microfiber | 1000 CFM | 20" | 24" | - | €257.86 | |
 |
2GGN4 | 12" | - | - | - | - | 20" | - | - | €236.81 | |
 |
2GGN8 | 6" | 24" x 24" x 6" | Single Header | Microfiber | 1200 CFM | 24" | 24" | - | €192.11 | |
 |
2GGP3 | 6" | 20" x 24" x 6" | Single Header | Microfiber | 1000 CFM | 20" | 24" | - | €174.40 | |
 |
2GGP7 | 6" | 12" x 24" x 6" | Single Header | Microfiber | 600 CFM | 12" | - | - | €128.19 | |
|
2GGR2 | 6" | 20" x 20" x 6" | Single Header | Microfiber | 833 CFM | 20" | 20" | - | €164.46 | |
 |
2GGR6 | 12" | 24" x 24" x 12" | Double Header | Microfiber | 1200 CFM | 24" | 24" | - | €260.76 |
