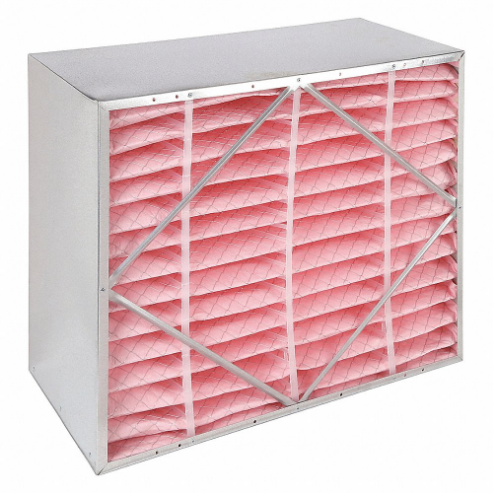

AIR HANDLER 2GHV5 Rigid Cell Filter 20 x 20 x 12 Inch
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€150.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Cell Filter |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 19 3/8" x 19 3/8" x 11 1/2" |
| Actual Height | 19 3/8" |
| Actual Width | 19 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 300 Fpm | 833 CFM |
| Air Flow @ 500 Fpm | 1388 CFM |
| Air Flow @ 625 Fpm | 1736 CFM |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 45% |
| Filter Efficiency - Air Filters | 45% |
| Filters Out | Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets |
| Final Recommended Resistance | 1.5 in. wc |
| Frame Or Header Material | Galvanized Steel |
| Frame/header Material | Corrosion Resisitant Steel |
| Header | Single |
| Initial Resistance | 0.32 in. wc |
| Initial Resistance @ 300 Fpm | 0.18 in. wc |
| Initial Resistance @ 500 Fpm | 0.3 in. wc |
| Max. Air Flow | 500 FPM |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 33 sq. ft. |
| Media Color | Yellow |
| Media Material | Fiberglass |
| Media Separator Construction | Metal Pleat |
| Nominal Depth | 12" |
| Nominal Filter Size | 20" x 20" x 12" |
| Nominal Width | 20" |
| Performance Rating | Merv 9 |
| Removes Particles Down To | 1 µm to 3 µm |
| Style - Air Filters | Box |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Details:
- Header Size (13/16")
Product Variants
| Product | Model | Nominal Filter Size | Air Filter Header Type | Nominal Depth | Media Material | Air Flow @ 300 Fpm | Nominal Height | Nominal Width | Actual Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2GHV1 | 12" x 24" x 12" | Single Header | 12" | Fiberglass | 600 CFM | - | 24" | 11 1/2" | €157.06 | |
|
2GHV9 | 20" x 24" x 12" | Single Header | 12" | Fiberglass | 1000 CFM | 20" | 24" | 11 1/2" | €171.13 | |
|
2GHW5 | 24" x 24" x 12" | Single Header | 12" | Fiberglass | 1200 CFM | 24" | - | 11 1/2" | €208.70 | |
 |
2JTY6 | 20" x 20" x 12" | No Header | 12" | Synthetic | 833 CFM | 20" | 20" | 11 1/2" | €166.06 | |
 |
2JTY8 | 20" x 24" x 12" | No Header | 12" | Synthetic | 1000 CFM | 20" | - | 11 1/2" | €221.50 | |
 |
2JUF3 | 12" x 24" x 6" | No Header | 6" | Fiberglass | 600 CFM | - | - | 5 1/2" | €157.87 |
