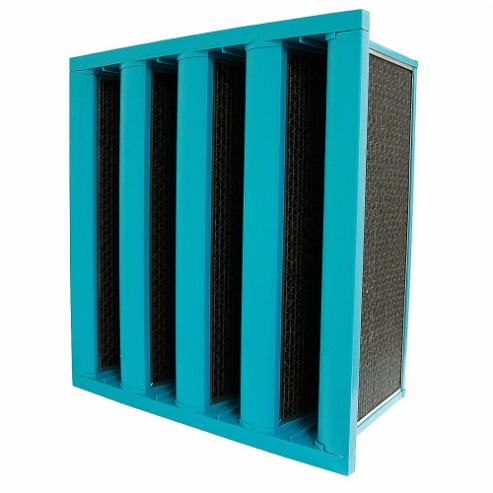

AIR HANDLER 2GHA9 Odor Removal V Bank Air Filter, 24 x 24 x 12 Inch Nominal Filter Size, Single Header, Exhaust Fumes, Plastic
Get it by Friday, Aug 14
5.00% off
€1,055.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Bank Air Filter |
| Actual Depth | 11 1/2" |
| Actual Filter Size | 23 3/8" x 23 3/8" x 11 1/2" |
| Actual Height | 23 3/8" |
| Actual Width | 23 3/8" |
| Air Filter Header Type | Single Header |
| Air Flow @ 500 Fpm | 2000 CFM |
| Air Flow @ 625 Fpm | 2500 CFM |
| Air Flow @ 750 Fpm | 3000 CFM |
| Airflow @ 300 Fpm | 1138 CFM |
| Airflow Rate | 500 FPM |
| Carbon Concentration | 0.49 g/mL |
| Ccl4 Activity | 60% |
| Common Applications | General Use |
| Filter Efficiency | 95% |
| Filter Efficiency (air Filters) | 95% |
| Filter Pack Enclosure | Metal Frame |
| Filters Out | Exhaust Fumes |
| Final Resistance | 1.5 in. wc |
| Frame Or Header Material | Plastic |
| Fully Incinerable | No |
| Gasket Location | None |
| Gasket Material | None |
| Initial Resistance | 0.36 in. wc |
| Initial Resistance @ 300 Fpm | 0.3 in. wc |
| Initial Resistance @ 500 Fpm | 0.5 in. wc |
| Max. Airflow | 2000 CFM |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 196 sq. ft. |
| Media Color | Black |
| Media Material | Active Carbon |
| No. Of Vs | 4 |
| Nominal Depth | 12" |
| Nominal Filter Size | 24" x 24" x 12" |
| Nominal Height | 24" |
| Nominal Width | 24" |
| Performance Rating | MERV 14 |
| Recommended Final Resistance | 1.5 in. wc |
| Style-air Filters | Box |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Details:
- With/Without Gasket (Without Gasket)
Product Variants
| Model | Actual Filter Size | Actual Height | Actual Width | Media Color | Nominal Filter Size | Media Material | Airflow Rate | Max. Airflow | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11Z791 | 11 3/8" x 23 3/8" x 11 1/2" | 11 3/8" | 23 3/8" | White | 12" x 24" x 12" | Fiberglass | 500/625/750 FPM | 1500 CFM | €168.74 | |
| 11Z793 | 19 3/8" x 19 3/8" x 11 1/2" | 19 3/8" | 19 3/8" | White | 20" x 20" x 12" | Fiberglass | 500/625/750 FPM | 2190 CFM | €218.33 | |
| 11Z794 | 19 3/8" x 23 3/8" x 11 1/2" | 19 3/8" | 23 3/8" | White | 20" x 24" x 12" | Fiberglass | 500/625/750 FPM | 2872 CFM | €237.42 | |
| 11Z795 | 23 3/8" x 23 3/8" x 11 1/2" | 23 3/8" | 23 3/8" | White | 24" x 24" x 12" | Fiberglass | 500/625/750 FPM | 3000 CFM | €289.06 | |
| 11Z796 | 11 3/8" x 23 3/8" x 11 1/2" | 11 3/8" | 23 3/8" | White | 12" x 24" x 12" | Fiberglass | 500/625/750 FPM | 1500 CFM | €156.60 | |
| 11Z798 | 19 3/8" x 19 3/8" x 11 1/2" | 19 3/8" | 19 3/8" | White | 20" x 20" x 12" | Fiberglass | 500/625/750 FPM | 2190 CFM | €253.90 | |
| 11Z799 | 19 3/8" x 23 3/8" x 11 1/2" | 19 3/8" | 23 3/8" | White | 20" x 24" x 12" | Fiberglass | 500/625/750 FPM | 2872 CFM | €260.55 |
