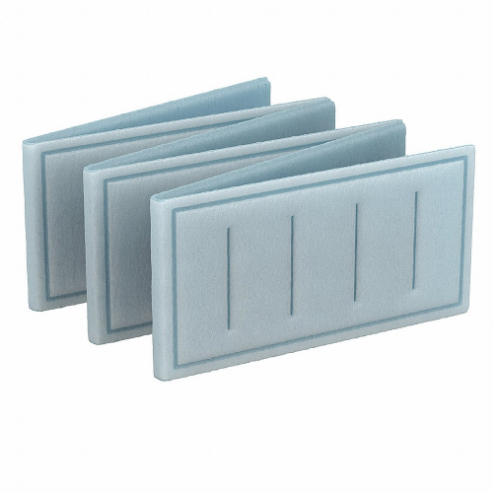

AIR HANDLER 2DXJ4 Link Air Filter 25 x 20 Inch 120 Inch Length
Get it by Thursday, Dec 18
10.00% off
€76.24 /unit
This product can only be shipped in multiples of 4Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Link Air Filter |
| Actual Filter Size | 24 1/4" x 119 1/4" x 1" |
| Actual Height | 24 1/4" |
| Actual Thickness | 1" |
| Actual Width | 119 1/4" |
| Air Flow @ 300 Fpm | 1200 CFM |
| Air Flow @ 500 Fpm | 1968 CFM |
| Air Flow Rate | 500 FPM |
| Filter Efficiency | 25% |
| Filter Efficiency - Air Filters | 25% |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores |
| Final Resistance | 1 in. wc |
| Frame Or Header Material | Steel Wire |
| Frame Or Header Material Thickness | 9 ga. |
| Frame Type | Internal Wire Heat Sealed Inside Layers |
| Initial Resistance | 0.28 in. wc |
| Initial Resistance @ 500 Fpm | 0.5 in. wc |
| Link Filter Total Width | 120" |
| Material | Polyester |
| Max. Temp. | 200°F |
| Max. Velocity | 500 FPM |
| Media Color | Blue |
| Media Material | Synthetic |
| No. Of Sections | 6 |
| Nominal Filter Size | 25" x 120" x 1" |
| Nominal Height | 25" |
| Nominal Thickness | 1" |
| Number Of Links | 6 |
| Performance Rating | MERV 8 |
| Ply | 3 |
| Recommended Final Resistance | 1 in. wc |
| Section Height | 25" |
| Section Length | 20" |
| Section Width | 20" |
| Sections Per Carton | 6 |
| Standards | Ul 900 |
| Style - Air Filters | Panel |
| Thickness | 1" |
| Total Length | 120" |
Shipping Info:
| Ship weight (kg) | 3.26 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 63.5 |
| HS code | 8421398090 |
| Country of Origin | US |
Product Variants
| Model | Filter Efficiency | Number Of Links | Section Height | Sections Per Carton | Initial Resistance | Max. Temp. | Air Flow Rate | Section Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2DVY6 | 25% | 2 | 12" | 12 | 0.28 in. wc | 200°F | 500 FPM | 24" | €22.06 | |
| 2DVY7 | 25% | 3 | 12" | 8 | 0.28 in. wc | 200°F | 500 FPM | 24" | €40.01 | |
| 2DVY8 | 25% | 4 | 12" | 6 | 0.28 in. wc | 200°F | 500 FPM | 24" | €44.03 | |
| 2DVY9 | 25% | 5 | 12" | 1 | 0.28 in. wc | 200°F | 500 FPM | 24" | €52.01 | |
| 2DVZ1 | 25% | 6 | 12" | 6 | 0.28 in. wc | 200°F | 500 FPM | 24" | €57.90 | |
| 2DVZ7 | 25% | 4 | 15" | 4 | 0.28 in. wc | 200°F | 500 FPM | 20" | €49.12 | |
| 2DWA3 | 25% | 2 | 16" | 2 | 0.28 in. wc | 200°F | 500 FPM | 14" | €57.26 |
