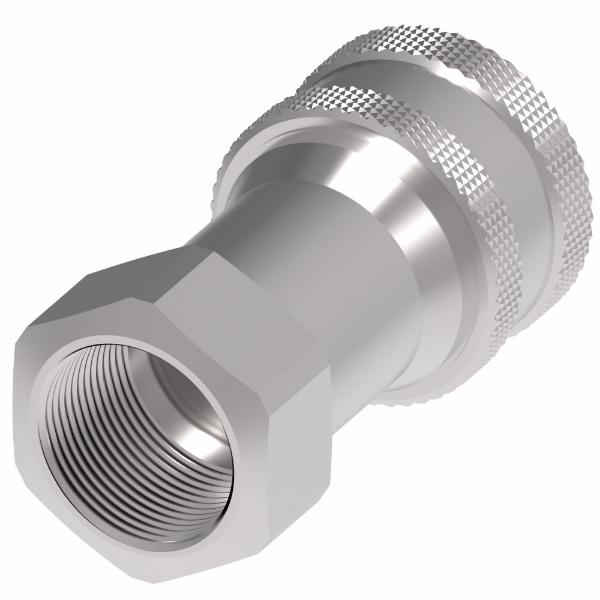

AEROQUIP 5601-2-4S Quick Connect Hose Coupling, 1/4 Inch Coupling Size, Steel, 4 lpm Max. Flow Rate
Item: AB9TPNModel: 5601-2-4SCross Ref: 2F541
7 In Stock
Ships within 2 days via
5.00% off
€86.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Coupler Body |
| Angle | Straight |
| Application | Hydraulic Fluid Transfer, Agricultural Equipment, Construction Equipment, In-plant Manufacturing, Dump, Snow Plow And Maintainance Vehicles |
| Body Material | Steel |
| Body Size | 0.25 |
| Burst Pressure | 15000 psi |
| Connection Style | Manual Connect |
| Connection Type | NPT |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Coupling Size | 1/4" |
| End Gender 1 | Female |
| End Gender 2 | Female |
| End Size 2 | 1/8" |
| End Type 1 | Push To Connect |
| End Type 2 | NPT |
| Finish Plating | Zinc Trivalent |
| Finish, Coating | Trivalent Chromium Zinc |
| Fitting Type | FNPT |
| Flow Rate | 1 GPM |
| Fluid Loss | 0.5 cu. cm |
| For Use With | All Hydraulic Applications |
| Height | 1 2/25" |
| Hex Size 1 | 22/25" |
| Hose Fitting Gender | Female |
| Included Bearing | Yes |
| Included Shut Off | Yes |
| Included Valve | Yes |
| Internal Connection Type | Ball Lock |
| Item Type | Female Half |
| Latch Type | Push/Pull |
| Length | 1.81" |
| Material | Carbon Steel |
| Max. Air Inclusion | 0.5 cu. cm |
| Max. Flow Rate | 4 LPM |
| Max. Vacuum Pressure | 28 in. hg |
| Max. Working Pressure @ 70f | 5000 psi |
| Max. Working Temp. | 250°F |
| Media | Hydraulic |
| Min. Operating Temp. | -40°F |
| Overall Length | 1 13/16" |
| Parker Interchange | 6601-2-4 |
| Pipe Size Npt | 1/8 |
| Port Size | 1/8" |
| Pull Ring Material | PTFE |
| Seal Material | Nitrile |
| Seal Part No. If Included | 22550-112 |
| Series | 5600 Series |
| Shut Off | Double |
| Sleeve Material | Steel |
| Thread Sealant | No |
| Thread Size | 1/8"-27 |
| Thread Size 2 | 1/8"-27 |
| Vacuum | 28 in. hg |
| Valve Type | Poppet |
| Weatherhead Interchange | 5601-2-4S |
| Width | 1 2/25" |
| Working Pressure | 5000 psi |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.74 |
| Ship length (cm) | 4.6 |
| Ship width (cm) | 2.74 |
| HS code | 7307995045 |
| Country of Origin | US |
Product Variants
| Model | Body Size | Coupling Size | Max. Working Pressure @ 70f | Max. Flow Rate | Flow Rate | Burst Pressure | Working Pressure | Port Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5601-12-12S | 3/4" | 3/4" | 4000 psi | 106 LPM | 28 GPM | 12000 psi | 4000 psi | 3/4" | €141.41 | |
| 5601-16-16S | 1 | 1" | 4000 psi | 189 LPM | 50 GPM | 12000 psi | 4000 psi | 1" | €218.20 | |
| 5601-4-4S | 0.25 | 1/4" | 5000 psi | 4 LPM | 1 GPM | 15000 psi | 5000 psi | 1/4" | €67.55 | |
| 5601-6-6S | 3/8" | 3/8" | 4000 psi | 23 LPM | 6 GPM | 12000 psi | 4000 psi | 3/8" | €83.16 | |
| 5601-8-10S | 3/8" | 5/8" | 4000 psi | 45 LPM | 12 GPM | 12000 psi | 4000 psi | 1/2" | €86.43 |
