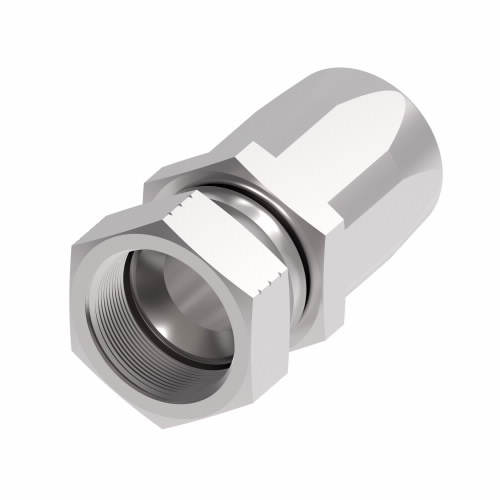

AEROQUIP 4411-16S Hydraulic Hose Fitting, -16 For Hose Dash Size, 1-5/16 Inch x 1 Inch Size, JIC x Hose
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€117.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | Straight |
| Compatible Hose Id | 1" |
| Compatible Hoses | FC802/FC558 |
| Compatible Tube Od | 1" |
| Construction Style | Reusable |
| End Gender 1 | Female |
| End Size 1 | 1 5/16" |
| End Type 1 | SAE 37 |
| End Type 2 | Line, Hose, Tube |
| Finish/coating | Trivalent Chromate Zinc |
| Finish/plating | Dura Kote |
| Fitting Shape | Straight |
| For Hose Dash Size | -16 |
| For Hose I.d. | 1" |
| For Use With Hose Series | FC558 Series, FC802 Series |
| Height | 1 1/2" |
| Hex Size 1 | 1 1/2" |
| Hex Size 2 | 1 11/25" |
| Hose Cut-off Factor | 1.93" |
| Hose Dash Size | -16 |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 1 5/16" |
| Hose Fitting B Connection Type | Hose |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1" |
| Inside Dia. | 0.82" |
| Item Type | Fitting Assembly |
| Jic Thread (in.) | 1-5/16-12 |
| Length | 3.19" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Working Pressure @ 70 F | 800 psi |
| Operating Pressure | 3500 psi |
| Outside Diameter | 1 1/2" |
| Overall Length | 3.19 mm |
| Reusable | Yes |
| Thread Angle (deg.) | 37 |
| Thread Sealant | No |
| Thread Size | 1 5/16"-12 |
| Thread Size 1 | 1 5/16"-12 |
| Thread Type | JIC |
| Width | 1 1/2" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 3.81 |
| HS code | 7307929000 |
| Country of Origin | US |
Product Variants
| Product | Model | For Hose Dash Size | Fitting Shape | For Hose I.d. | Material | Inside Dia. | Height | Hose Fitting B Size | Hose Fitting A Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FJ9068-0404S | -4 | Straight | - | Carbon Steel | 0.17" | 0.87" | 1/4" | 1/4" | €52.00 | |
|
FJ9068-0606S | -6 | Straight | 3/8" | Carbon Steel | 0.3" | 1.01" | 3/8" | 3/8" | €80.30 | |
|
FJ9068-0808S | - | - | - | Carbon Steel | 0.38" | 1 2/25" | - | - | €77.68 | |
 |
4739-12B | -12 | Straight | 3/4" | Brass | 0.61" | 1 1/4" | 3/4" | 3/4" | €44.71 | |
|
4739-6B | -6 | Straight | 3/8" | Brass | 0.3" | 0.86" | 3/8" | 3/8" | €11.84 | |
 |
190296-10S | -10 | 90° Elbow | 5/8" | Carbon Steel | 0.46" | 2.34" | 5/8" | 7/8" | €64.71 | |
|
190296-8S | -8 | 90° Elbow | 1/2" | Carbon Steel | 9/25" | 2.05" | 1/2" | 3/4" | €53.95 |
