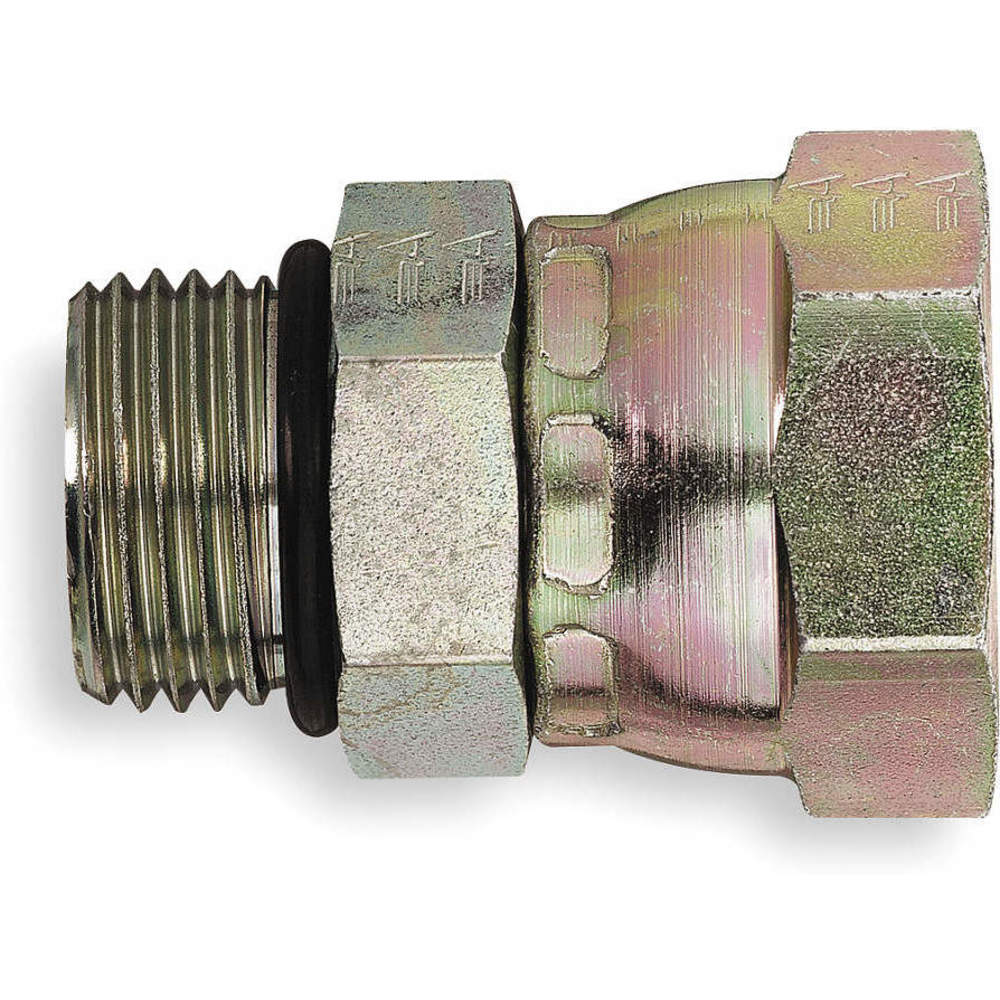

AEROQUIP 2066-4-4S Hydraulic Hose Adapter, 1/4 Inch x 1/4 Inch Size, Female x Male, NPSM x ORB, Swivel
Item: AD9YDNModel: 2066-4-4SCross Ref: 4VRW3
7 In Stock
Ships within 2 days via
5.00% off
€16.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Adapter |
| Angle | Straight |
| Application | Marine/Military, Chemical Processing, Pulp And Paper Industries, Food And Beverage Processing, Off-Shore Drilling |
| Compatible Pipe Size | 1/4" |
| Crimpable | No |
| End Gender 1 | Female |
| End Gender 2 | Male |
| End Size 1 | 1/4" |
| End Size 2 | 7/16" |
| End Type 1 | NPSM |
| End Type 2 | SAE ORB |
| Finish | Dura Kote |
| Fitting Material | Carbon Steel |
| Fitting Movement | Swivel |
| Fitting Shape | Straight |
| For Hose Type | Hydraulic |
| Height | 0.688" |
| Hex Size 1 | 14/25" |
| Hex Size 2 | 0.688" |
| Hose Fitting A Connection Type | Npsm |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 1/4" |
| Hose Fitting B Connection Type | ORB |
| Hose Fitting B Gender | Male |
| Hose Fitting B Size | 1/4" |
| Included O-ring | Yes |
| Item Type | NPSM Female/SAE ORB Male Straight Adapter |
| Length | 1.05" |
| Male Sae Size (in.) | 7/16-20 |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Operating Temp. | 250°F |
| Max. Working Pressure @ 70f | 5000 psi |
| Min. Operating Temp. | -40°F |
| Thread Sealant | No |
| Thread Size | 1/4"-18 |
| Thread Size 1 | 1/4"-18 |
| Thread Size 2 | 7/16"-20 |
| Tube Od 1 | 1/4" |
| Tube Od 2 | 1/4" |
| Width | 11/16" |
| Working Pressure | 4500 psi |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.75 |
| Ship length (cm) | 2.67 |
| Ship width (cm) | 1.75 |
| HS code | 7307929000 |
| Country of Origin | US |
Product Variants
| Model | Hose Fitting B Size | Hose Fitting A Size | Max. Working Pressure @ 70f | Compatible Pipe Size | Thread Size 1 | Height | End Size 1 | Hex Size 1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2066-6-6S | 3/8" | 3/8" | 4000 psi | 3/8" | 3/8"-18 | 7/8" | 3/8" | 0.688" | €19.04 | |
| 2066-8-8S | 1/2" | 1/2" | 3500 psi | 1/2" | 1/2"-14 | 1" | 1/2" | 1" | €21.13 | |
| 2066-12-12S | 3/4" | 3/4" | 3500 psi | 3/4" | 3/4"-14 | 1 1/4" | 3/4" | 1 1/4" | €44.81 | |
| 2066-8-10S | 5/8" | 1/2" | 3500 psi | 1/2" | 1/2"-14 | 1" | 1/2" | 1" | €23.45 | |
| 2066-16-16S | 1" | 1" | 3000 psi | 1" | 1"-11 1/2 | 1 1/2" | 1" | 1 1/2" | €81.39 | |
| 2066-20-20S | 1 1/4" | 1 1/4" | 2000 psi | 1 1/4" | 1 1/4"-11 1/2 | 1 7/8" | 1 1/4" | 1 7/8" | €70.70 | |
| 2066-24-24S | 1 1/2" | 1 1/2" | 1500 psi | 1 1/2" | 1 7/8"-12 | 2 1/8" | 1 7/8" | 2 1/8" | €316.34 |
