AEROQUIP 1AA4FJB4 Hydraulic Crimp Fitting, Steel x Steel, 90 Deg., Elbow, JIC x Crimp
Item: AD9YQCModel: 1AA4FJB4Cross Ref: 4VUA8
7 In Stock
Ships within 2 days via
10.00% off
€31.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | 90° |
| Application | General Purpose Low And Medium Pressure Hydraulics. Use H277 Or H435 Where Shock Hazards Exist |
| Compatible Hose Id | 1/4" |
| Compatible Hoses | 2661(Aaa12 Thru Aaa32), FC310, FC510, FC579, FC611, FC619 (Aaa12 Thru Aaa32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681Aaa6, GH781, GH793, EC115, EC215, EC110, EC210, EC118 |
| Compatible Tube Od | 1/4" |
| Construction Style | Crimp |
| Drop Dimension | 0.68 |
| End Gender 1 | Female |
| End Size 1 | 7/16" |
| End Type 1 | JIC 37 |
| End Type 2 | Line, Hose, Tube |
| Finish/plating | Dura Kote |
| Fitting Movement | Swivel |
| Fitting Shape | 90° Elbow |
| For Hose Dash Size | -4 |
| For Hose Inside Diameter | 1/4" |
| For Use With Hose Series | 2661(-12 THROUGH -32) Series, EC110 Series, EC115 Series, EC118 Series, EC210 Series, EC215 Series, FC310 Series, FC510 Series, FC579 Series, FC611 Series, FC619 (-12 THROUGH -32) Series, FC639/FC839B Series, FC693 Series, FC735 Series, FC849/FC849B Series, GH120 Series, GH194 Series, GH195 Series, GH663 Series, GH681-6 Series, GH781 Series, GH793 Series |
| Height | 1.47" |
| Hex Size 1 | 14/25" |
| Hose Cut-off Factor | 23/25" |
| Hose Dash Size | -4 |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 7/16" |
| Hose Fitting B Connection Type | Crimp |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1/4" |
| Inside Dia. | 0.15" |
| Item Type | Fitting Assembly |
| Jic Thread (in.) | 7/16-20 |
| Length | 2.17" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Reusable | No |
| Thread Angle (deg.) | 37 |
| Thread Sealant | No |
| Thread Size | 7/16"-20 |
| Thread Size 1 | 7/16"-20 |
| Thread Type | JIC |
| Torque | 11 lbs.-ft. to 12 lbs.-ft. |
| Vacuum Rating | Not Rated |
| Warranty | Hydraulics Warranty |
| Width | 22/25" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.73 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 2.24 |
| HS code | 7307929000 |
| Country of Origin | US |
Product Variants
| Product | Model | For Hose Dash Size | For Hose I.d. | Angle | Height | Hose Fitting B Size | Hose Fitting A Size | Inside Dia. | Fitting Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

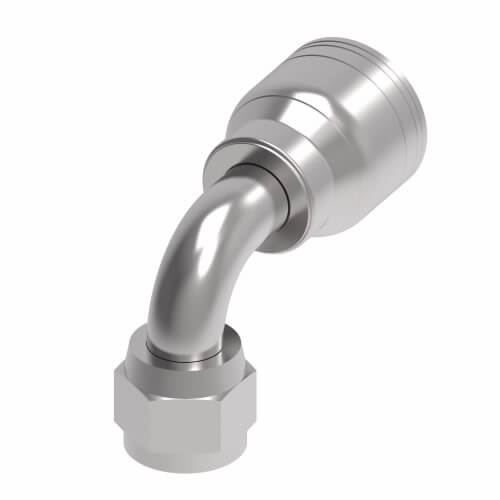

1AA10FJB10 | -10 | 5/8" | 90° | 2.41" | 5/8" | 7/8" | 0.45" | 90° Elbow | €83.94 | |
 |
1AA5FJB4 | -4 | - | 90° | 1.58" | 1/4" | 1/2" | 0.17" | 90° Elbow | €51.98 | |
|
1AA6FJB4 | -4 | - | 90° | 1 18/25" | 1/4" | 9/16" | 0.17" | 90° Elbow | €44.31 | |
 |

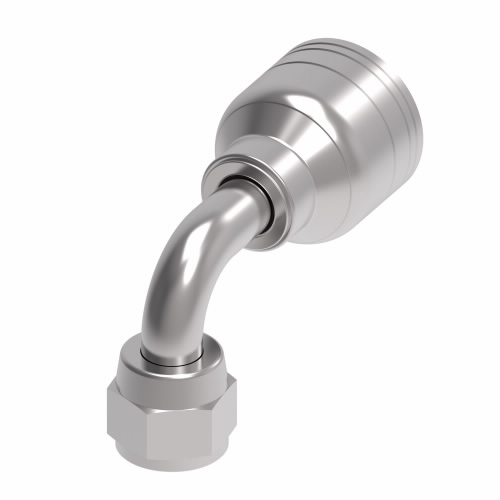

1AA6FJB6 | -6 | 3/8" | 90° | 1 3/4" | 3/8" | 9/16" | 6/25" | 90° Elbow | €35.44 | |
 |

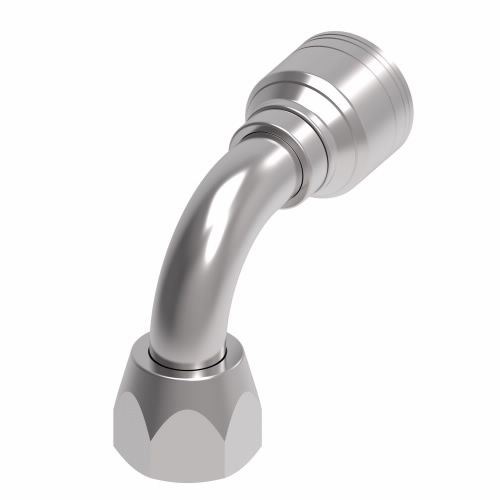

1AA8FJB6 | -8 | 3/8" | 90° | 2.07" | 3/8" | 3/4" | - | 90° Elbow | €51.22 | |
 |

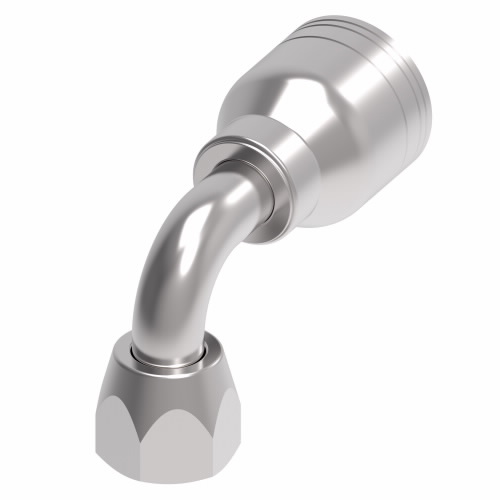

1AA8FJB8 | -8 | 1/2" | 90° | 1.09" | 1/2" | 3/4" | 0.37" | 90° Elbow | €41.52 | |
|
1AA10FJB8 | -24 | 1/2" | 90° | 1.19" | 1/2" | 7/8" | 0.38" | 90° Elbow | €62.26 |
