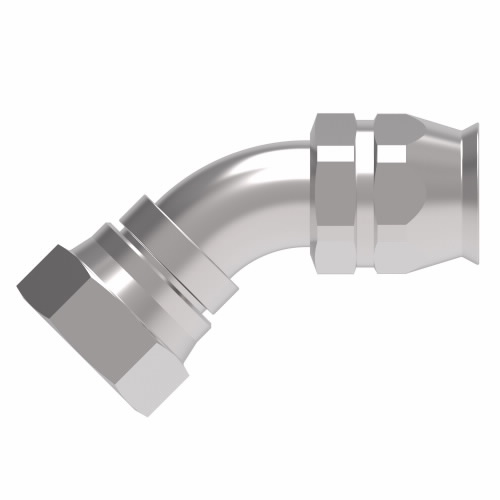

AEROQUIP 190773-16S Elbow, 45 Deg., -16 For Hose Dash Size, 1-5/16 Inch x 1 Inch Size, JIC x Hose
Item: AG2XLGModel: 190773-16SCross Ref: 32MZ91
7 In Stock
Ships within 2 days via
5.00% off
€198.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | 45 Degree |
| Compatible Hose Inside Dia. | 1" |
| Compatible Hoses | 2807, FC465, S-TW |
| Compatible Tube Outside Dia. | 1" |
| Construction Style | Reusable |
| Drop Dimension | 1.07 |
| End Gender 1 | Female |
| End Size 1 | 1 5/16" |
| End Type 1 | SAE 45 |
| End Type 2 | Line, Hose, Tube |
| Finish Plating | Dura Kote |
| Finish, Coating | Trivalent Chromate Zinc |
| Fitting Material | Steel |
| Fitting Shape | 45° Elbow |
| For Use With Hose Series | 2807 Series, SC-TW Series, S -TW Series |
| Height | 3.11" |
| Hex Size 1 | 1 1/2" |
| Hex Size 2 | 1.38" |
| Hose Cut Off Factor | 2.86" |
| Hose Dash Size | -16 |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 1 5/16" |
| Hose Fitting B Connection Type | Hose |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1" |
| Inside Dia. | 0.83" |
| Item Type | Fitting Assembly |
| Jic Thread (in.) | 1-5.16-12 |
| Length | 4.65" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Working Pressure @ 70f | 1000 psi |
| Operating Pressure | 2500 psi |
| Outside Dia. | 1.38" |
| Overall Length | 3.3 mm |
| Reusable | Yes |
| Thread Angle (deg.) | 37 |
| Thread Sealant | No |
| Thread Size | 1 5/16"-12 |
| Thread Size 1 | 1 5/16"-12 |
| Thread Type | JIC |
| Width | 1 1/2" |
Shipping Info:
| Ship weight (kg) | 0.35 |
| Ship height (cm) | 7.9 |
| Ship length (cm) | 11.81 |
| Ship width (cm) | 3.81 |
| HS code | 7307929000 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Compatible Hose Inside Dia. | Thread Size 1 | Hex Size 1 | End Size 1 | Hex Size 2 | End Gender 1 | Hose Cut Off Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
190297-4S | 1 8/25" | 1/4" | 7/16"-20 | 9/16" | 7/16" | 5/8" | Female | 1.1" | €61.85 | |
 |
190371-6S | 1.67" | 3/8" | 5/8"-18 | 0.62" | 5/8" | 0.81" | Male | 2.1" | €64.16 | |
|
190371-8S | 1.77" | 1/2" | 3/4"-18 | 3/4" | 3/4" | 0.94" | Male | 2 6/25" | €87.02 | |
 |
190773-4S | 1 7/25" | 1/4" | 7/16"-20 | 14/25" | 7/16" | 14/25" | Female | 1.05" | €98.81 | |
|
190773-5S | 1.38" | 0.31" | 1/2"-20 | 0.62" | 1/2" | 0.62" | Female | 1.11" | €117.21 | |
|
190773-6S | 1 12/25" | 0.38" | 9/16"-18 | 0.69" | 9/16" | 0.69" | Female | 1 1/5" | €101.41 | |
|
190773-8S | 1 23/25" | 1/2" | 3/4"-16 | 22/25" | 3/4" | 22/25" | Female | 1 16/25" | €103.06 |
