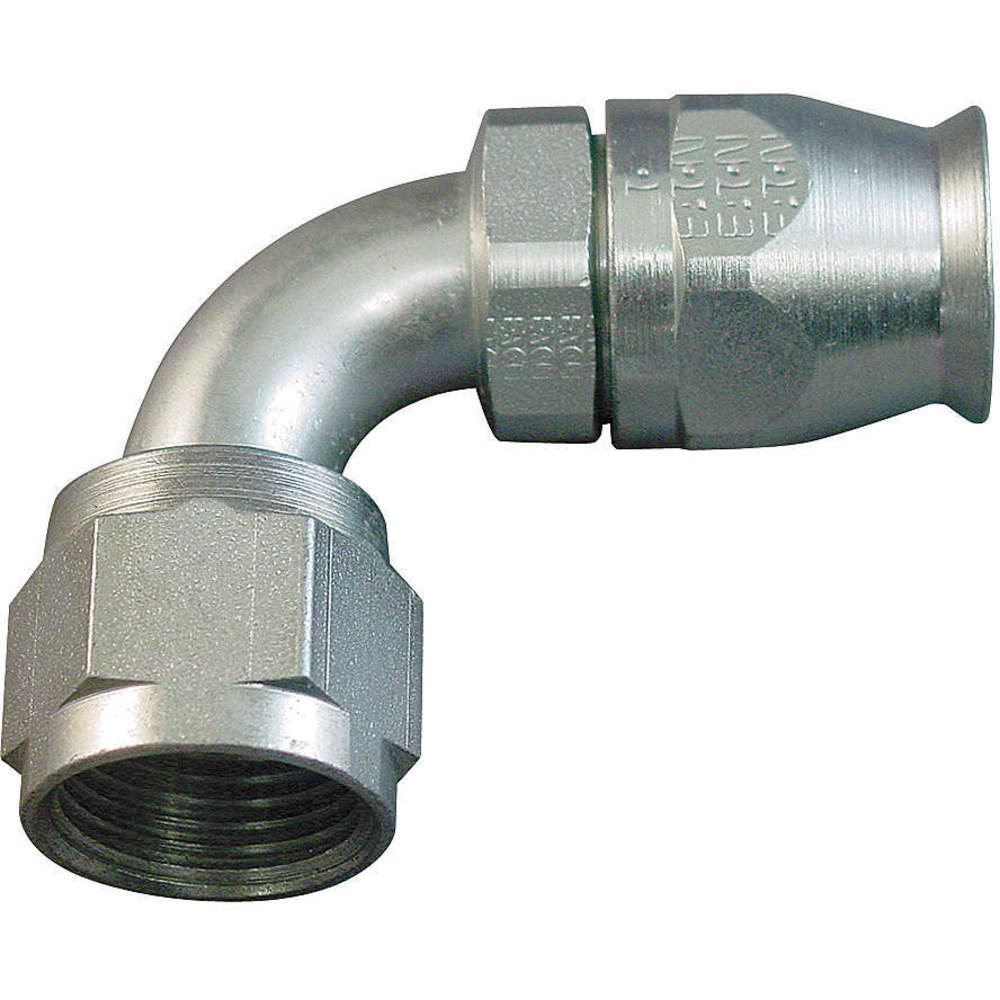

AEROQUIP 190772-4S Hydraulic Hose Fitting
Item: AG2XLHModel: 190772-4SCross Ref: 32MZ92
7 In Stock
Ships within 2 days via
5.00% off
€79.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | 90° |
| Compatible Hose Inside Dia. | 1/4" |
| Compatible Hoses | 2807, FC465, S-TW |
| Compatible Tube Outside Dia. | 1/4" |
| Construction Style | Reusable |
| Drop Dimension | 0.68 |
| End Gender 1 | Female |
| End Size 1 | 7/16" |
| End Type 1 | Sae |
| End Type 2 | Line, Hose, Tube |
| Finish Plating | Dura Kote |
| Finish, Coating | Trivalent Chromate Zinc |
| Fitting Material | Steel |
| Fitting Shape | 90° Elbow |
| For Use With Hose Series | 2807 Series, SC-TW Series, S -TW Series |
| Height | 1 9/25" |
| Hex Size 1 | 14/25" |
| Hex Size 2 | 14/25" |
| Hose Cut Off Factor | 0.95" |
| Hose Dash Size | -4 |
| Hose Fitting A Connection Type | Universal |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 7/16" |
| Hose Fitting B Connection Type | Hose |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1/4" |
| Inside Dia. | 4/25" |
| Item Type | Fitting Assembly |
| Jic Thread (in.) | 7/16-20 |
| Length | 1.69" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Working Pressure @ 70f | 3000 psi |
| Outside Dia. | 14/25" |
| Overall Length | 1.41 mm |
| Reusable | Yes |
| Sae Flare Size (in.) | 7/16-20 |
| Thread Angle (deg.) | 37/45 Universal |
| Thread Sealant | No |
| Thread Size | 7/16"-20 |
| Thread Size 1 | 7/16"-20 |
| Thread Type | Universal |
| Width | 14/25" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 3.45 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 1.42 |
| HS code | 7307929000 |
| Country of Origin | US |
Product Variants
| Model | Hose Fitting B Size | Hose Fitting A Size | Hose Fitting A Connection Type | Height | Compatible Hose Inside Dia. | Thread Size 1 | Compatible Tube Outside Dia. | Hex Size 1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 190772-5S | 5/16" | 1/2" | Universal | 1.47" | 0.31" | 1/2"-20 | 0.31" | 0.62" | €84.19 | |
| 190772-6S | 3/8" | 9/16" | Jic | 1.59" | 0.38" | 9/16"-18 | 0.38" | 0.69" | €86.46 | |
| 190772-8S | 1/2" | 3/4" | Universal | 2.02" | 1/2" | 3/4"-16 | 1/2" | 22/25" | €92.67 | |
| 190772-10S | 5/8" | 7/8" | Universal | 2 7/25" | 0.63" | 7/8"-14 | 0.63" | 1" | €122.07 | |
| 190772-12S | 3/4" | 1 1/2" | Jic | 3.03" | 3/4" | 1 1/16"-12 | 3/4" | 1 1/4" | €149.55 | |

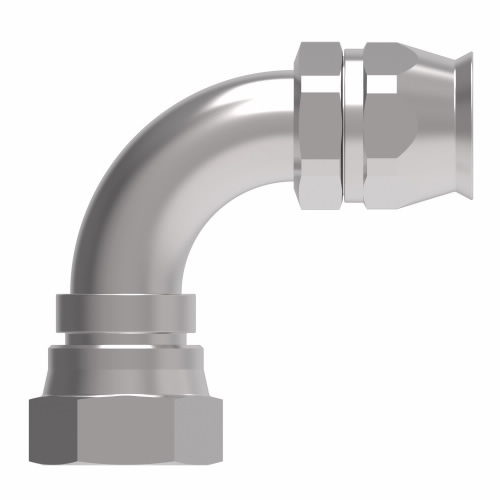

| 190772-16S | 1" | 1 5/16" | Jic | 3 17/25" | 1" | 1 5/16"-12 | 1" | 1 1/2" | €188.89 |
