AEROQUIP 190260-16S Elbow, 90 Deg., -16 For Hose Dash Size, 1-5/16 Inch x 1 Inch Size, JIC x Hose
Item: AD8GVYModel: 190260-16SCross Ref: 4KFG5
7 In Stock
Ships within 2 days via
10.00% off
€192.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | 90° |
| Compatible Hose Id | 1" |
| Compatible Hoses | 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, FC802 |
| Compatible Tube Od | 1" |
| Construction Style | Reusable |
| Drop Dimension | 4.58 |
| End Gender 1 | Female |
| End Size 1 | 1 5/16" |
| End Type 1 | SAE 37 |
| End Type 2 | Line, Hose, Tube |
| Finish/coating | Trivalent Chromate Zinc |
| Finish/plating | Dura Kote |
| Fitting Shape | 90° Elbow |
| For Hose Dash Size | -16 |
| For Hose I.d. | 1" |
| For Use With Hose Series | 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, FC802 |
| Height | 5.9" |
| Hex Size 1 | 1 1/2" |
| Hex Size 2 | 1 11/25" |
| Hose Cut-off Factor | 2 7/25" |
| Hose Dash Size | -16 |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 1 5/16" |
| Hose Fitting B Connection Type | Hose |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1" |
| Inside Dia. | 0.82" |
| Item Type | Fitting Assembly |
| Jic Thread (in.) | 1-5/16-12 |
| Length | 4.3" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Working Pressure @ 70 F | 800 psi |
| Operating Pressure | 2500 psi |
| Outside Diameter | 1.55" |
| Overall Length | 3.55 mm |
| Reusable | Yes |
| Thread Angle (deg.) | 37 |
| Thread Sealant | No |
| Thread Size | 1 5/16"-12 |
| Thread Size 1 | 1 5/16"-12 |
| Thread Type | JIC |
| Warranty | Hydraulics Warranty |
| Width | 1 1/2" |
Shipping Info:
| Ship weight (kg) | 0.51 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 3.81 |
| HS code | 7307929000 |
| Country of Origin | US |
Product Variants
| Product | Model | For Hose Dash Size | For Hose I.d. | Fitting Shape | Hose Fitting B Size | Hose Fitting A Size | Inside Dia. | Overall Length | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

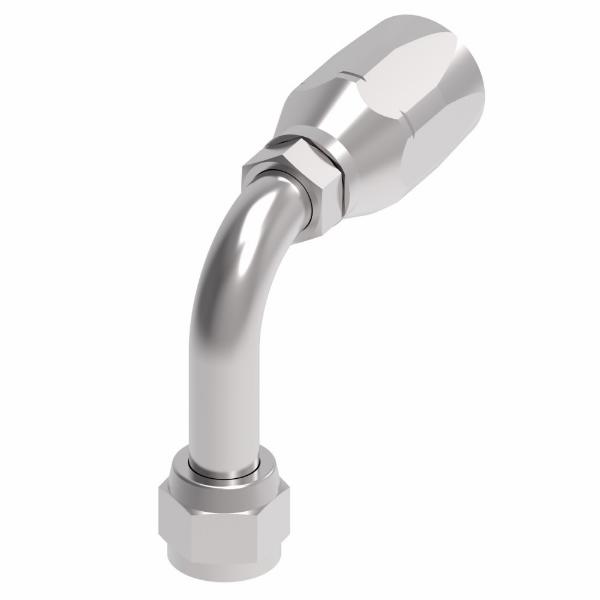

190260-6S | -6 | 3/8" | 90° Long Elbow | 3/8" | 9/16" | 6/25" | 2.13 mm | 2.98" | €87.16 | |
|
190260-12S | -12 | 3/4" | 90° Elbow | 3/4" | 1 1/16" | 0.55" | 3.74 mm | 5" | €153.02 |
