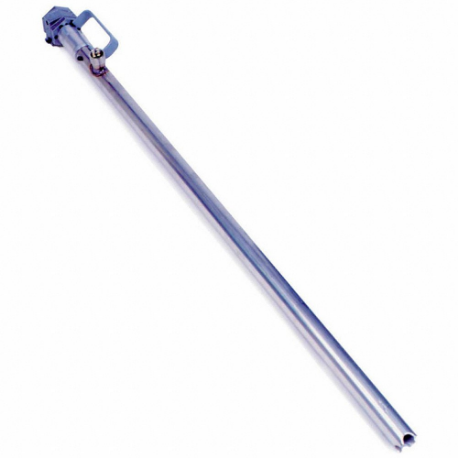

ACTION PUMP ACT13NSS Drum Pump, 15 Gal-30 Gal-55 Gal For Container Size, 12 Gpm
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,162.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Drum Pump |
| Adapter Connection Type | 2" NPT |
| Adapter Material | Polypropylene, Steel Thumb Screw |
| Agency Compliance | No |
| Air Inlet Size | 1/4" |
| Air Outlet Size | 1/4" |
| Bung Connection Dia. | 2" |
| Compatible Chemicals | X |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Spout |
| Discharge Tube Inside Dia. | 0.9" |
| Discharge Tube Outlet Id | 29/32" |
| Discharge Tube Outlet Od | 1" |
| Duty Cycle | Continuous |
| Explosion Proof | Yes |
| Features | Air Motor With Silencers |
| Food Grade | No |
| For Container Size | 15 gal., 30 gal., 55 gal. |
| For Container Type | Drum |
| For Media Type | R |
| For Use With | 6Pfn6-63Mm Bung |
| Height Above Container | 10" |
| Hose Cover Material | PVC |
| Hose Inside Dia. | 29/32" |
| Hose Length | 5 ft. |
| Hose Outside Dia. | 1" |
| Hose Tube Material | PVC |
| Housing Finish | Aluminum |
| Housing Material | PTFE, Stainless Steel |
| Housing Material - Pumps | PTFE, Stainless Steel |
| Includes | Pump, Air Motor, 2" Bung, Hose |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | No |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Length | 39" |
| Max. Air Pressure | 80 psi |
| Max. Flow Rate | 12 GPM |
| Max. Fluid Temp. | 212°F |
| Max. Head - Pumps | 12 ft. |
| Max. Head Pressure | 20 psi |
| Max. Oil Flow | 10 GPM |
| Max. Outlet Pressure | 20 psi |
| Max. Viscosity | 1000 cPS |
| Metered | No |
| Min. Air Pressure | 20 psi |
| Min. Fluid Temp. | 35°F |
| Motor Enclosure Design | Explosion Proof |
| Motor Hp | 1/2 hp |
| Motor Speed | 6000 RPM |
| Noise Level | 80 dBA |
| Nozzle Operation | Manual |
| Outlet Size | 1/4" |
| Overall Length | 39" |
| Power Source | Air |
| Pump Connection Inside Dia. | 2" |
| Pump Connection Outside Dia. | 2" |
| Pump Connection Type | NPT |
| Pump Package Type | Basic Pump With Discharge Hose |
| Ratio | 1:1 |
| Runs Dry | No |
| Seal Material | PTFE |
| Self-priming | Yes |
| Spout Connection Size | 3/4" |
| Spout Connection Type | Spout |
| Spout Length | 2" |
| Spout Material | Stainless Steel |
| Variable Speed | Yes |
| Wetted Materials | PTFE, Stainless Steel |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
