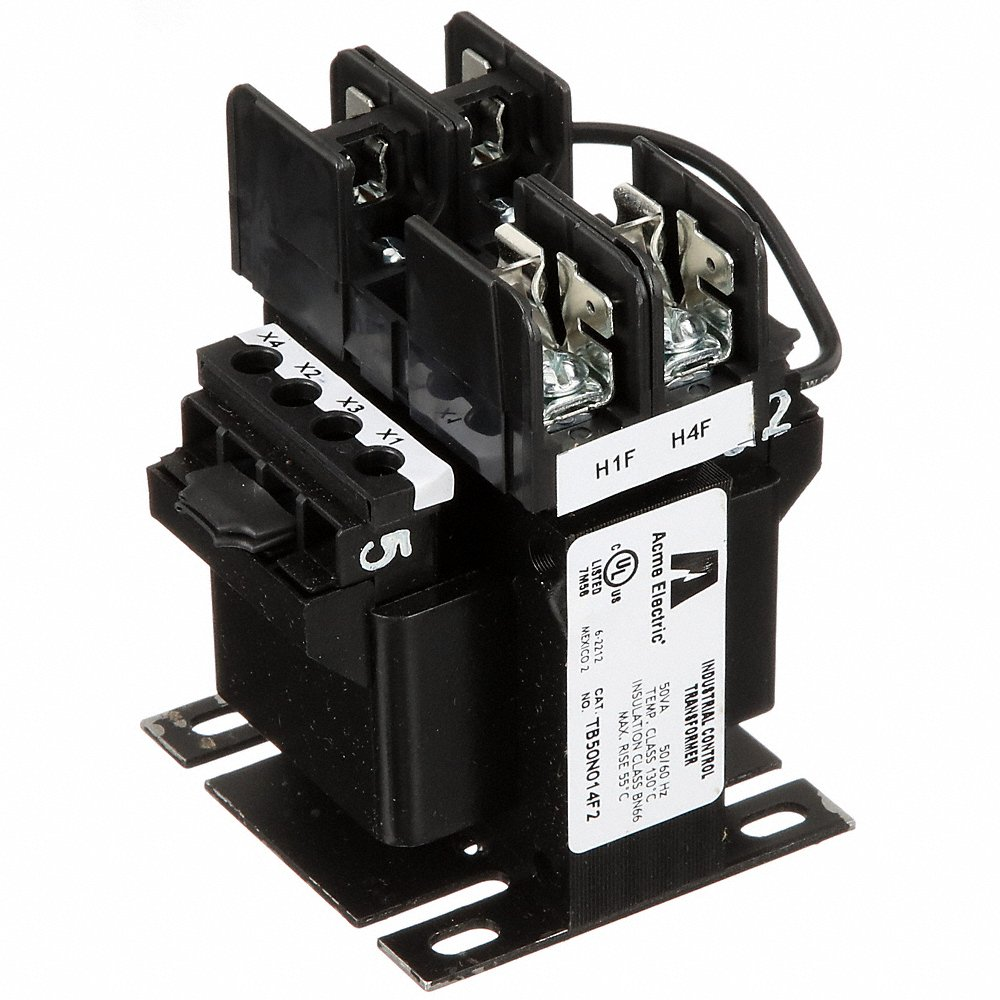

ACME ELECTRIC TB50N014F2 Control Transformer, 240VAC/480VAC, 120VAC/240VAC, Foot/Plate
Item: CN8ACHModel: TB50N014F2Cross Ref: 491Y13
7 In Stock
Ships within 2 days via
€189.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Control Transformer |
| Carton Quantity | 1 |
| Certified Listed | Ul Listed |
| Color | Black |
| Depth | 4.1" |
| Dimensions | 3.41" x 3" x 4.04" |
| Enclosure Finish | Epoxy Resin Varnish |
| Enclosure Style | Open |
| For Fuse Class | Class CC |
| Frequency | 50/60 Hz |
| Height | 4.04" |
| Included | Factory Installed 2 Pole Class Cc Primary Fuse Block |
| Input Voltage | 240/480V AC |
| Kva | 0.05 kVA |
| Length | 3.41" |
| Mounting | Foot, Plate |
| Mounting Location | Plate |
| Output Voltage | 120/240V AC |
| Overall Depth | 3.41" |
| Overall Height | 4.04" |
| Overall Width | 3" |
| Pallet Quantity | 32 |
| Phase | 1 |
| Power | 50 VA |
| Primary Voltage | 240/480V |
| Product Datasheet | acme-electric-tb50n014f2.pdf |
| Protection Device | Primary Fuse, Secondary Fuse |
| Protective Device | Primary Fuse |
| Secondary Voltage | 120/240V |
| Standards | Cul Listed, Ul Listed |
| Temp. Rise | Not Rated |
| Va | 50 VA |
| Va Rating-transformer | 50 VA |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 1.17 |
| Ship height (cm) | 10.26 |
| Ship length (cm) | 8.66 |
| Ship width (cm) | 7.62 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Input Voltage | Output Voltage | Protection Device | Secondary Voltage | Primary Voltage | Frequency | Temp. Rise | Enclosure Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TB75N001F2 | 120/240V AC | 12/24V AC | Primary Fuse, Secondary Fuse | 12/24V | 120/240V | 50/60 Hz | Not Rated | Epoxy Resin Varnish | €238.69 | |
| TB100N001F2 | 120/240V AC | 12/24V AC | Primary Fuse, Secondary Fuse | 12/24V | 120/240V | 50/60 Hz | Not Rated | Epoxy Resin Varnish | €267.37 | |
| TB350N001F2 | 120/240V AC | 12/24V AC | - | 12/24V | 120/240V | 50/60 Hz | Not Rated | Epoxy Resin Varnish | €454.47 | |
| TB500N001F2 | 120/240V AC | 12/24V AC | Primary Fuse, Secondary Fuse | 12/24V | 120/240V | 50/60 Hz | Not Rated | Epoxy Resin Varnish | €579.28 | |
| TB750N001F2 | 120/240V AC | 12/24V AC | Primary Fuse, Secondary Fuse | 12/24V | 120/240V | 50/60 Hz | Not Rated | Epoxy Resin Varnish | €770.38 | |
| TB150N001F2 | 120/240V AC | 12/24V AC | Primary Fuse, Secondary Fuse | 12/24V | 120/240V | 50/60 Hz | Not Rated | Epoxy Resin Varnish | €281.18 | |

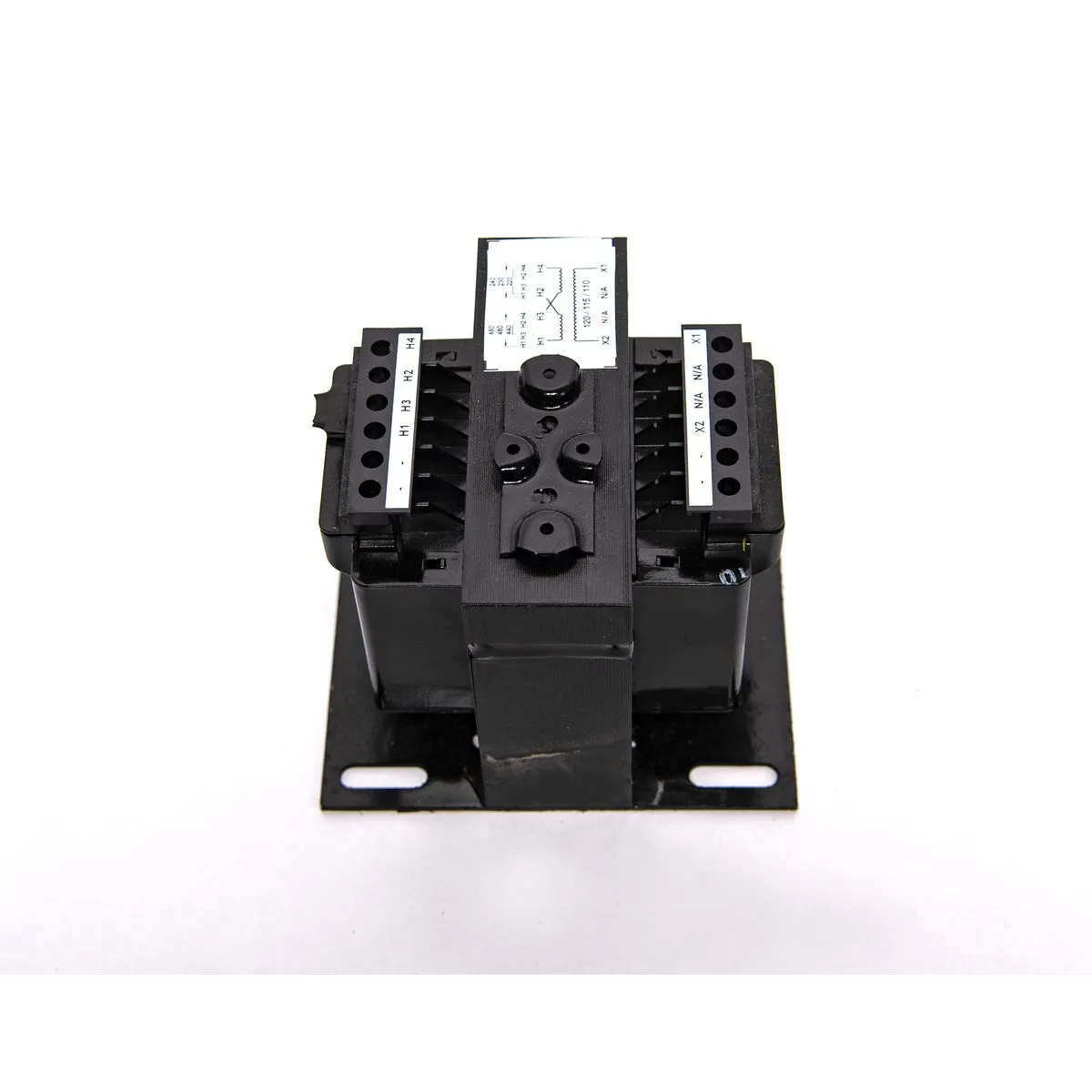

| TB2000N012F2 | 240/347/380V AC | 120/240V AC | Primary Fuse, Secondary Fuse | 120/240V | 240/347/380V | 50/60 Hz | Not Rated | Epoxy Resin Varnish | €1,554.82 |
