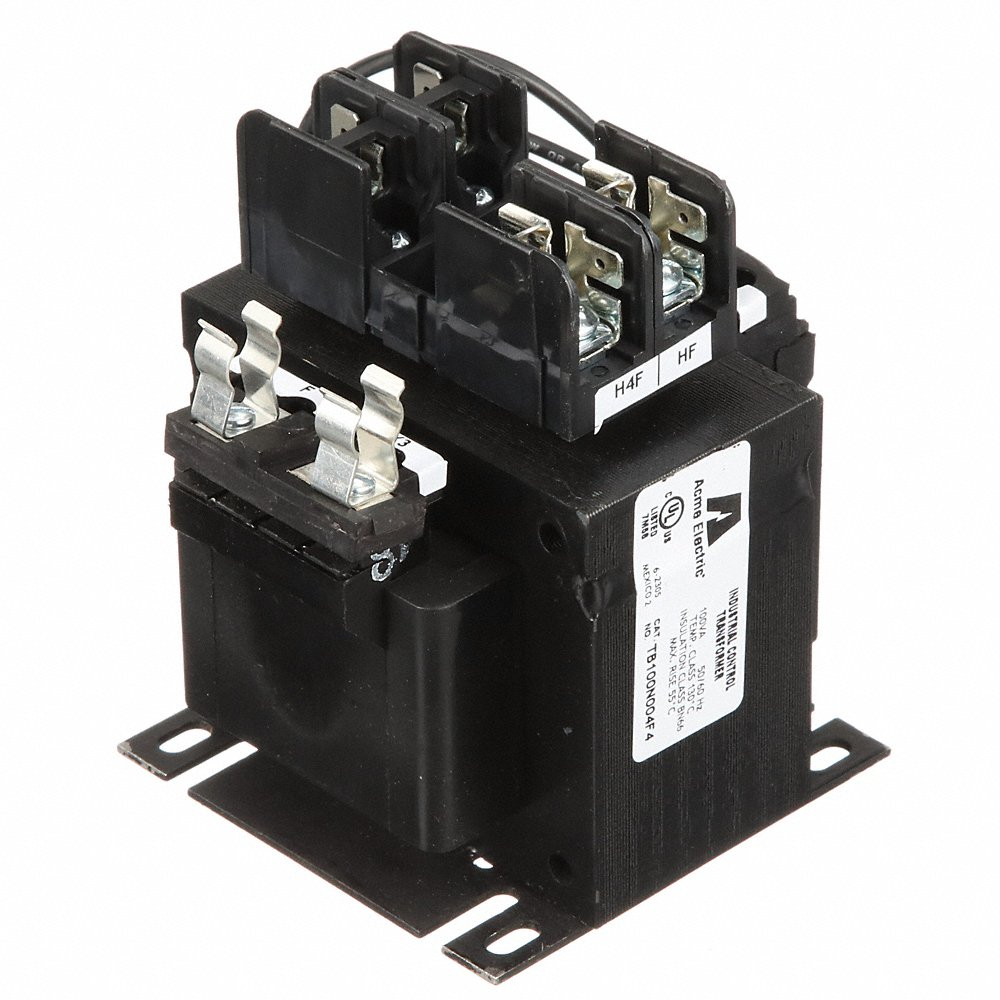

ACME ELECTRIC TB100N004F4 Control Transformer, 208VAC/230VAC/460VAC, 115VAC/24VAC, Foot/Plate, 1, Cul | CN7ZYV 491W77

ACME ELECTRIC TB100N004F4 Control Transformer, 208VAC/230VAC/460VAC, 115VAC/24VAC, Foot/Plate, 1, Cul

Item: CN7ZYVModel: TB100N004F4Cross Ref: 491W77
7 In Stock
Output Voltage
VA Rating

Ships within 2 days via

€333.24
10.00% off
€299.92 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Control Transformer
Carton Quantity 1
Certified Listed Ul Listed
Color Black
Depth 5 4/25"
Dimensions 4.17" x 3.75" x 4.67"
Enclosure Finish Epoxy Resin Varnish
Enclosure Style Open
Frequency 50/60 Hz
Height 4.67"
Includes Factory Installed Primary Fuse Block And Secondary Fuse Clips
Input Voltage 208/230/460V AC
Kva 0.1 kVA
Length 4.17"
Manufacturers Warranty Length 20 yrs.
Mounting Foot, Plate
Mounting Location Plate
Output Voltage 115/24V AC
Overall Depth 4.17"
Overall Height 4.67"
Overall Width 3 3/4"
Pallet Quantity 48
Phase 1
Power Rating 100 VA
Primary Voltage 208/230/460V
Product Datasheet acme-electric-tb100n004f4.pdf
Protection Device Primary Fuse, Secondary Fuse
Protective Device Primary And Secondary Fuse
Secondary Voltage 24/115V
Standards Cul Listed, Ul Listed
Temp. Rise Not Rated
Va Rating 100 VA
Va Rating - Transformer 100 VA
Width 3.75"

Shipping Info:

Ship weight (kg) 3.02
Ship height (cm)11.86
Ship length (cm)10.59
Ship width (cm)9.53
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelInput VoltageProtection DevicePower RatingOutput VoltagePhaseSecondary VoltagePrimary VoltageVa RatingPrice
ACME ELECTRIC TB1000N005F4 Control Transformer, 208VAC/230VAC/460VAC, 115VAC, Foot/Plate, Control Transformer | CN7ZWY 491X94 TB1000N005F4208/230/460V ACPrimary Fuse, Secondary Fuse1 kVA115V AC1115V208/230/460V1 kVA€1,012.38
ACME ELECTRIC TB250N005F4 Control Transformer, 208VAC/230VAC/460VAC, 115VAC, Foot/Plate, Control Transformer | CN7ZXJ 491X89 TB250N005F4208/230/460V ACPrimary Fuse, Secondary Fuse250 VA115V AC1115V208/230/460V250 VA€580.18
ACME ELECTRIC TB50N005F4 Control Transformer, 208VAC/230VAC/460VAC, 115VAC, Foot/Plate, Control Transformer | CN7ZXL 491X84 TB50N005F4208/230/460V ACPrimary Fuse, Secondary Fuse50 VA115V AC1115V208/230/460V50 VA€314.72
ACME ELECTRIC TB300N005F4 Control Transformer, 208VAC/230VAC/460VAC, 115VAC, Foot/Plate, Control Transformer | CN7ZXN 491X90 TB300N005F4208/230/460V ACPrimary Fuse, Secondary Fuse300 VA115V AC1115V208/230/460V300 VA€579.75
ACME ELECTRIC TB200N005F4 Control Transformer, 208VAC/230VAC/460VAC, 115VAC, Foot/Plate, Control Transformer | CN7ZXP 491X88 TB200N005F4208/230/460V ACPrimary Fuse, Secondary Fuse200 VA115V AC1115V208/230/460V200 VA€542.99
ACME ELECTRIC TB150N005F4 Control Transformer, 208VAC/230VAC/460VAC, 115VAC, Foot/Plate, Control Transformer | CN7ZXR 491X87 TB150N005F4208/230/460V ACPrimary Fuse, Secondary Fuse150 VA115V AC1115V208/230/460V150 VA€460.95
ACME ELECTRIC TB500N004F4 Control Transformer, 208VAC/230VAC/460VAC, 115VAC/24VAC, Foot/Plate | CN7ZXT 491W83 TB500N004F4208/230/460V ACPrimary Fuse, Secondary Fuse500 VA115/24V AC124/115V208/230/460V500 VA€743.78
