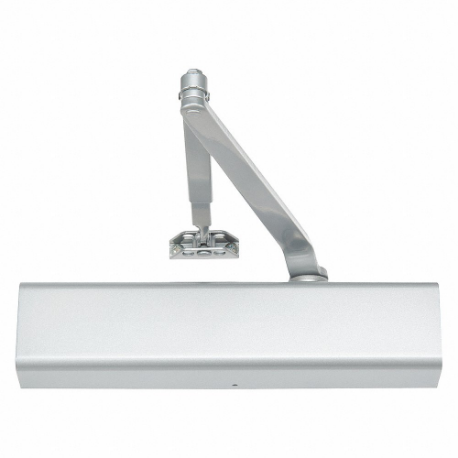

ABLOY 3501 x 689 Door Closer, Non Hold Open, Non-Handed, 13 Inch Housing Lg, 2 1/2 Inch Housing Dp
Item: CR2YRRModel: 3501 x 689Cross Ref: 52CC30
7 In Stock
Ships within 2 days via
10.00% off
€369.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Material | Steel |
| Arm Type | Parallel, Regular |
| Closer Cycles | 25000000 |
| Closer Mounting Style | Parallel, Regular, Top Jamb |
| Closer Mounting Type | Standard, Parallel, Top Frame |
| Closer Series | 3000 Series |
| Closer Type | Non Hold Open |
| Color | Gray |
| Door Width Campatibility | 48" |
| Energy Source | Hydraulic |
| Exterior Door Width | 48" |
| Exterior Door Width - Maximum | 48" |
| Features | Staked Valves |
| Finish | Aluminum Paint |
| Fire Rating | 3 hrs. |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 3/4" |
| Housing Depth | 2 1/8" |
| Housing Height | 2 3/4" |
| Housing Length | 13" |
| Hydraulic/pneumatic | Hydraulic |
| Includes | Full Cover, Mounting Template |
| Includes Hardware | Hardware Included |
| Interior / Exterior | Interior And Exterior |
| Interior Door Width | 48" |
| Length Between Mounting Holes | 12" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior/Exterior |
| Manual/automatic | Manual |
| Material | Aluminum |
| Max Door Opening Angle | 180° |
| Max. Door Opening | 180° |
| Mounting Hardware | Included |
| Operation Style | Manual |
| Performance Rating | Grade 1 Heavy Duty |
| Product Type | Door Closer |
| Projection | 2 1/8" |
| Projection From Wall | 2 1/8" |
| Spring Size | 6 |
| Spring Size - Minimum | 1 |
| Spring Type | Adjustable |
| Ul Fire Rating | UL10C |
Shipping Info:
| Ship weight (kg) | 3.34 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Closer Type | Spring Size | Arm Type | Color | Arm Material | Interior / Exterior | Projection From Wall | Closer Mounting Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5831T x 690 | Hold Open | 6 | Parallel, Regular | Dark Bronze | Steel | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €519.69 | |
 |
5821 Tx 690 | Hold Open | 6 | Parallel, Regular | Dark Bronze | Cast Iron | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €365.46 | |
 |
5811 x 690 | Hold Open | 6 | Regular | Dark Bronze | Cast Iron | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €343.02 | |
 |
5811 x 689 | Hold Open | 6 | Regular | Gray | Cast Iron | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €343.02 | |
|
5821 Tx 689 | Hold Open | 6 | Parallel, Regular | Gray | Cast Iron | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €365.46 | |
|
5831T x 689 | Hold Open | 6 | Parallel, Regular | Gray | Steel | Interior And Exterior | 2 1/4" | Parallel, Regular, Top Jamb | €454.73 | |
 |
5811 x BSP | Hold Open | 6 | Parallel, Regular | Black | Cast Iron | Interior And Exterior | 2 1/4" | Tri Mount | €401.71 |
