YALE 3301 x 689 Door Closer, Non Hold Open, Non-Handed, 13 Inch Housing Lg, 2 1/2 Inch Housing Dp | CR2YZK 52CC22

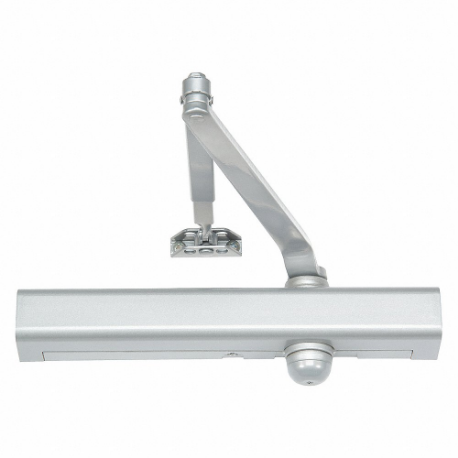

ABLOY 3301 x 689 Door Closer, Non Hold Open, Non-Handed, 13 Inch Housing Lg, 2 1/2 Inch Housing Dp

Item: CR2YZKModel: 3301 x 689Cross Ref: 52CC22
7 In Stock

Ships within 2 days via

€411.05
10.00% off
€369.94 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Door Closer
Ada Compliant Yes
Arm Material Steel
Arm Type Parallel, Regular
Closer Cycles 25000000
Closer Mounting Style Parallel, Regular, Top Jamb
Closer Mounting Type Parallel
Closer Series 3000 Series
Closer Stop Type Spring
Closer Type Non Hold Open
Color Gray
Door Opening - Minimum 85°
Door Width Campatibility 48"
Energy Source Hydraulic
Exterior Door Width 48"
Exterior Door Width - Maximum 48"
Finish Aluminum Paint
Fire Rating 3 hrs.
Hand Orientation Non Handed
Height Between Mounting Holes 3/4"
Housing Depth 2 1/8"
Housing Height 2 7/8"
Housing Length 13"
Hydraulic/pneumatic Hydraulic
Includes Mounting Template, Slim Line Cover
Includes Hardware Hardware Included
Interior / Exterior Interior And Exterior
Interior Door Width 48"
Length Between Mounting Holes 12"
Ligature Resistance Not Ligature Resistant
Ligature Resistant No
Location Use Interior/Exterior
Manual/automatic Manual
Material Aluminum
Max Door Opening Angle 180°
Mounting Hardware Included
Operation Style Manual
Performance Rating Grade 1 Heavy Duty
Product Type Door Closer
Projection 2 1/8"
Projection From Wall 2 1/8"
Spring Size 6
Spring Size - Minimum 1
Spring Type Adjustable
Standards Ansi/Bhma
Ul Fire Rating UL10C

Shipping Info:

Ship weight (kg) 3.23
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelCloser TypeSpring SizeArm TypeColorArm MaterialInterior / ExteriorProjection From WallCloser Mounting StylePrice
YALE 5831T x 690 Door Closer, Hold Open, Non-Handed, 12 1/4 Inch Housing Lg, 2 1/4 Inch Housing Dp | CR2WFJ 52CC21 5831T x 690Hold Open6Parallel, RegularDark BronzeSteelInterior And Exterior2 1/4"Parallel, Regular, Top Jamb€519.69
YALE 5821 Tx 690 Door Closer, Hold Open, Non-Handed, 12 1/4 Inch Housing Lg, 2 1/4 Inch Housing Dp | CR2WFK 21T072 5821 Tx 690Hold Open6Parallel, RegularDark BronzeCast IronInterior And Exterior2 1/4"Parallel, Regular, Top Jamb€365.46
YALE 5811 x 690 Door Closer, Hold Open, Non-Handed, 12 1/4 Inch Housing Lg, 2 1/4 Inch Housing Dp | CR2WFL 21T066 5811 x 690Hold Open6RegularDark BronzeCast IronInterior And Exterior2 1/4"Parallel, Regular, Top Jamb€343.02
YALE 5811 x 689 Door Closer, Hold Open, Non-Handed, 12 1/4 Inch Housing Lg, 2 1/4 Inch Housing Dp | CR2WFM 21T065 5811 x 689Hold Open6RegularGrayCast IronInterior And Exterior2 1/4"Parallel, Regular, Top Jamb€343.02
YALE 5821 Tx 689 Door Closer, Hold Open, Non-Handed, 12 1/4 Inch Housing Lg, 2 1/4 Inch Housing Dp | CR2WFN 21T071 5821 Tx 689Hold Open6Parallel, RegularGrayCast IronInterior And Exterior2 1/4"Parallel, Regular, Top Jamb€365.46
YALE 5831T x 689 Door Closer, Hold Open, Non-Handed, 12 1/4 Inch Housing Lg, 2 1/4 Inch Housing Dp | CR2WFP 52CC20 5831T x 689Hold Open6Parallel, RegularGraySteelInterior And Exterior2 1/4"Parallel, Regular, Top Jamb€454.73
YALE 5811 x BSP Door Closer, Hold Open, Non-Handed, 12 1/4 Inch Housing Lg, 2 1/4 Inch Housing Dp, 3 1/2 | CR2WFQ 784T64 5811 x BSPHold Open6Parallel, RegularBlackCast IronInterior And Exterior2 1/4"Tri Mount€401.71
