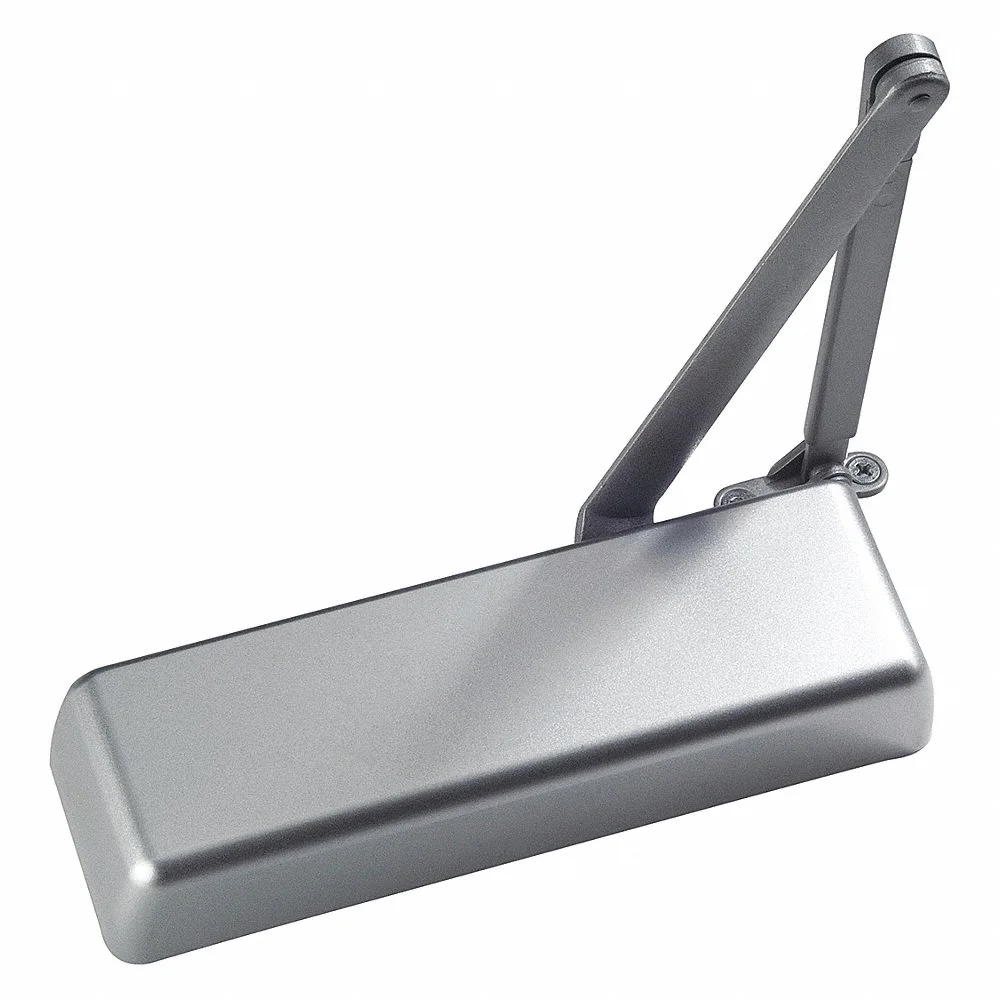

ABILITY ONE 5340-00-NIB-0296 Door Closer, Door Saver, Non-Handed, 12 Inch Housing Lg, 2 Inch Housing Dp
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
€468.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Material | Forged Steel |
| Arm Type | Parallel, Regular |
| Closer Cycles | 2000000 |
| Closer Mounting Style | Regular |
| Closer Mounting Type | Standard, Parallel |
| Closer Series | SKILCRAFT Series |
| Closer Stop Type | Spring |
| Closer Type | Non Hold Open |
| Color | Gray |
| Compatible With Series | Pdq 7101 |
| Door Width Campatibility | 60" |
| Energy Source | Hydraulic |
| Exterior Door Width | 0" to 54" |
| Exterior Door Width-max. | 54" |
| Finish | Aluminum, Painted |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 2 1/4" |
| Housing Depth | 2" |
| Housing Height | 3 1/2" |
| Housing Length | 12" |
| Hydraulic/pneumatic | Hydraulic |
| Included | Full Size Cover, Mounting Screws |
| Included Hardware | Hardware Included |
| Interior Door Width | 0" to 60" |
| Interior/exterior | Interior |
| Ligature Resistance | Ligature Resistant |
| Ligature Resistant | Yes |
| Location Use | Interior |
| Manual/automatic | Manual |
| Material | Aluminum |
| Max. Door Opening | 120° |
| Max. Door Opening Angle | 180° |
| Min. Door Opening | 120° |
| Min. Spring Size | 1 |
| Mounting Hardware | Included |
| Performance Rating | Grade 1 Heavy Duty |
| Projection | 2 1/4" |
| Projection From Wall | 2 1/4" |
| Spring Size | 6 |
| Spring Type | Adjustable |
Shipping Info:
| Ship weight (kg) | 6.17 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Housing Height | Height Between Mounting Holes | Arm Material | Closer Type | Compatible With Series | Max. Door Opening | Finish | Housing Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5340-00-NIB-0299 | 3 1/2" | 2 1/4" | Forged Steel | Non Hold Open | Pdq 7141 | - | Aluminum, Painted | 12" | €379.26 | |
 |
5340-00-NIB-0300 | 3 1/2" | 2 1/4" | Forged Steel | Non Hold Open | Pdq 7141 | 180° | Aluminum, Painted | 12" | €517.09 | |
 |
5340-00-NIB-0293 | 2" | 3/4" | Forged Steel | Non Hold Open | Pdq 5501 | 180° | Aluminum, Painted | 12" | €336.26 | |
 |
5340-00-NIB-0297 | 3 1/2" | 2 1/4" | Forged Steel | Hold Open | Pdq 7101 | 180° | Aluminum, Painted | 12" | €514.04 | |
 |
5340-00-NIB-0294 | 2" | 3/4" | Forged Steel | Hold Open | Pdq 5501 | 180° | Aluminum, Painted | 12" | €342.04 | |
 |
5340-00-NIB-0152 | 2" | 3/4" | Forged Steeland | Non Hold Open | Pdq 5501 | 180° | Aluminum, Painted | 12" | €213.63 | |
 |
5340-00-NIB-0153 | 3 1/2" | 2 1/4" | Forged Steel | Non Hold Open | Pdq 7101 | 180° | Aluminum, Painted | 12" | €314.98 |
