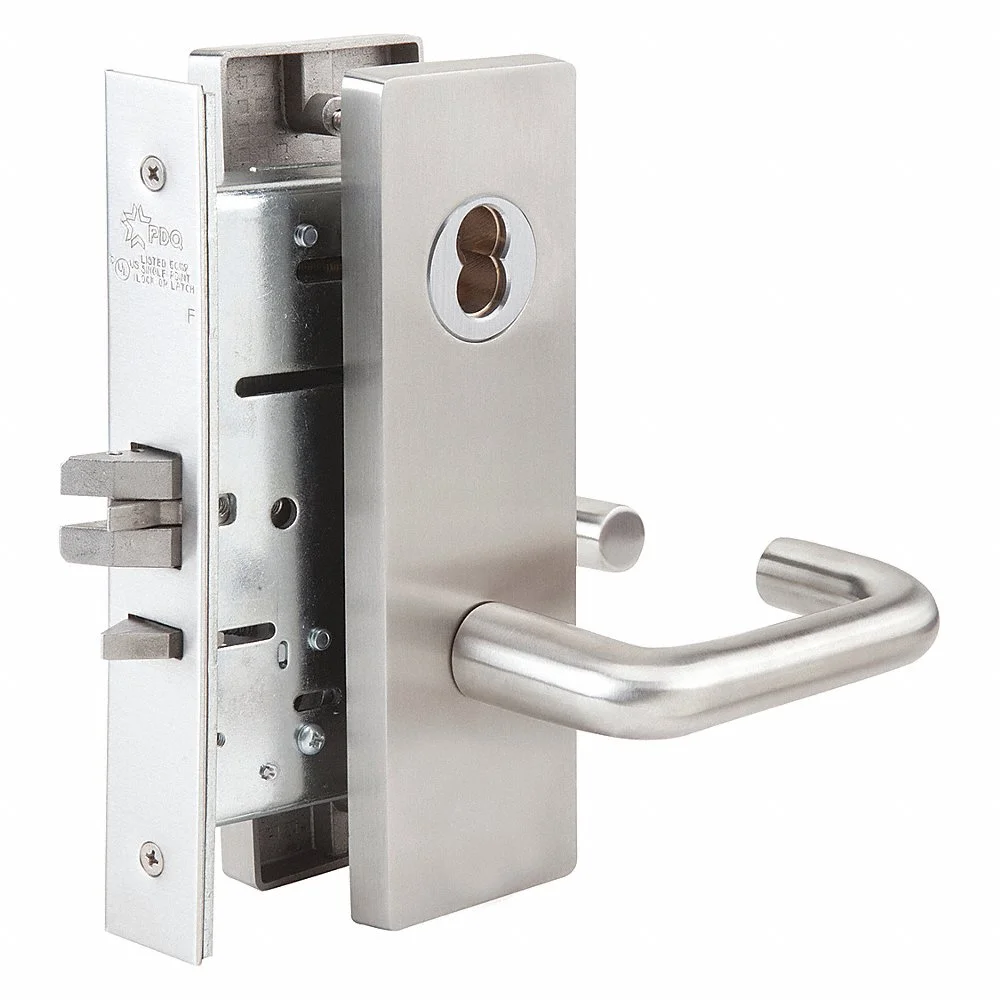

ABILITY ONE 5340-00-NIB-0283 Mortise Lockset, Grade 1, Mr126 Escutcheon, Satin Stainless Steel, Not Keyed
Item: CN7YPFModel: 5340-00-NIB-0283Cross Ref: 49Z703
7 In Stock
Ships within 2 days via
€414.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mortise Lockset |
| Ada Compliant | Yes |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Passage |
| Backset | 2 3/4" |
| Electrical/mechanical | Mechanical |
| Features | Reversible Anti-Friction Latch Rotates 180° |
| Finish | Satin Stainless Steel |
| Fire Rating | 3 hrs. |
| For Use With | Hollow Metal And Wood Doors |
| Function | Passage |
| General Lockset Function | Passage Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Type | Lever |
| Included | Hardware |
| Included Core | No |
| Inside Locking Access | Not Lockable |
| Key Type | Not Keyed |
| Keyway Type | None |
| Knob/handle Material | Stainless Steel |
| Length | 4 7/8" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Institutional, Schools |
| Lock Assembly Type | Mortise |
| Lockset Function Ansi Code | F01 |
| Lockset Handle Type | Lever |
| Lockset Style | MR126 Dallas |
| Lockset Type | Mechanical |
| Max. Door Thickness | 1 3/4" |
| Min. Door Thickness | 1 3/4" |
| Mortise/cylindrical | Mortise |
| No. Of Keys | 0 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 1 |
| Properties | Corrosion Resistant |
| Strike Plate Height | 4 1/8" |
| Strike Plate Width | 1 1/4" |
| Strike Type | Curved Lip |
| Style | MR126 Escutcheon |
| Trim Plate Shape | Rectangular |
| Ul Fire Rating | UL10C |
| Visual Indicator Message | No Message |
| Width | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 2.97 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Finish | Required Door Thickness | Max. Door Thickness | Strike Plate Height | Knob/handle Material | Style | Visual Indicator Message | Handle Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5340-00-NIB-0252 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT115 Boston | No Message | Lever | €313.31 | |
 |
5340-00-NIB-0253 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT115 Philadelphia | No Message | Lever | €359.90 | |
|
5340-00-NIB-0251 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT116 Philadelphia | No Message | Lever | €312.51 | |
 |
5340-00-NIB-0240 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT124 Boston | No Message | Lever | €230.27 | |
 |
5340-00-NIB-0242 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT128 Boston | No Message | Lever | €360.74 | |
 |
5340-00-NIB-0243 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT128 Philadelphia | No Message | Lever | €363.82 | |
 |
5340-00-NIB-0262 | Satin Chrome | 1 3/4" to 2 1/4" | - | - | - | GT135 Boston | No Message | Lever | €461.23 |
