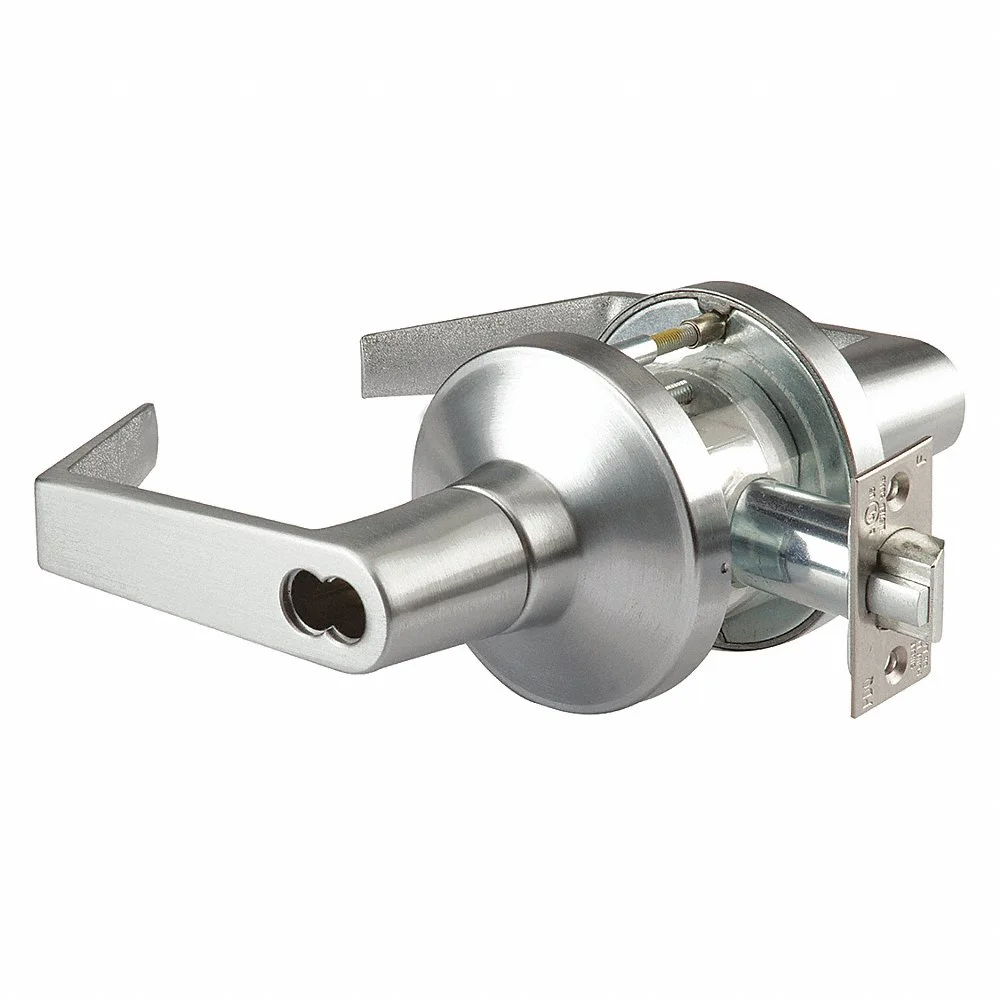

ABILITY ONE 5340-00-NIB-0135 Lever Lockset, Grade 1, Satin Chrome, Not Keyed
Item: CN7YNRModel: 5340-00-NIB-0135Cross Ref: 49Z670
7 In Stock
Ships within 2 days via
€360.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lever Lockset |
| Ada Compliant | Yes |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Classroom |
| Backset | 2 3/4" |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| Electrical/mechanical | Mechanical |
| Features | 25 Yr Limited Warranty |
| Finish | Satin Chrome |
| Fire Rating | 3 hrs. |
| Function | Classroom |
| General Lockset Function | Classroom Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Material | Steel, Zinc Die Cast |
| Handle Type | Lever |
| Included | Hardware |
| Included Core | No |
| Inside Locking Access | Not Lockable |
| Key Type | Not Keyed |
| Keyway Type | None |
| Knob/handle Material | Die Cast Zinc |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Commercial, Industrial, Institutional, Multiple Family Residential |
| Lock Assembly Type | Cylindrical |
| Lockset Function Ansi Code | F110 |
| Lockset Handle Type | Lever |
| Lockset Performance Strength | Extra Heavy Duty |
| Lockset Style | GT135 Philadelphia |
| Lockset Type | Mechanical |
| Max. Door Thickness | 2 1/4" |
| Min. Door Thickness | 1 3/4" |
| Mortise/cylindrical | Cylindrical |
| No. Of Keys | 0 |
| No. Of Pins | 6, 7 |
| Outside Locking Access | Keyway |
| Performance Duty Rating | 1 |
| Pins | 7 |
| Required Door Thickness | 1 3/4" to 2 1/4" |
| Strike Dim. | 1 1/4" x 4 7/8" |
| Strike Plate Height | 4 7/8" |
| Strike Plate Width | 1 1/4" |
| Strike Type | ASA Strike |
| Style | GT135 Philadelphia |
| Trim Plate Shape | Round |
| Ul Fire Rating | UL10C |
| Visual Indicator Message | No Message |
Shipping Info:
| Ship weight (kg) | 2.37 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Finish | Required Door Thickness | Max. Door Thickness | Strike Plate Height | Knob/handle Material | Style | Visual Indicator Message | Handle Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5340-00-NIB-0252 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT115 Boston | No Message | Lever | €463.32 | |
 |
5340-00-NIB-0253 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT115 Philadelphia | No Message | Lever | €462.74 | |
|
5340-00-NIB-0251 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT116 Philadelphia | No Message | Lever | €462.74 | |
 |
5340-00-NIB-0240 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT124 Boston | No Message | Lever | €340.97 | |
 |
5340-00-NIB-0242 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT128 Boston | No Message | Lever | €534.14 | |
 |
5340-00-NIB-0243 | Satin Chrome | 1 3/4" to 2 1/4" | 2 1/4" | 4 7/8" | Die Cast Zinc | GT128 Philadelphia | No Message | Lever | €538.70 | |
 |
5340-00-NIB-0262 | Satin Chrome | 1 3/4" to 2 1/4" | - | - | - | GT135 Boston | No Message | Lever | €720.91 |
