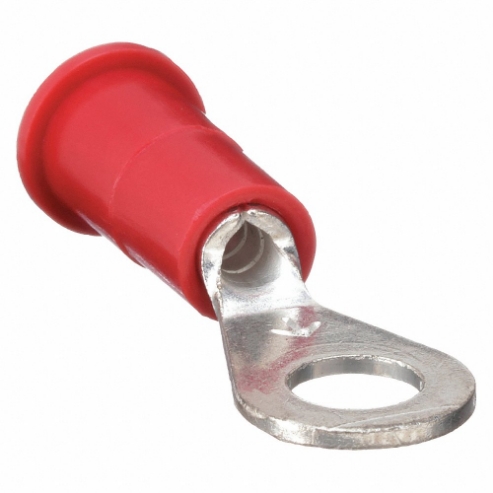

3M 7000133680 80611603046 / 60043 / RV18-10Q Ring Terminal, Red, #10 Stud Size, 22 AWG to 18 AWG Wire Size Range
Item: AF8EAQModel: 7000133680Cross Ref: 25CA01 / 80611603046 / 60043 / RV18-10Q
7 In Stock
Ships within 2 days via
10.00% off
€19.57 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ring Terminal |
| Connection Material | Copper |
| Contact Material | Copper |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 1000V |
| Maximum Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Overall Length | 0.93" |
| Seam | Butted |
| Seam Style | Butted |
| Stud Size | #10 |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Tongue Width | 0.31" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 2.36 |
| Ship width (cm) | 0.64 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Model | Insulation Color | Stud Size | Overall Length | Tongue Width | Insulation Material | Max. Voltage | Max. Temp. | Contact Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7000133671 | Yellow | #10 | 1.03" | 0.38" | Vinyl | 1000V | 221°F | Copper | 25 | €27.78 | |
| 7000133672 | Yellow | 1/4" | 1.26" | 0.53" | Vinyl | 1000V | 221°F | Copper | 25 | €28.27 | |
| 7000133673 | Yellow | 3/8" | 1.26" | 0.53" | Vinyl | 1000V | 221°F | Copper | 25 | €27.98 | |
| 7000133674 | Yellow | 5/16" | 1.26" | 0.54" | Vinyl | 1000V | 221°F | Copper | 25 | €28.27 | |
| 7000133675 | Yellow | #8 | 21/25" | - | Vinyl | 1000V | 221°F | - | 25 | €27.76 | |
| 7000133676 | Blue | #10 | 0.9" | 0.33" | Vinyl | 1000V | 221°F | Copper | 25 | €20.23 | |
| 7000133677 | Blue | 1/4" | 1 2/25" | 0.47" | Vinyl | 1000V | 221°F | Copper | 25 | €19.57 |
