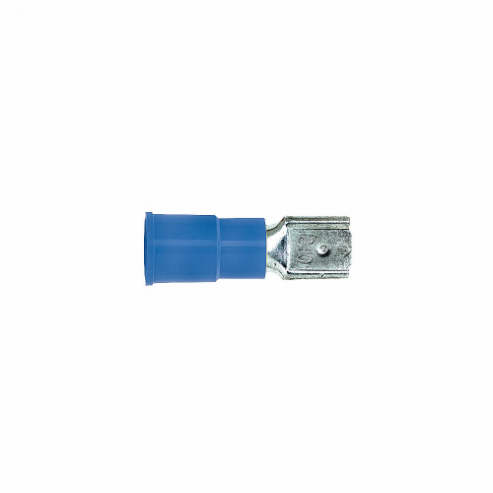

3M 7100033017 80611458151 / 58670 / MVU14-187DFX Female Disconnect, Blue, Partial, 221 Degrees F, 0.020 Inch x 0.187 Inch Tab Size
Item: AA8TMPModel: 7100033017Cross Ref: 1A093 / 80611458151 / 58670 / MVU14-187DFX
7 In Stock
Ships within 2 days via
10.00% off
€199.00 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Disconnect |
| Barrel Inside Dia. | 0.085" |
| Color Code | Blue |
| Connection Material | Tin Plated Copper |
| Connection Type | Crimp |
| Connection Width | 0.187" |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation | Partial |
| Insulation Color | Blue |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Male Tab Width (w') | 0.187" |
| Mates With Female Width | 0.187" |
| Mates With Male Tab Width (w') | 0.187" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Conductor Size | 14 AWG |
| Maximum Insulation Outer Diameter | 0.145" |
| Min. Conductor Size | 16 AWG |
| Overall Length | 0.78" |
| Pad Width | 0.187" |
| Seam | Butted |
| Solution For | Wireless Network Infrastructure Accessories |
| Tab Size | 0.02" x 0.187" |
| Tab Width | 1/4" |
| Terminal Style | Standard |
| Terminal Type | Female Disconnect |
| Wire Range | 16 AWG to 14 AWG |
| Wire Size | 16 AWG to 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 1.98 |
| Ship width (cm) | 6.6 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Product | Model | Wire Size | Insulation Color | Barrel Inside Dia. | Tab Size | Overall Length | Color Code | Wire Range | Insulation Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7010398230 | 22 AWG to 18 AWG | Red | 0.085" | 0.02" x 0.187" | 0.78" | Red | 22 AWG to 18 AWG | Vinyl | 100 | €221.11 | |
 |

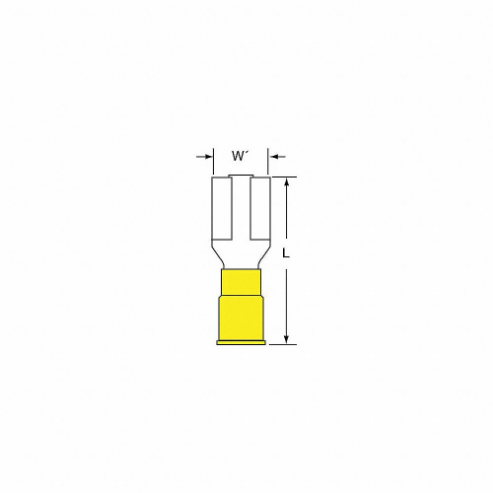

7100024644 | 12 AWG to 10 AWG | Yellow | 0.175" | 0.05" x 0.375" | 1.23" | Yellow | 12 AWG to 10 AWG | Vinyl | 500 | €551.67 | |
|
7000133285 | 16 AWG to 14 AWG | Blue | 2/25" | 0.032" x 0.25" | 0.87" | Blue | - | Vinyl | 100 | €212.39 |
