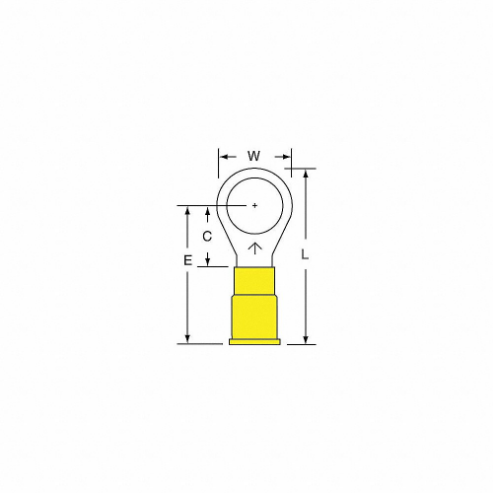

3M 7100164086 80610048623 / 01928 / MV10-38R/SK Ring Terminal, Yellow, 3/8 Inch Stud Size, 12 AWG to 10 AWG Wire Size Range
Item: AC2FNKModel: 7100164086Cross Ref: 2JMF5 / 80610048623 / 01928 / MV10-38R/SK
7 In Stock
Ships within 2 days via
10.00% off
€444.28 /pkg. of 500
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ring Terminal |
| Color Code | Yellow |
| Connection Material | Copper |
| Connection Orientation | Straight |
| Connection Type | Crimp |
| Contact Material | Copper |
| Contact Plating | Tin |
| Insulated | Insulated Barrel |
| Insulation Color | Yellow |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Overall Length | 1.26" |
| Seam | Brazed |
| Seam Style | Brazed |
| Stud Size | 3/8" |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Type | Standard |
| Tongue Width | 0.54" |
Shipping Info:
| Ship weight (kg) | 1.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.2 |
| Ship width (cm) | 2.54 |
| HS code | 8536904000 |
| Country of Origin | US |
Product Variants
| Product | Model | Insulation Color | Stud Size | Overall Length | Color Code | Tongue Width | Insulation Material | Max. Voltage | Max. Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7100040995 | Red | #10 | 0.93" | Red | 0.31" | Vinyl | 600V | 221°F | 1000 | €713.47 | |
 |
7100084105 | Blue | #6 | 4/5" | Blue | 1/4" | Vinyl | 600V | 221°F | 1000 | €803.40 | |
 |
7100163997 | Blue | #8 | 0.93" | Blue | - | Vinyl | 600V | 221°F | 1000 | €734.43 | |
 |
7000031422 | Yellow | #10 | 1.03" | Yellow | - | Vinyl | 600V | 221°F | 500 | €507.81 | |
 |
7100041010 | Red | #6 | 4/5" | Red | 1/4" | Vinyl | 600V | 221°F | 1000 | €713.47 | |
 |

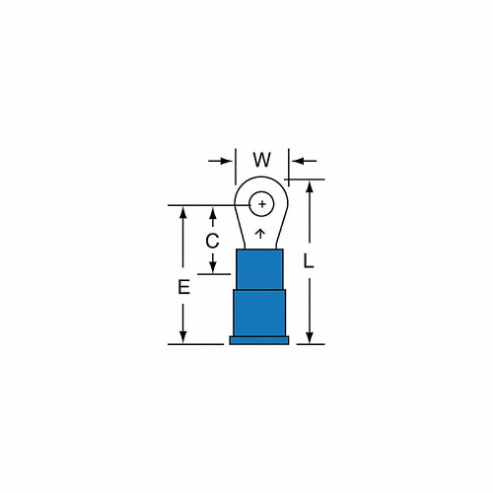

7100163996 | Blue | #4 | 4/5" | Blue | 1/4" | Vinyl | 600V | 221°F | 1000 | €780.87 | |
 |

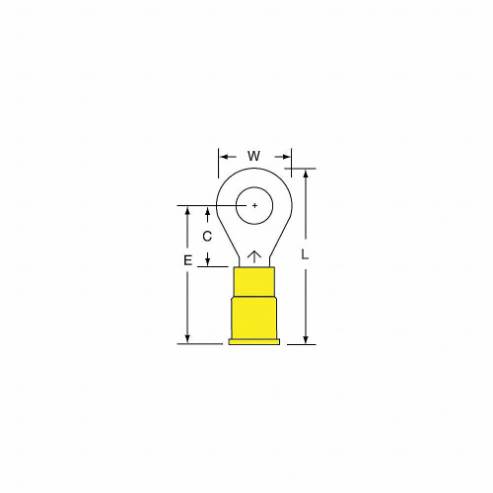

7100007053 | Yellow | 1/4" | 1.26" | Yellow | 0.53" | Vinyl | 600V | 221°F | 500 | €539.11 |
